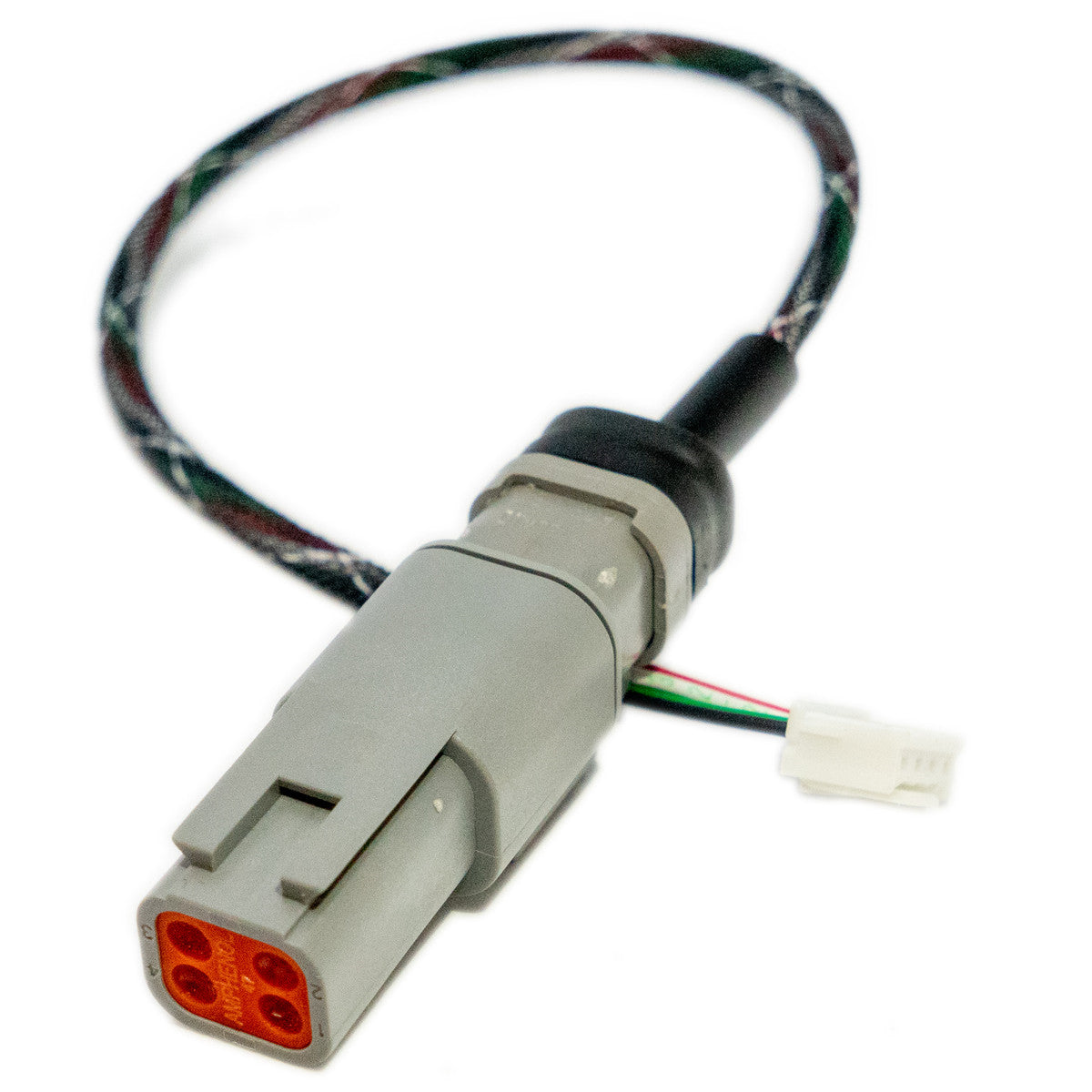

Link CANJST4 - CAN Connection Cable for Plugin ECU's (4pin) - 101-0198
Link CANJST4 - CAN Connection Cable for Plugin ECU's (4pin) - 101-0198
- THIS IS A SPECIAL ORDER ITEM. Once you complete your order, we will then order it from the supplier. If you are urgently needing this item contact us for an accurate ETA from our supplier before purchasing!
Couldn't load pickup availability
Required to add CAN communications & power to recently released G4X Plugin ECU’s which have the new 4 Pin powered CAN connector (not the older 5pin CAN connector). Plugs directly into the socket on the ECU PCB, provides CAN and a protected 12V supply to allow easy connection of CAN accessories.
Suitable for powering a CAN Lambda, Dash, EGT amplifier or other similar low powered CAN devices which have a total continuous current draw of <3A.
Compatible PlugIns:
214-4100 - PlugIn ECU G4X Nissan GTR with E-Throttle
217-4100 - PlugIn ECU G4X Nissan S15 with E-Throttle
233-4000 - PlugIn ECU G4X Honda S2000 AP1
228-4000 - PlugIn ECU G4X Subaru WRX V5-6
237-4000 - PlugIn ECU G4X Honda HC20X Type-R DC5/RSX
238-4000 - Plugin ECU G4X Subaru WRX11
239-4000 - Plugin ECU G4X MX5NB2X
240-4000 - Plugin ECU G4X MX5NB1X
243-4000 - Plugin ECU G4X WRX11 USDM
241-4200 - G5 ECU Plug-In - Toyota GT86/Subaru BRZ LHD
241-4000 - G5 ECU Plug-In - Toyota GT86/Subaru BRZ RHD
Specs
DTM4 Male to JST4. 12V and GND Terminated to JST4. Length 300mm
DTM4 Pin Out
Pin 4: CAN H
Pin 3: CAN L
Pin 2: Ground
Pin 1: 12V
