TCC04 4 Channel EGT to CAN Module - 101-0384

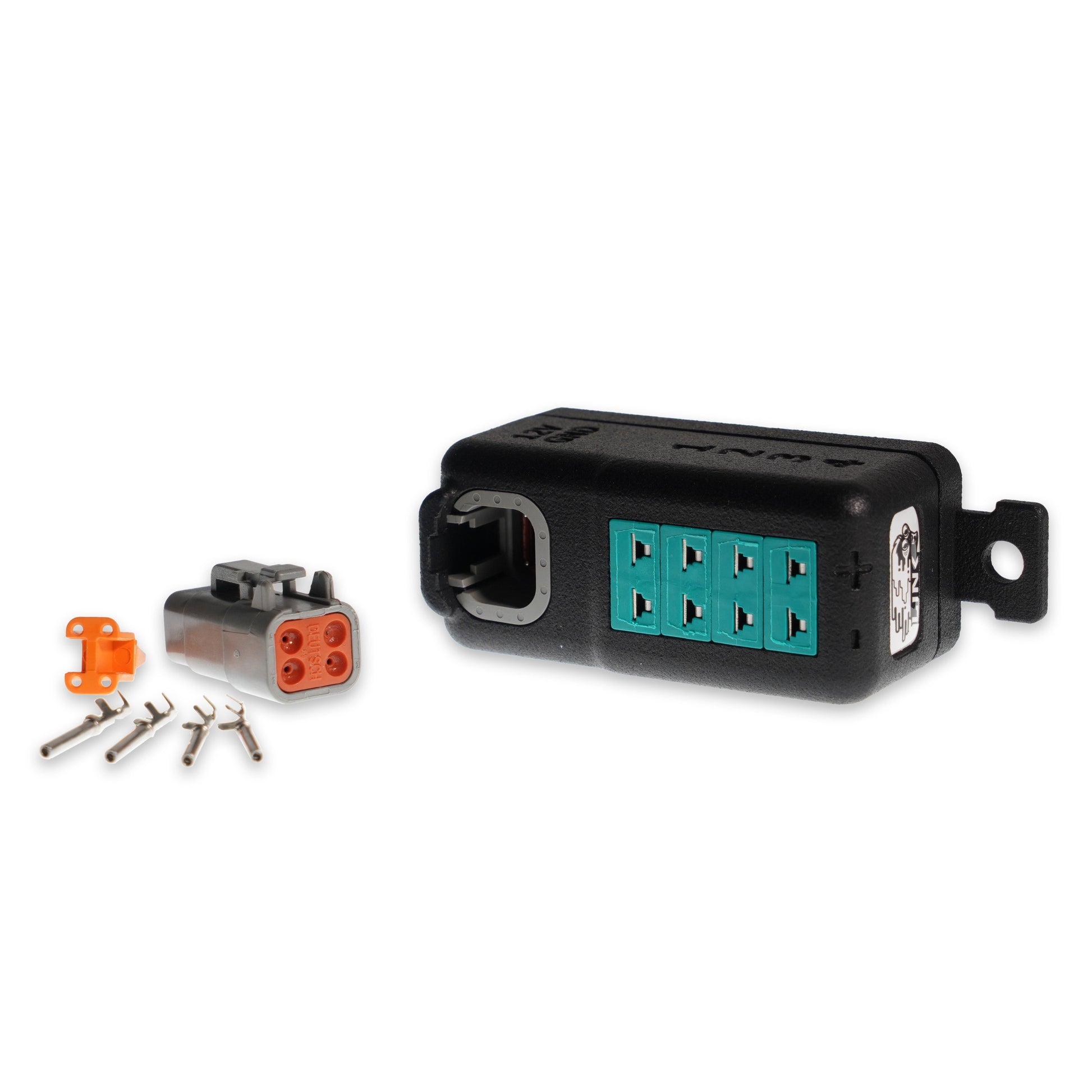

Link TCC04 4 Channel EGT to CAN module, powered by CANchecked The TCC04 EGT to CAN module allows you to connect up to four Type-K thermocouples and send the values via CAN bus and/or monitor them directly on your wireless enabled device. Type-K thermocouples are suitable for various applications such as measuring exhaust gas temperature (EGT), temperatures before/after the intercooler, turbo housings, cylinder head temperatures, water temperature, oil temperature and more. All measurements are cold junction compensated with a measuring range of 0 to 1250°C in 0.25°C resolution (14bit). The TCC04 feature a four-pin DTM connector for CAN & power that is pin compatible with Links standard CAN pinout and CAN cables range. CAN 2.0A/B standard is supported with flexible configuration. Wireless connectivity allows you to configure and update your module via smartphone or PC and query the current temperature and thermocouple status. Features: - 4 x cold junction compensated type-K inputs - CAN Bus connection to ECU (Pre-Configured for Link ECU) - Measuring range from 0 to 1250°C (32 to 2282°F) with 0.25°C resolution - Detection of short circuit to ground or if no type-K is connected - Standard mini k thermocouple connector - Full configuration and monitoring over wireless - Adjustable sample frequency up to 100Hz Box Contents: 1 x CAN EGT Module 1 x DTM4 Mating Connector Kit 2 x Link Stickers Set-Up and Installation Guide
