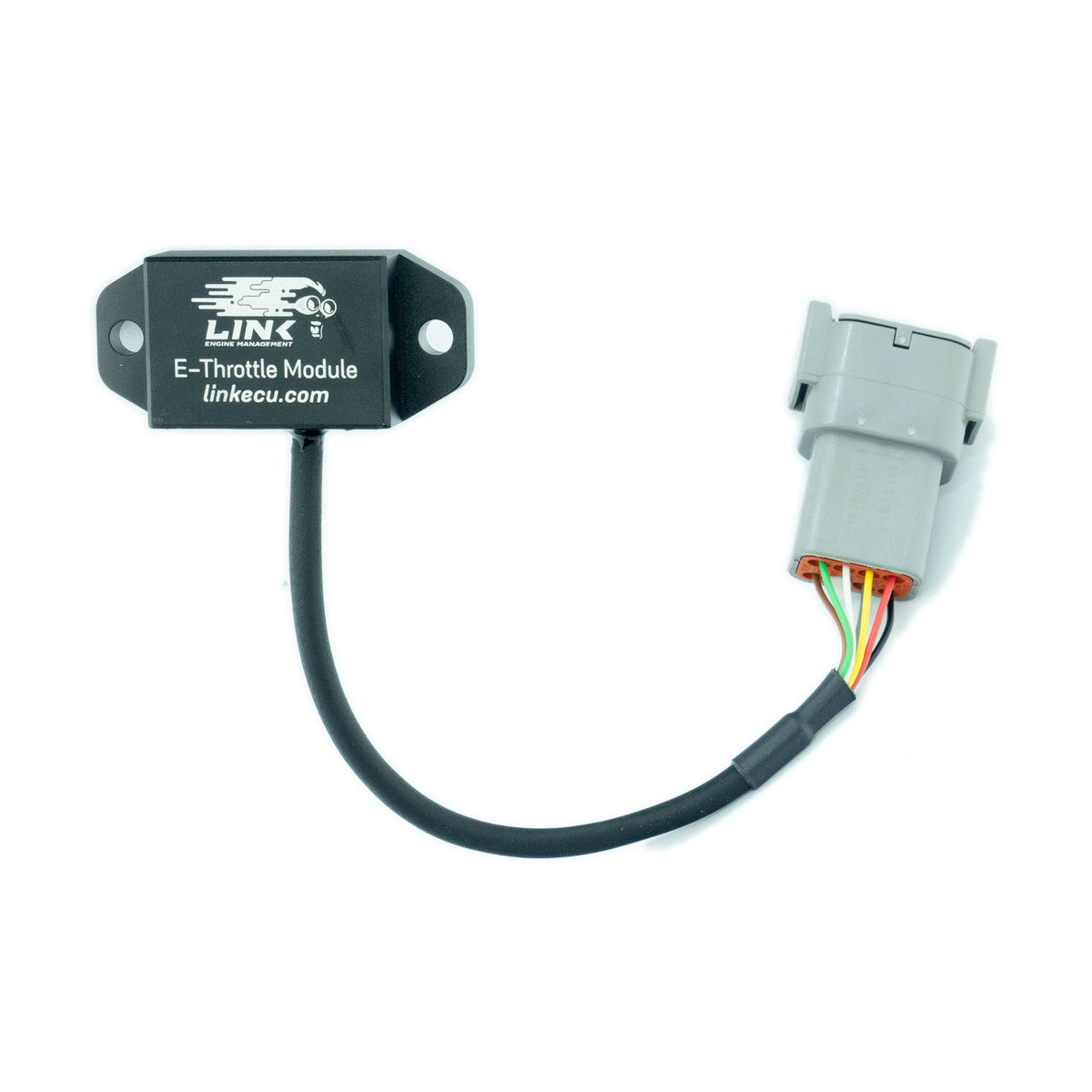

Link E-throttle G4 - #G4RET - 115-1000
Link E-throttle G4 - #G4RET - 115-1000
Regular price
$569.25 NZD
Regular price
Sale price
$569.25 NZD
Taxes included.
Shipping calculated at checkout.
- THIS IS A SPECIAL ORDER ITEM. Once you complete your order, we will then order it from the supplier. If you are urgently needing this item contact us for an accurate ETA from our supplier before purchasing!
Couldn't load pickup availability
Link's new G4+ external E-throttle (Drive by Wire) module works with Link's G4+ Storm, Kurofune and PlugIN ECUs to give you full control of your throttle setup, allowing a faster more precise throttle response.
Replace your old mechanical throttle linkage with an advanced electronic throttle module. E-throttle is faster responding, requires less maintenance, gives you better fuel economy and lowers emissions.
The Remote E-Throttle module is commonly used with the Storm and Kurofune ECU’s.
Wiring Diagram (Example)
- The external electronic throttle control module can be wired as in output interface for ECUs that do not support electronic throttle control internally.
- The module requires three auxiliary outputs from the ECU. Signals '1' and '2' control the output drive signals from the module and 'Enable' signal disconnects power from the internal electronic throttle drive.
- Signal 1 must be connected to the first Auxiliary in the selected pair.
- Signal 2 must be connected to the second Auxiliary in the selected pair.
- Enable must be connected to the selected E-Throttle Relay Auxiliary.
- The power for the device needs to come from the main relay. Power should ONLY be present at key on
