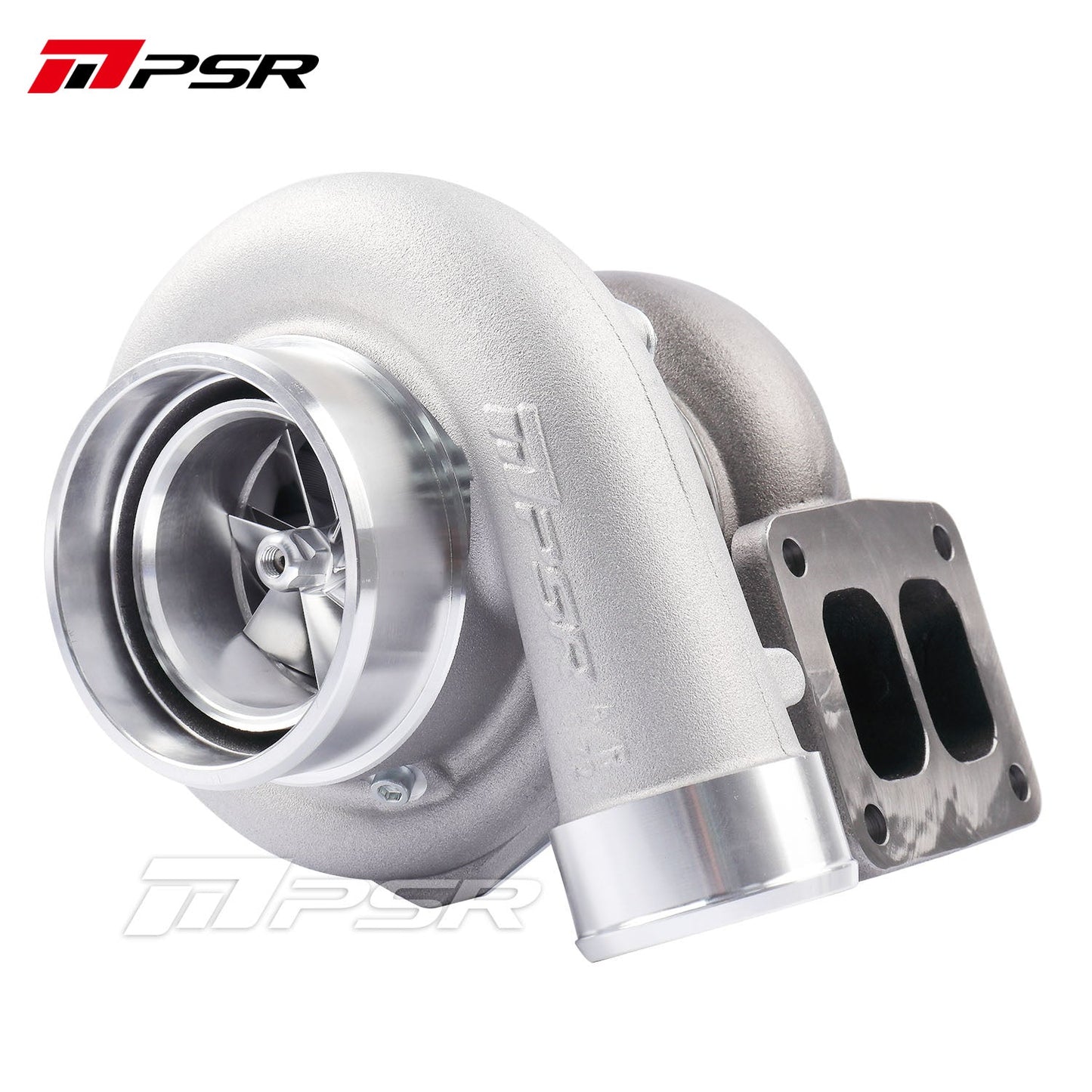

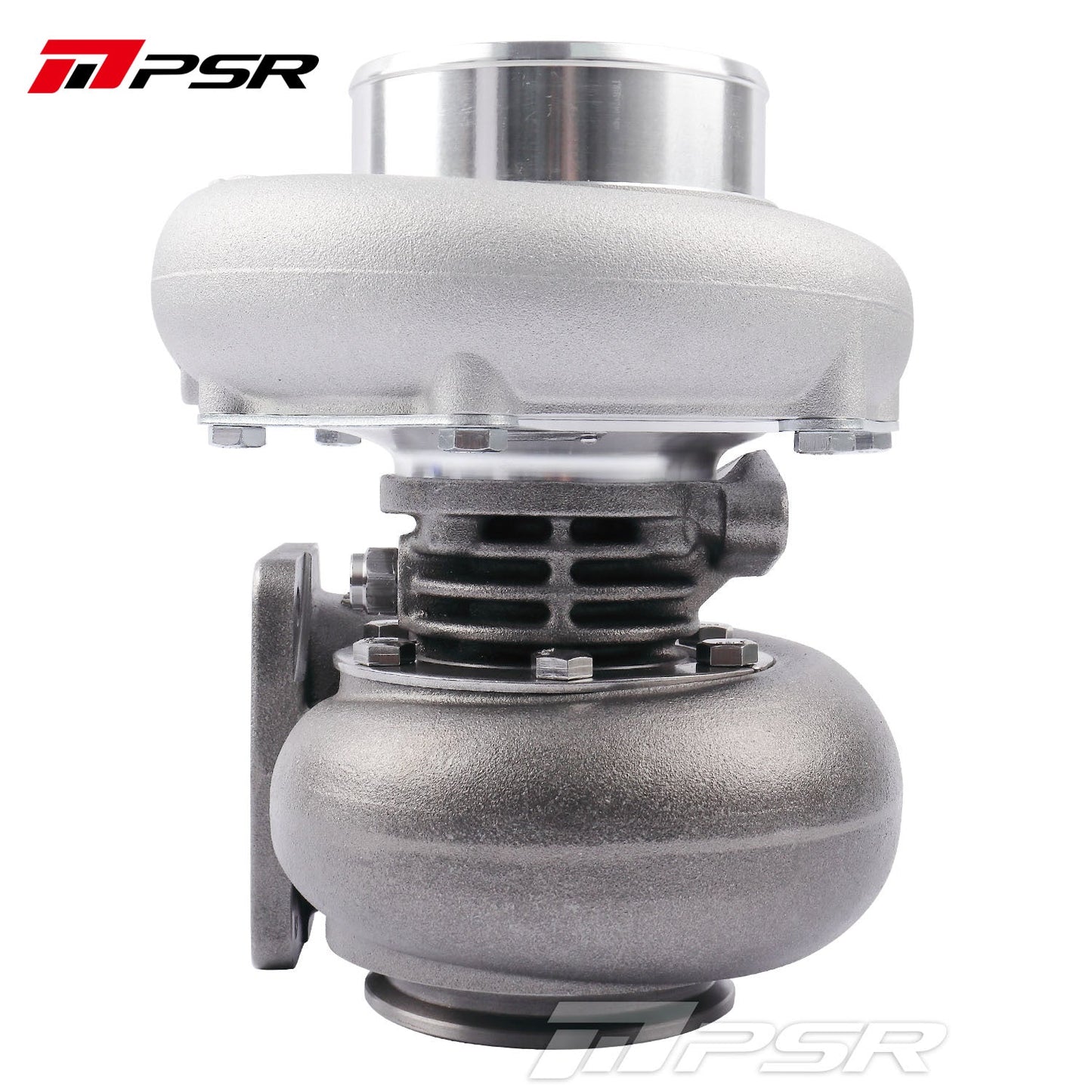

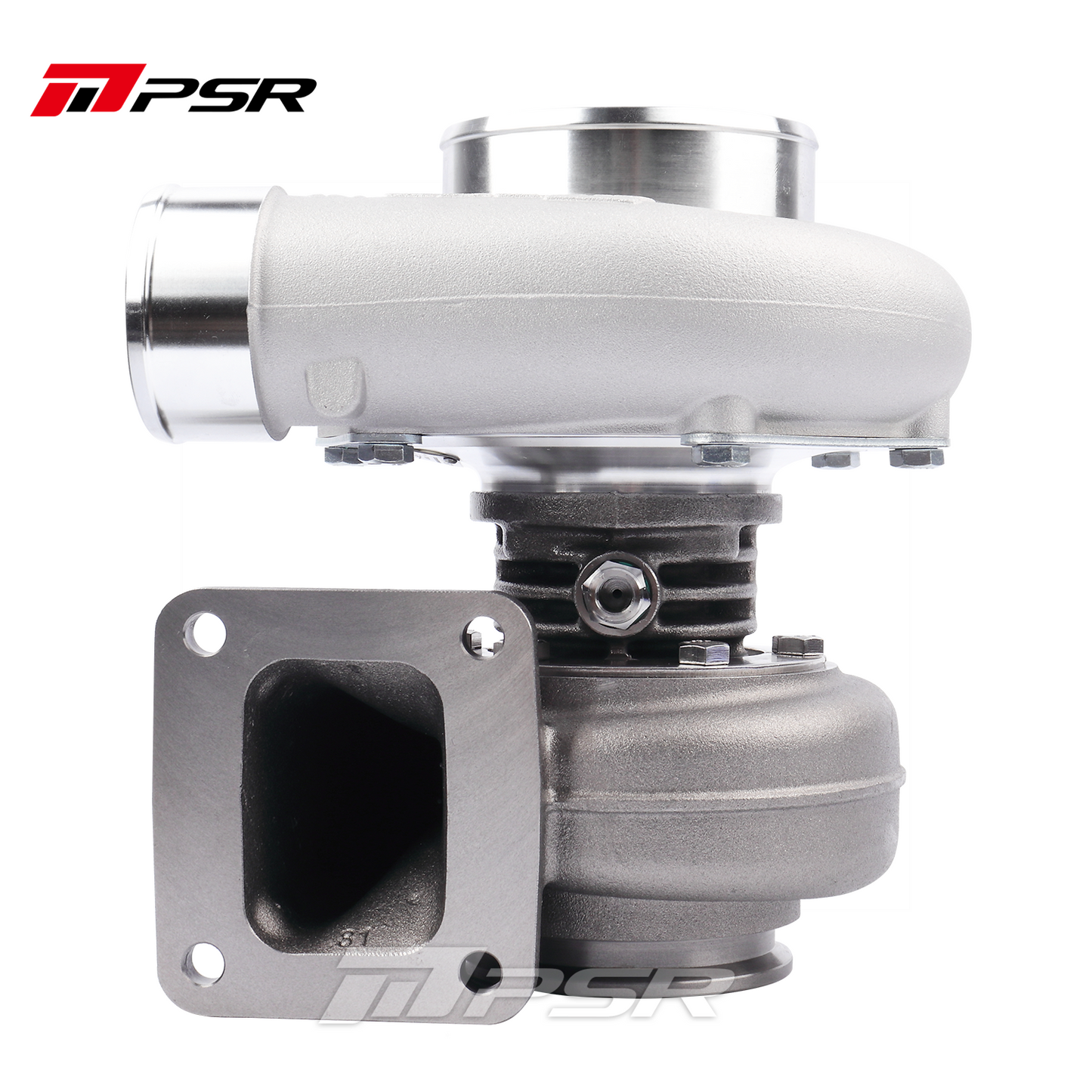

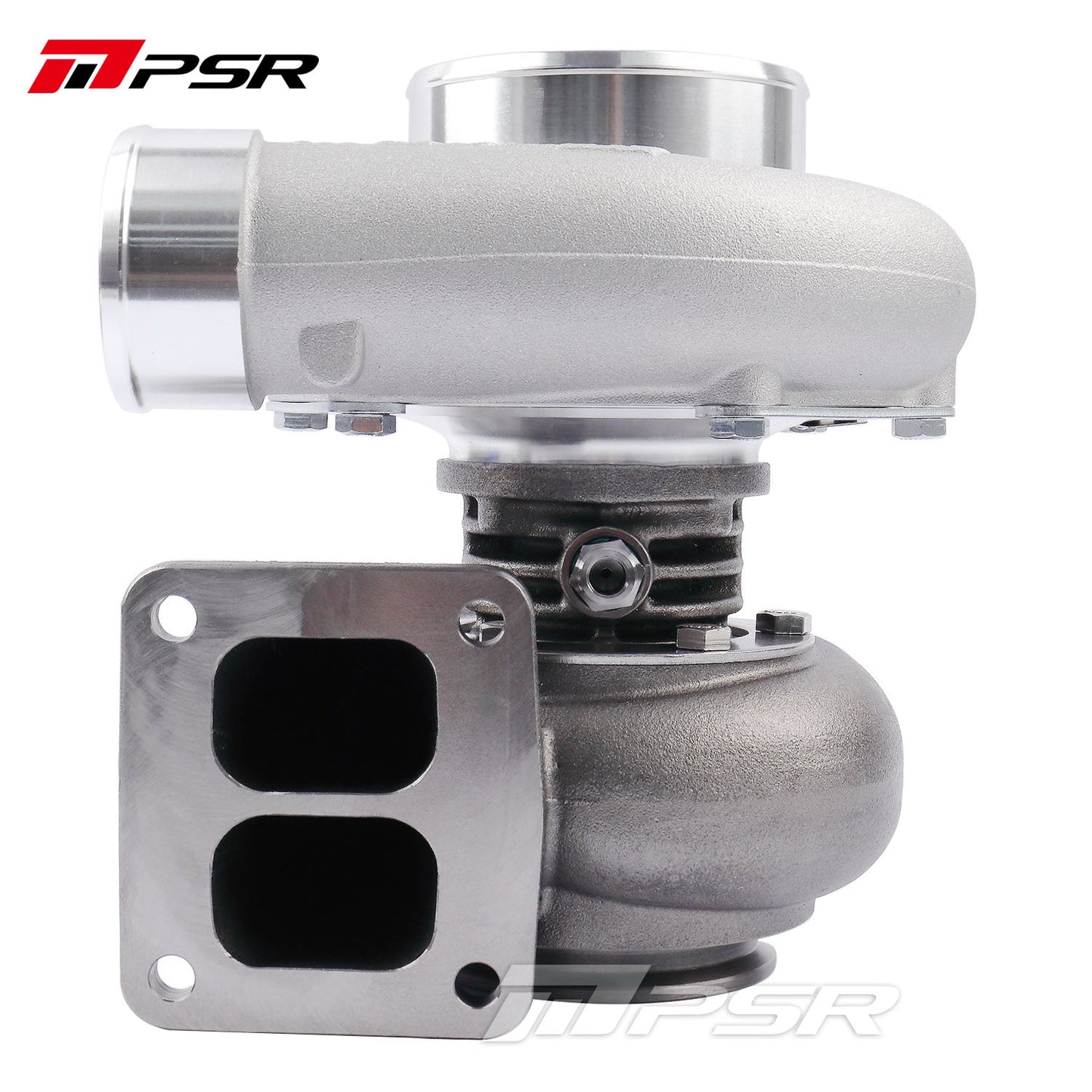

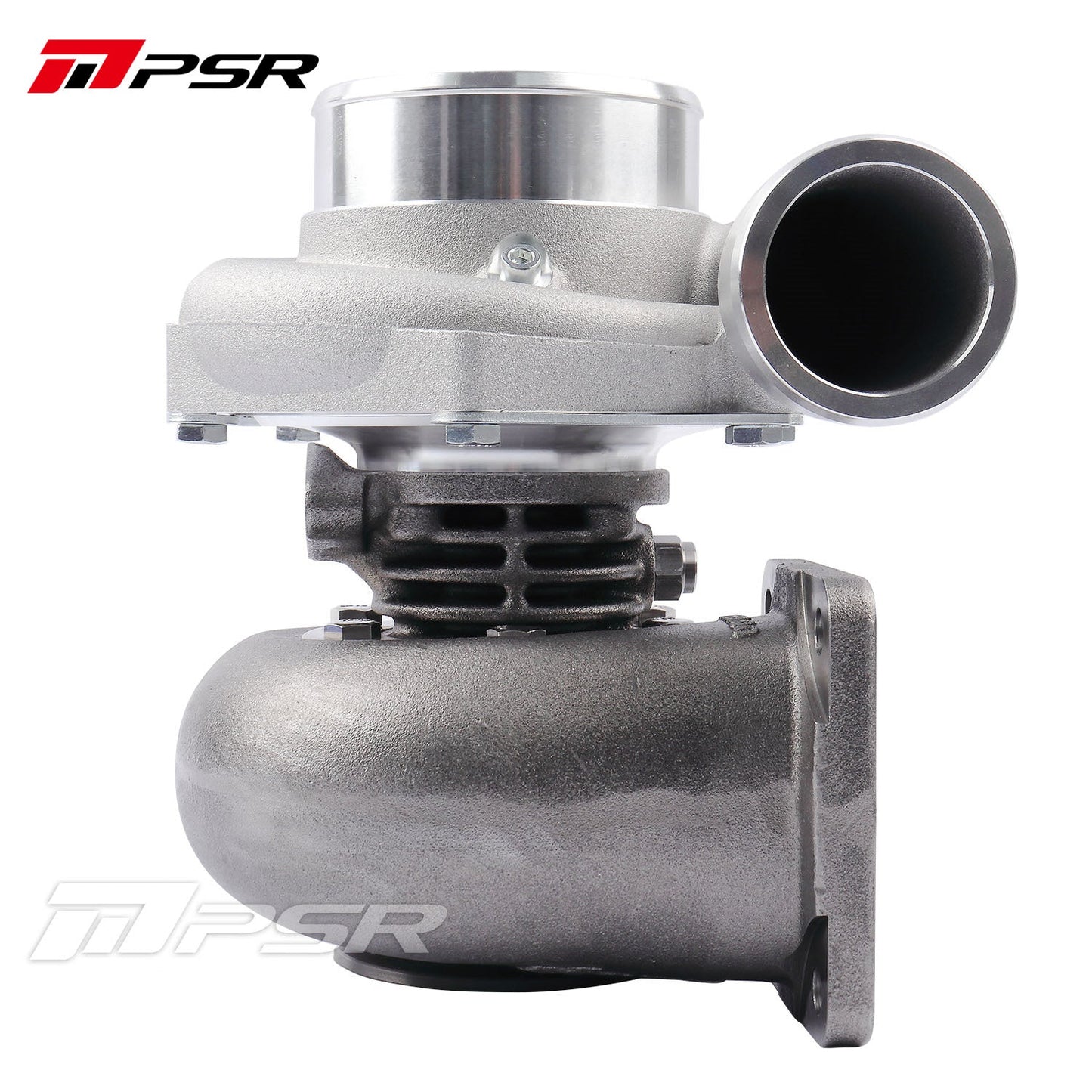

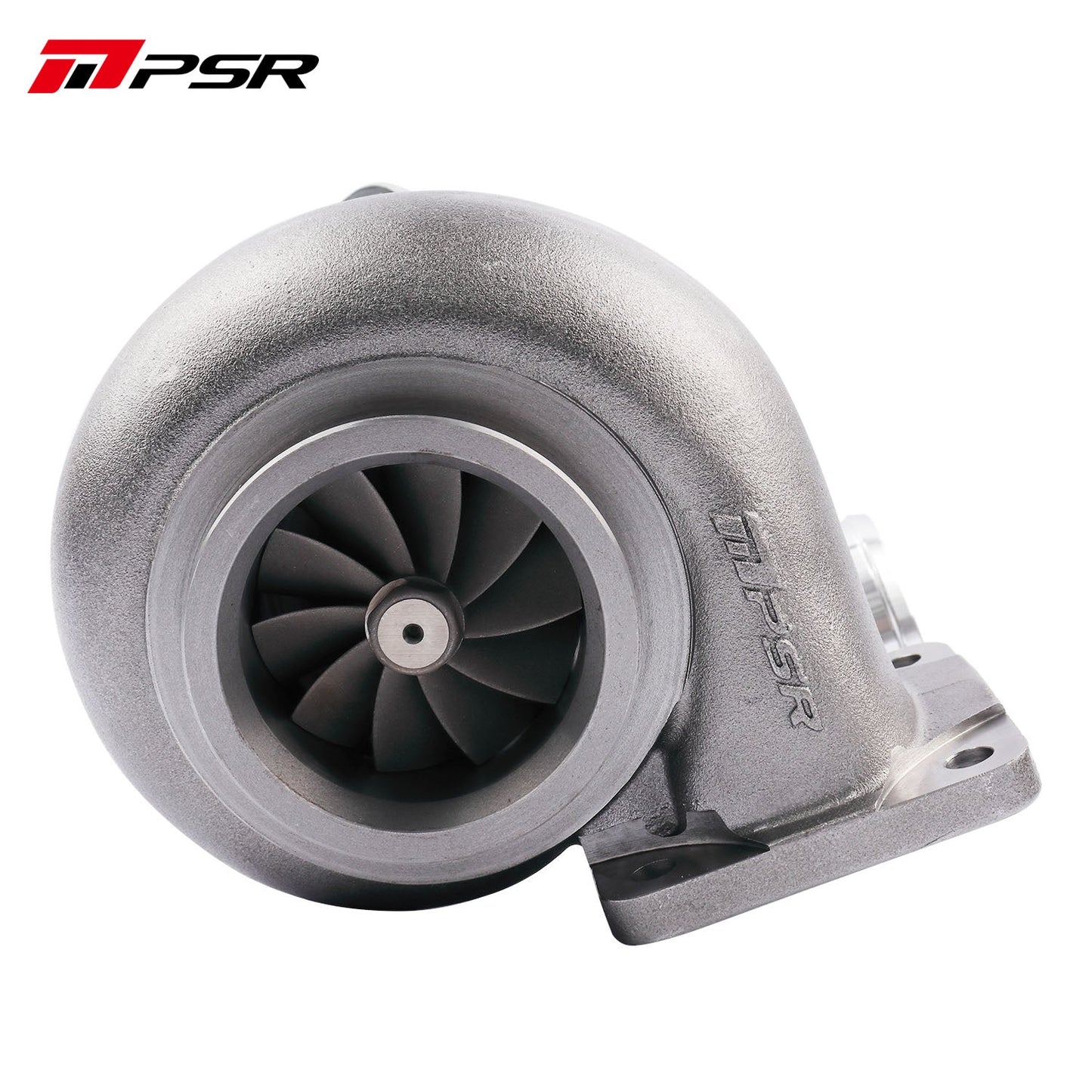

6870E Ball Bearing Turbo UP to 1100HP

6870E Ball Bearing Turbo UP to 1100HP

$2,137.25 NZD
$2,137.25 NZD
Sale Sold out
Taxes included. Shipping calculated at checkout.
  • THIS IS A SPECIAL ORDER ITEM. Once you complete your order, we will then order it from the supplier. If you are urgently needing this item contact us for an accurate ETA from our supplier before purchasing!

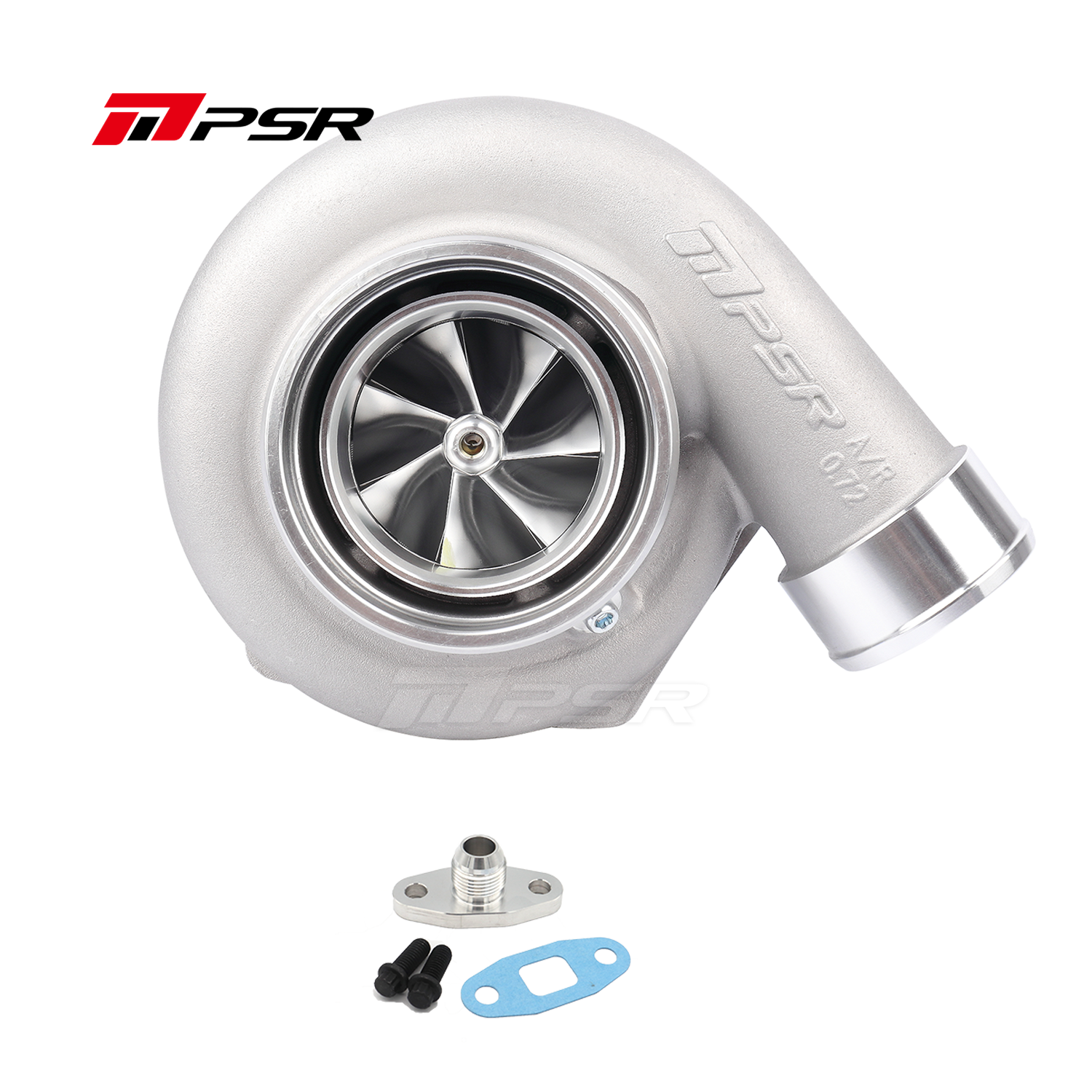

Compressor Housing Option
Turbine Housing Option
  • 2Ball bearing system provides optimal turbo response & better durability by reducing the shaft-motion
  • Billet Compressor Wheel with Extended Tapered Tip Technology
  • Inconel 713c 10 Blade Turbine Wheel
  • V-Band Flange kit for the exhaust housing included
  • Max Engine Horsepower: 1100

Description

  • Billet Compressor Wheel: 68/92.46mm, 7+7 Blade

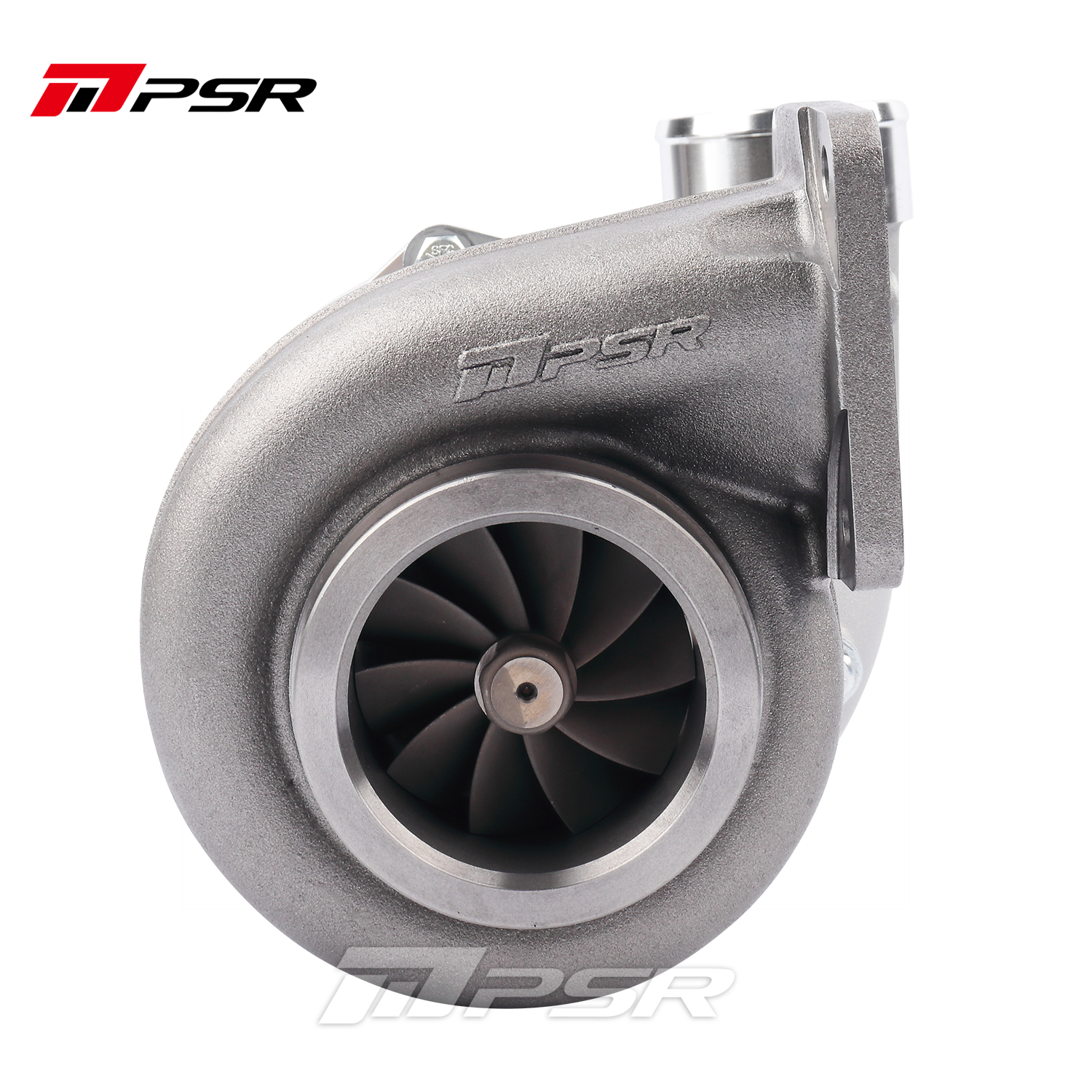

  • Turbine Wheel: 78.8 / 70.2mm, 10 Blade
  • Bearing System: Dual Ball Bearing (provides optimal turbo response & better durability by reducing the shaft-motion)
  • Compressor Cover Inlet/Outlet: 4.0” / 2.5” Hose

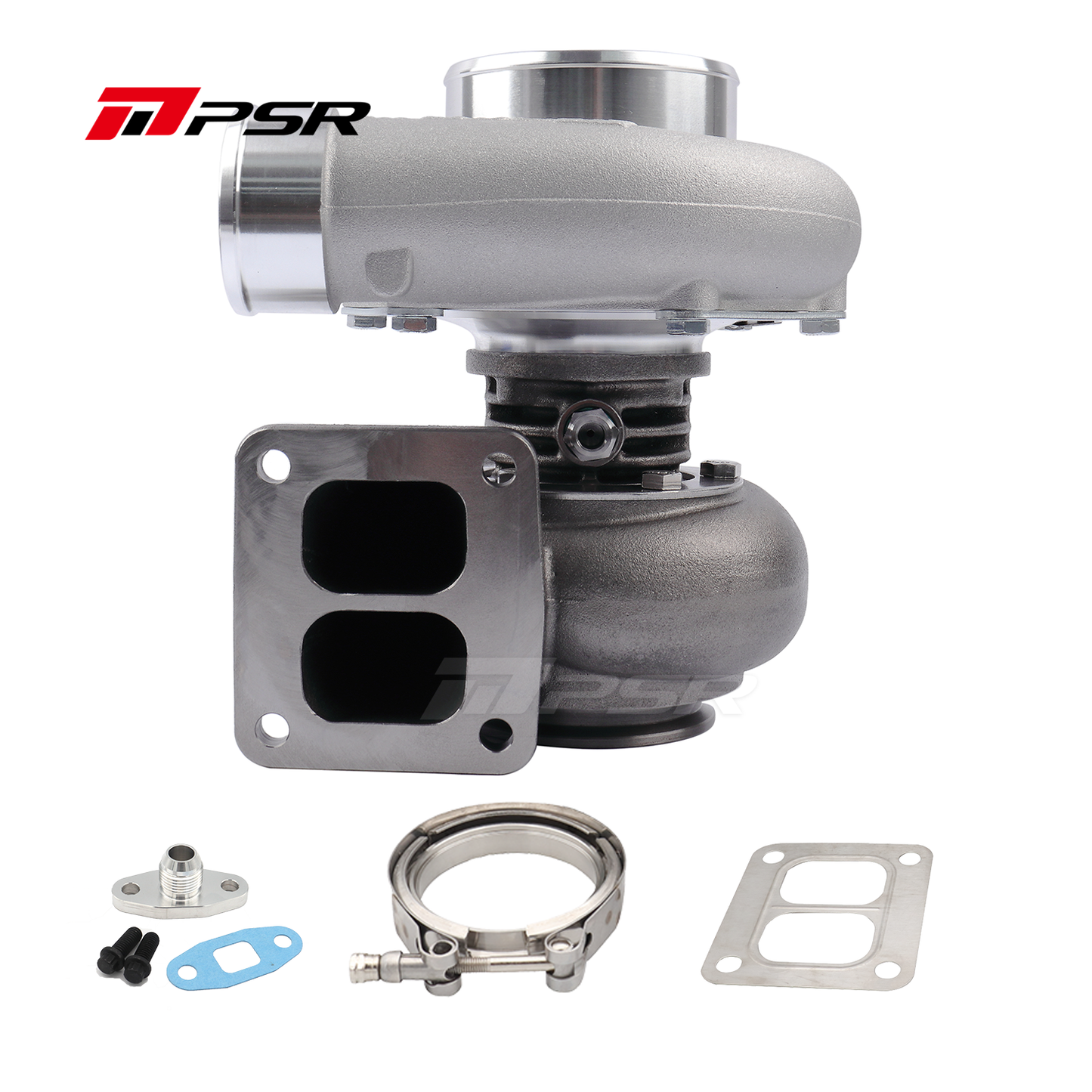

  • Turbine Housing: T4 Divided 1.0A/R, T4 open 0.81A/R(Coming Soon)
  • The internal oil feed port is 0.9mm(Oil restrictor is no needed)
  • Oil feed fitting: 1/8-27 NPSF (Drawing 1)

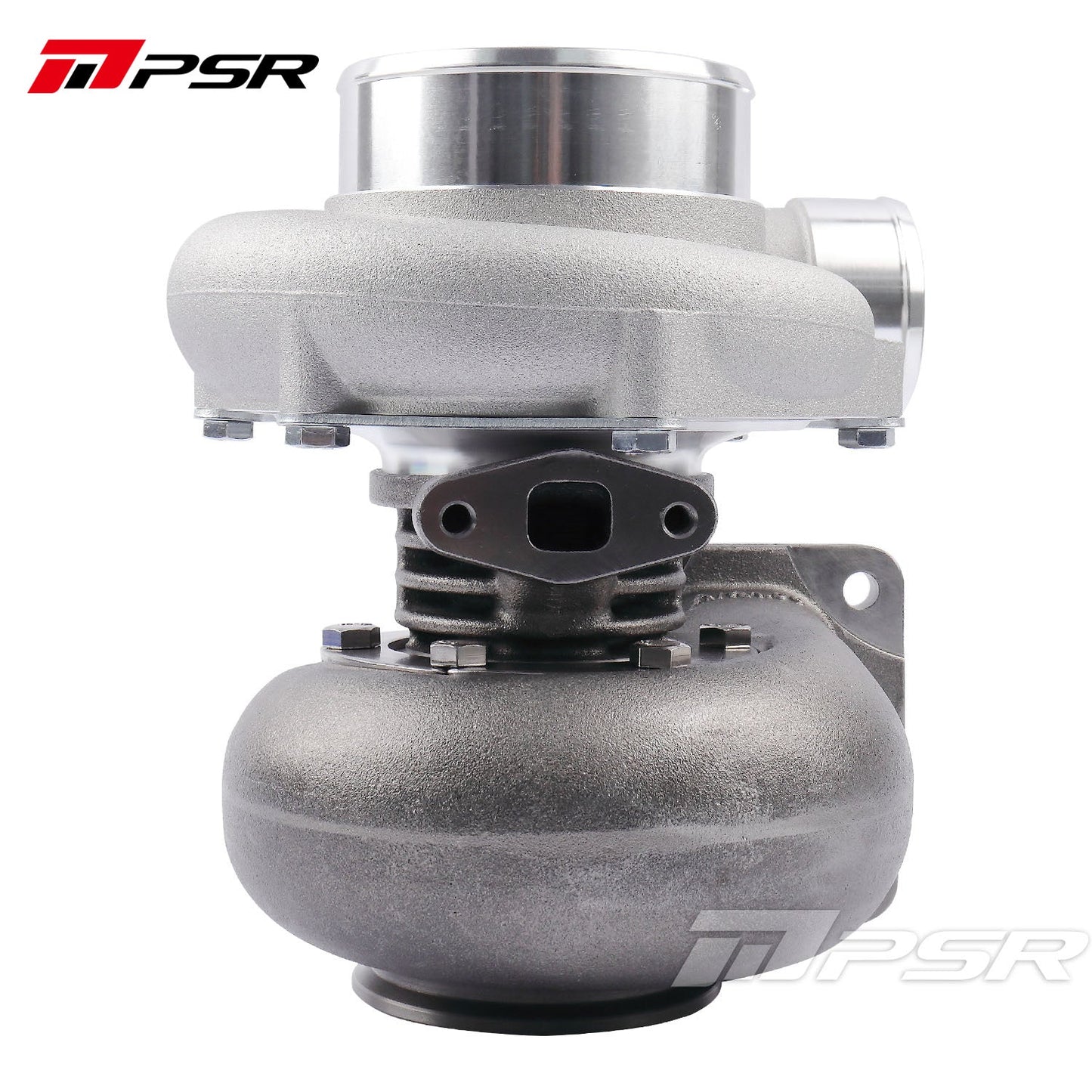

  • Oil drain: T4 flange (Drawing 2)

Oil Drain Fitting:

10AN_STD

10AN_Extended
