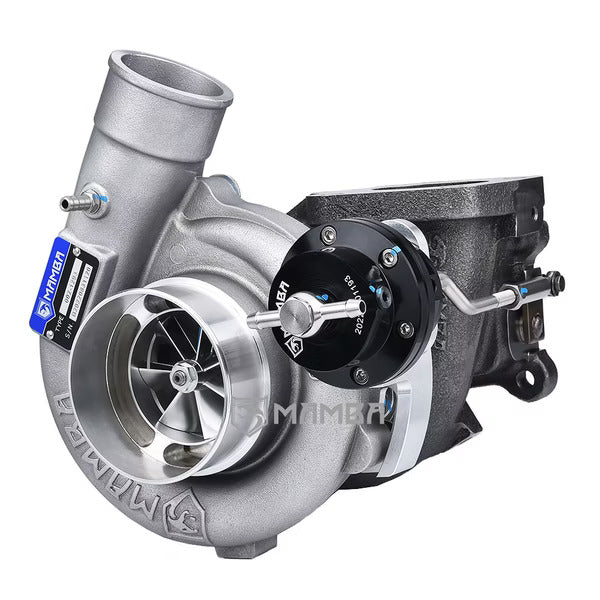

7+7 3" A/R.60 MAZDA 3 6 MPS GTX2867R Ball Bearing Turbocharger + .64 Hsg
7+7 3" A/R.60 MAZDA 3 6 MPS GTX2867R Ball Bearing Turbocharger + .64 Hsg
- THIS IS A SPECIAL ORDER ITEM. Once you complete your order, we will then order it from the supplier. If you are urgently needing this item contact us for an accurate ETA from our supplier before purchasing!
Couldn't load pickup availability
P/N
002-1291
Item Name
MAMBA 7+7 MAZDA MAZDASPEED 3/6/CX7/CX9 3" .60 Twisted Anti surge
GTX2867R Ball Bearing Turbo w/ .64 Bolt-on turbine housing
Application
MAZDA L3-VDT 2.3L Turbo engine with K0422-581, K0422-582, K0422-583, K0422-881, K0422-882 turbocharger
2007~2013 Mazdaspeed 3 2.3T
2006~2007 Mazdaspeed 6 2.3T
2006~2012 MAZDA CX-7
HP Supporting: 350~470HP
Spec
Compressor Wheel : 49.7/67.4/55T (7+7 Billet Wheel w/ Extend Tip)
Turbine Wheel : 47.0 mm / 53.8 mm / Trim 76
Compressor Housing Inlet OD: 3”
Compressor Housing Outlet OD: 2”
Compressor Housing A/R: .60 (PC200-5 Twisted Type)
Turbine Housing A/R: .64
Bearing
NTN Ceramic Dual Ball Bearing
Cooling
Oil and Water-Cooled

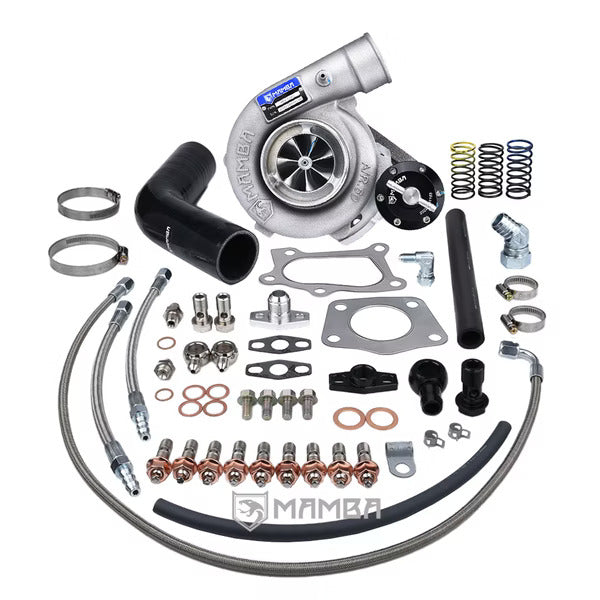

Kit Includes
1 x MAMBA ball bearing turbocharger
1 x 4AN 1/4" PTFE oil feed line kit with 1.0mm restrictor
2 x 4AN 5/16" PTFE coolant feed & return line kit
1 x Oil return hose kit with NBR hose
1 x turbine inlet gasket
1 x turbine outlet gasket
9 x M10x1.5mm stud kit
Everything shown on picture is included.
Actuator
0.8bar spring (Yellow) will be pre-installed on the adjustable actuator.
1.2bar and 1.5bar spring will go with box.
