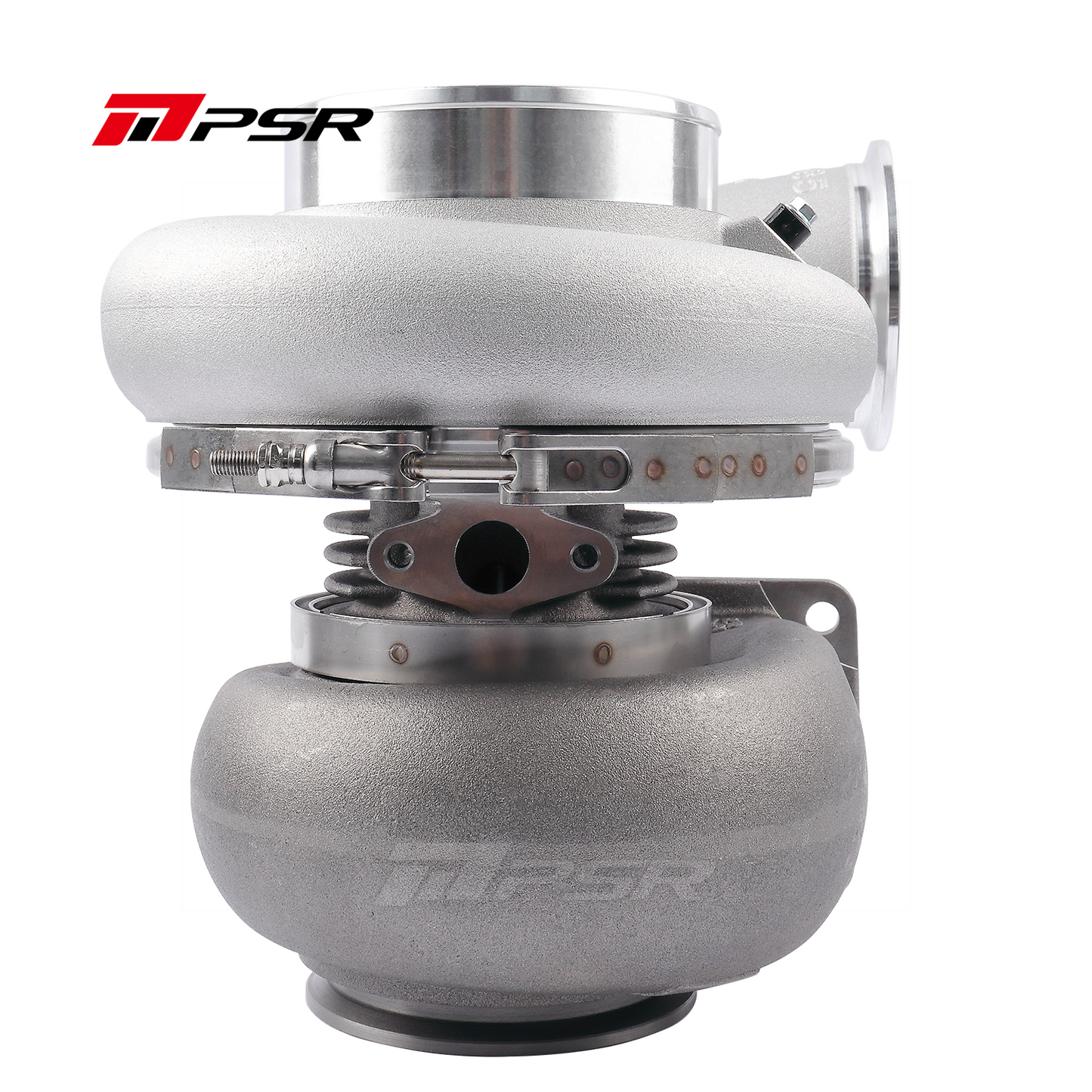

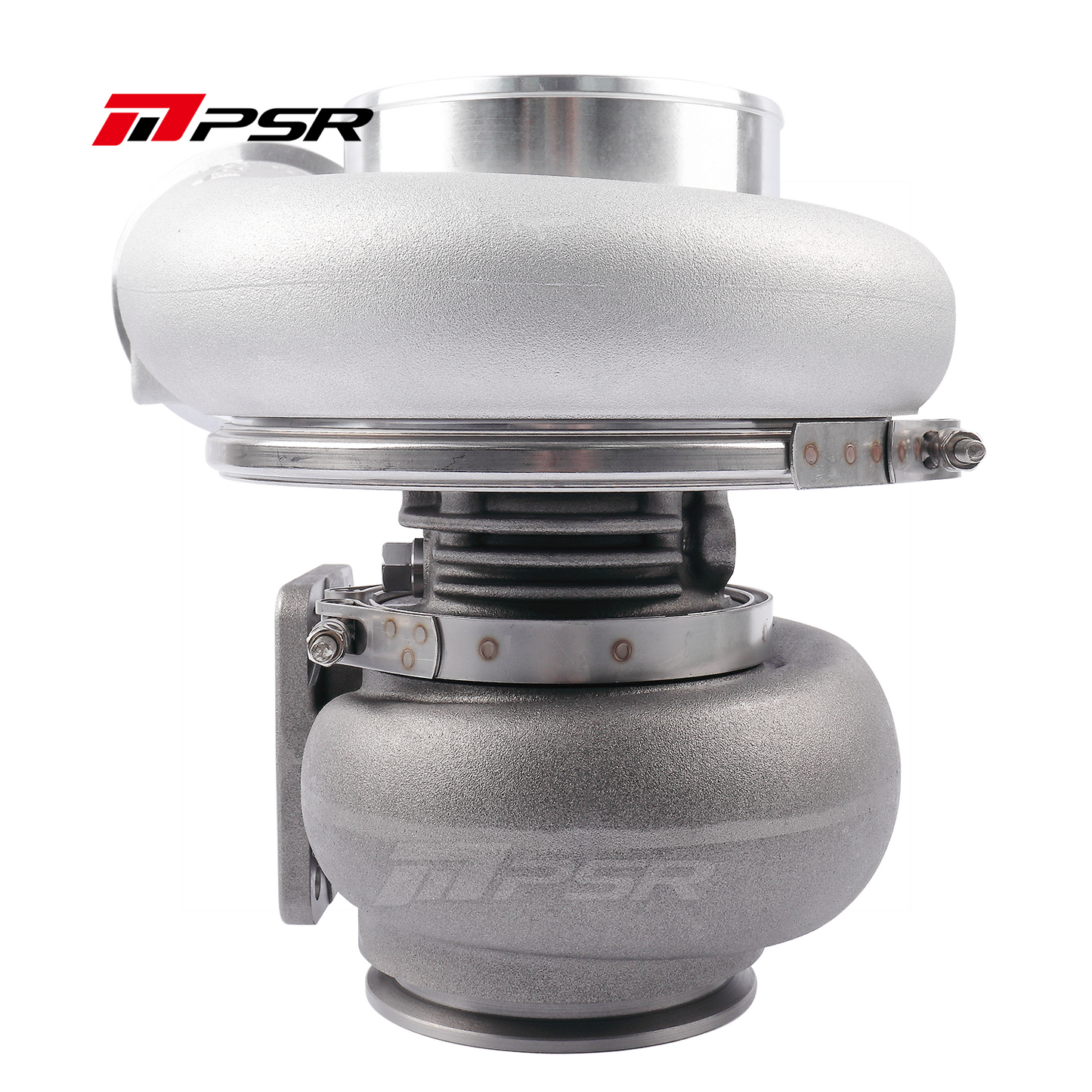

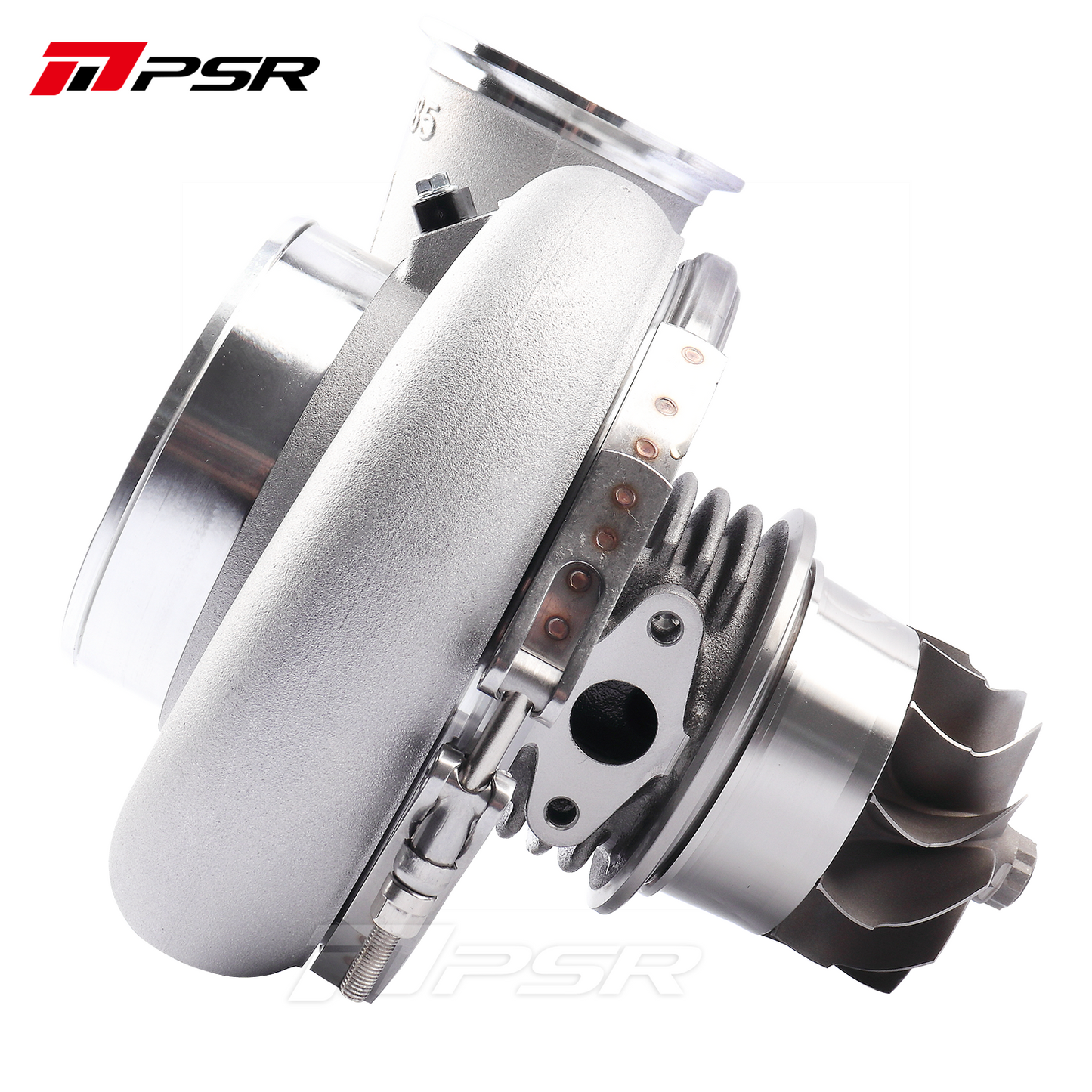

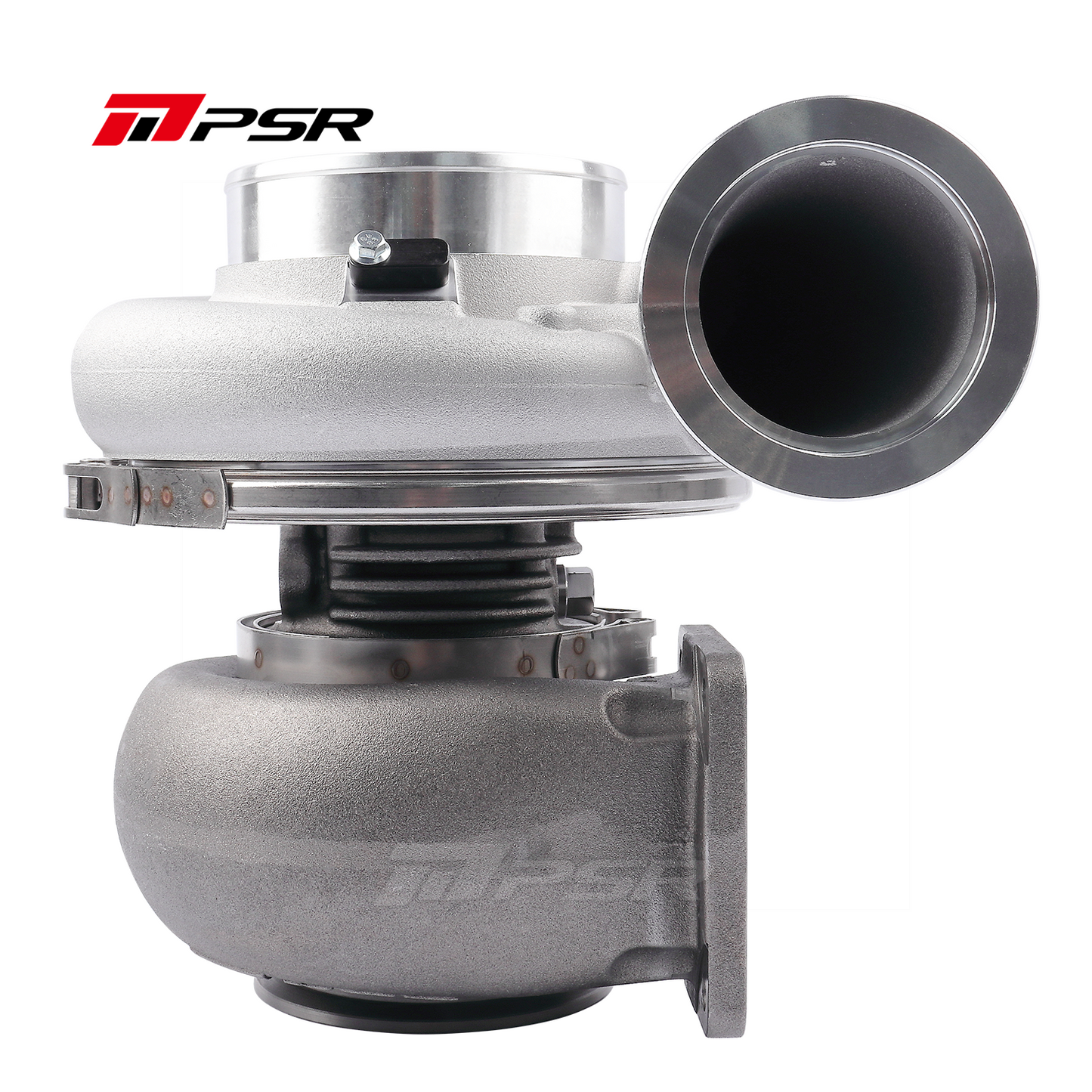

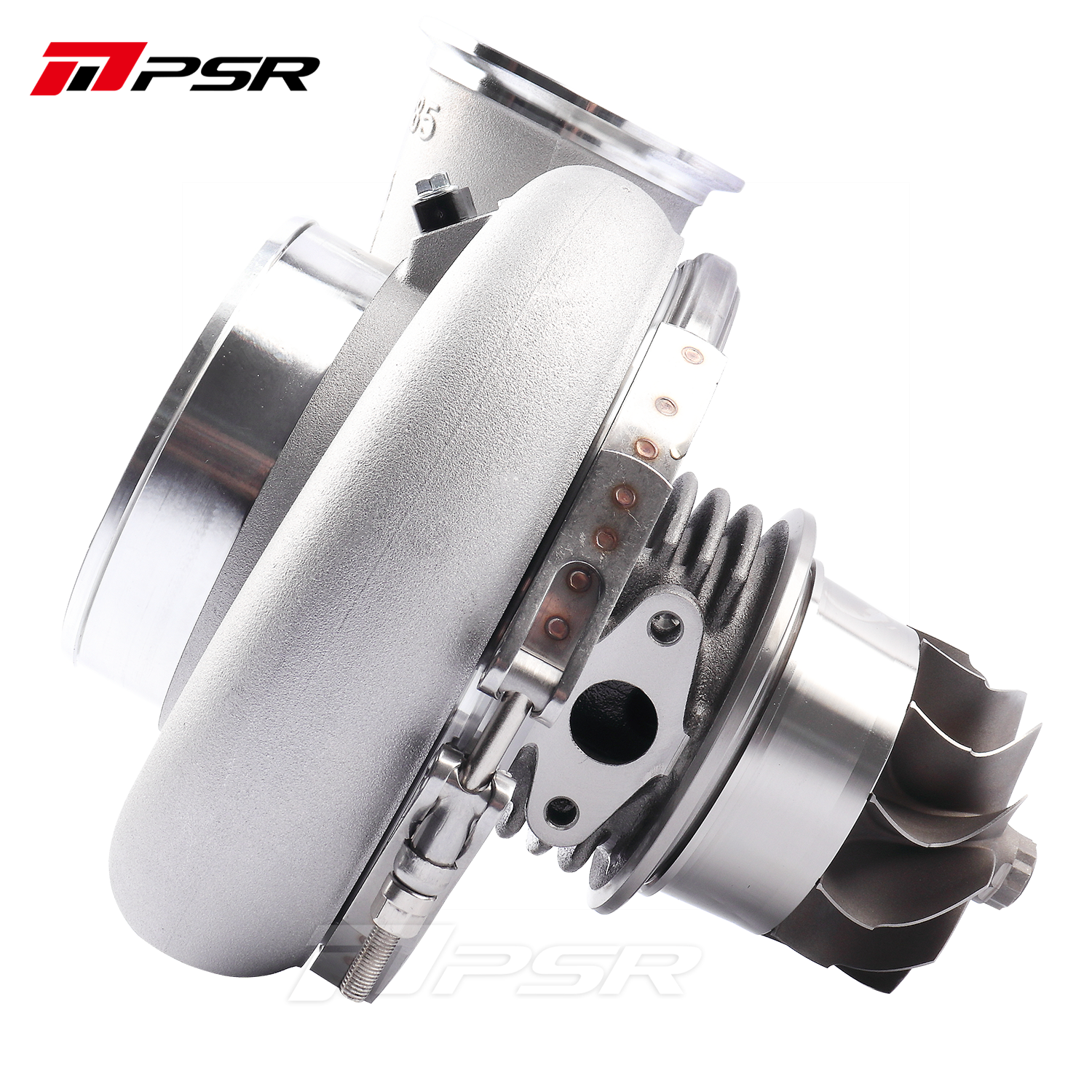

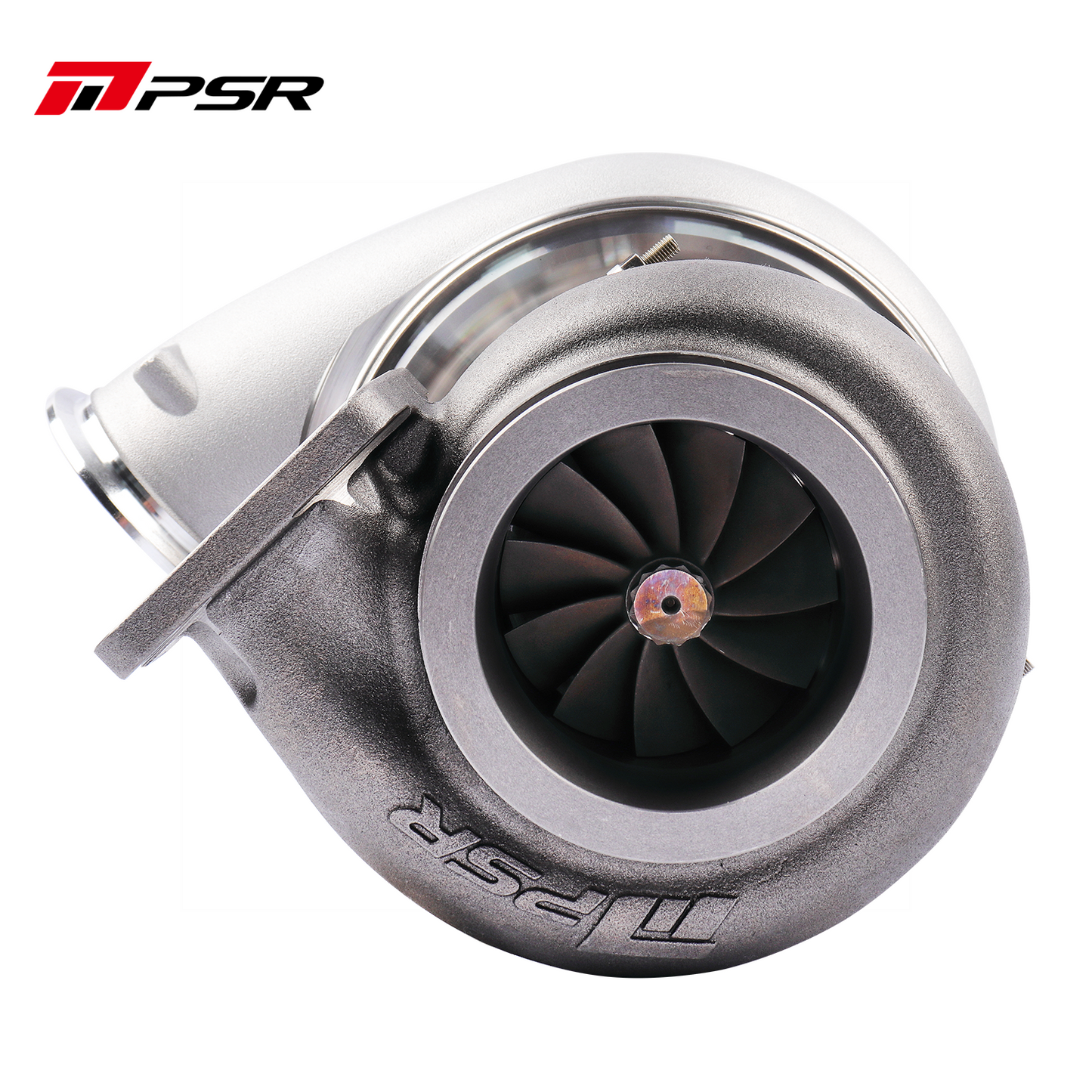

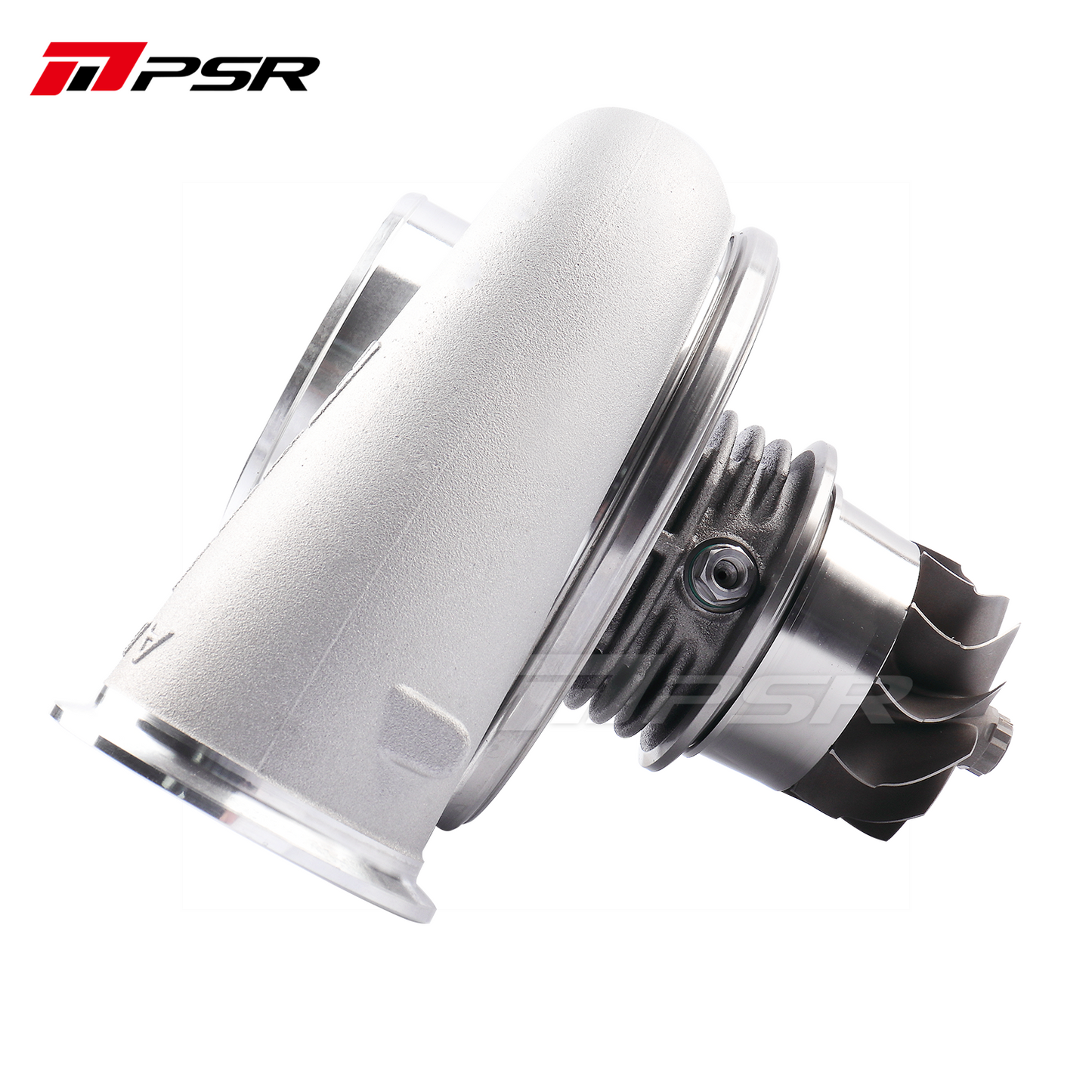

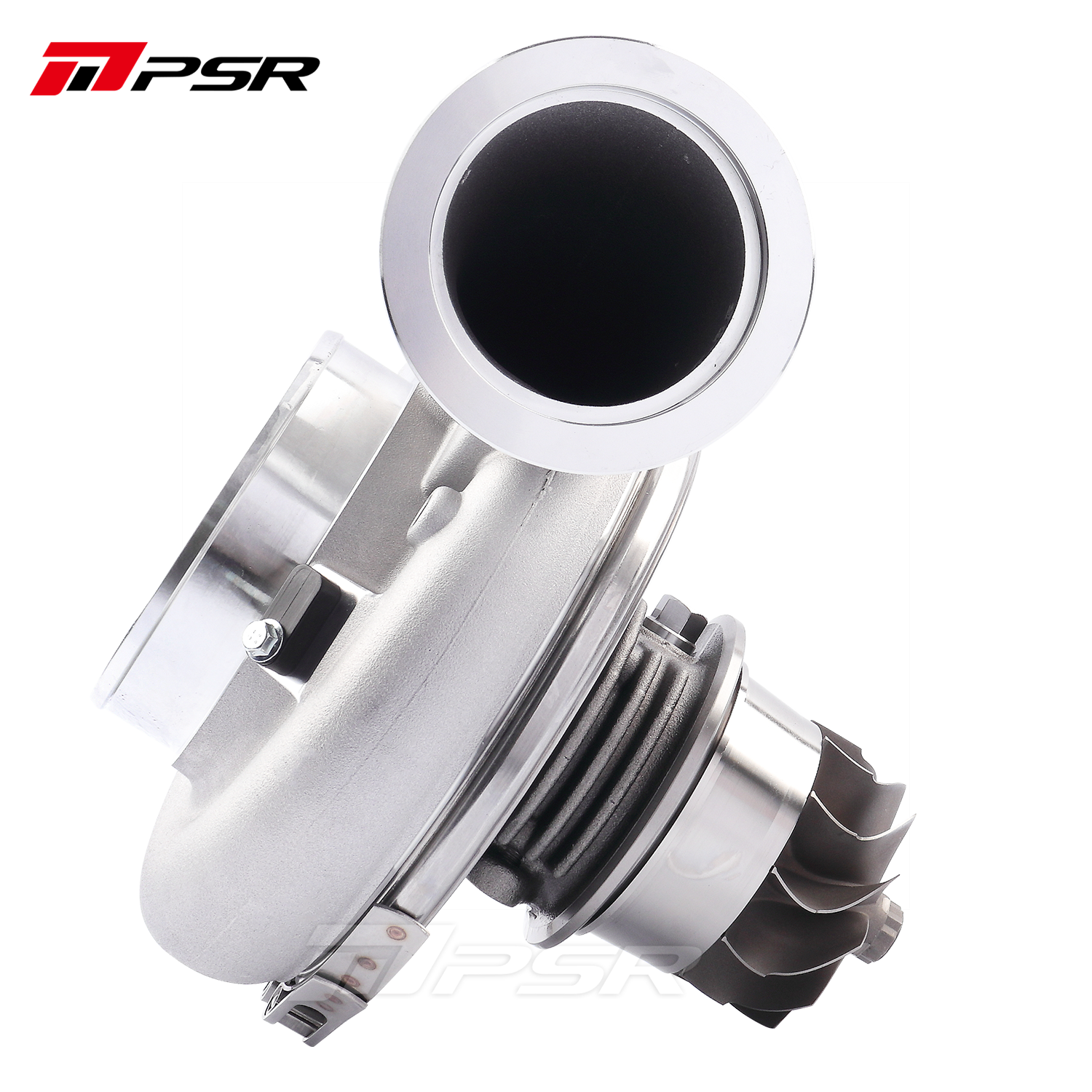

8085E Ball Bearing Turbo UP to 1600HP

8085E Ball Bearing Turbo UP to 1600HP

$2,951.45 NZD
$2,951.45 NZD
Sale Sold out
Taxes included. Shipping calculated at checkout.
  • THIS IS A SPECIAL ORDER ITEM. Once you complete your order, we will then order it from the supplier. If you are urgently needing this item contact us for an accurate ETA from our supplier before purchasing!
Compressor Cover Option
Turbine Housing Option
  • Ball bearing system provides optimal turbo response & better durability by reducing the shaft-motion

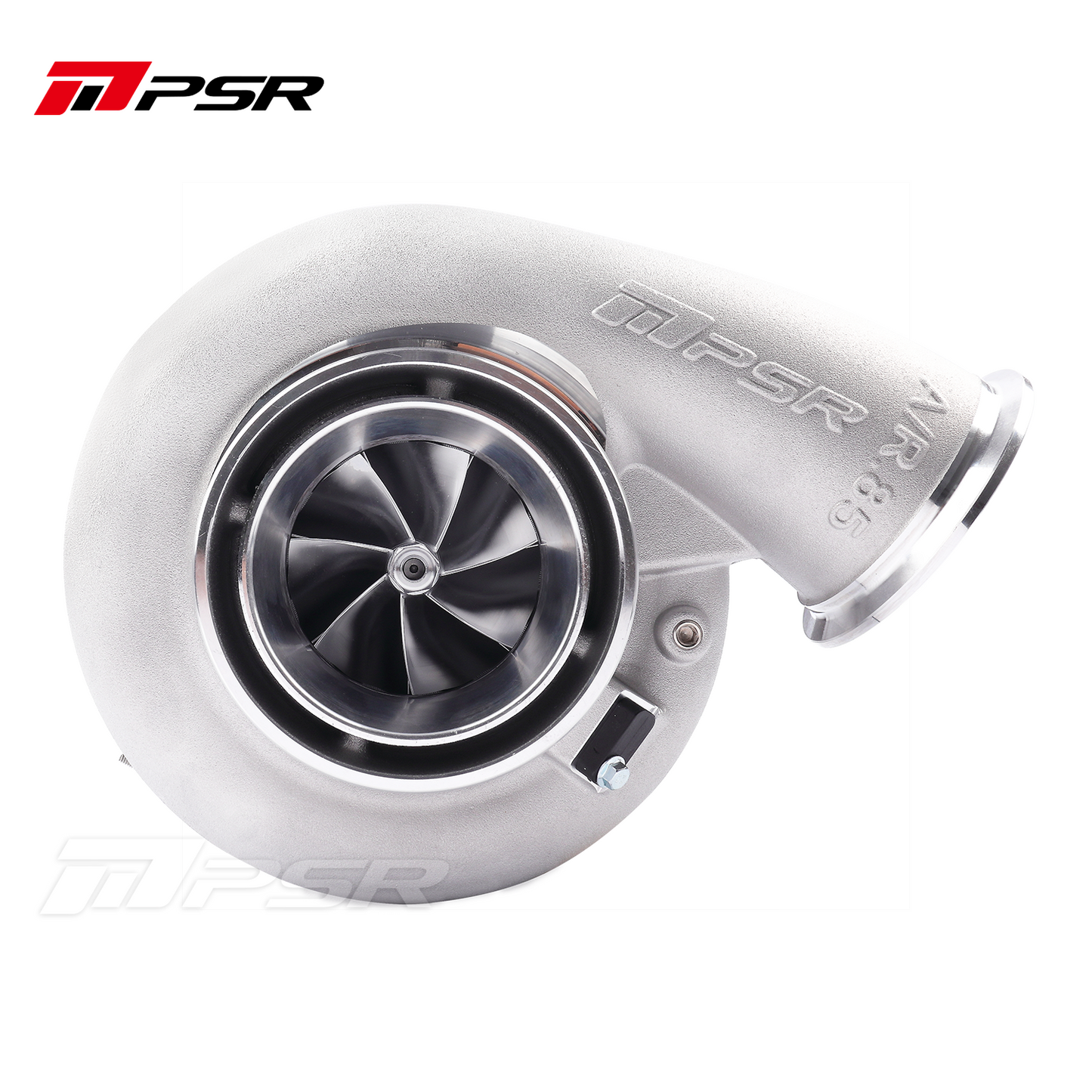

  • Billet Compressor Wheel with Extended Tapered Tip Technology
  • Inconel 713c 11 Blade Turbine Wheel

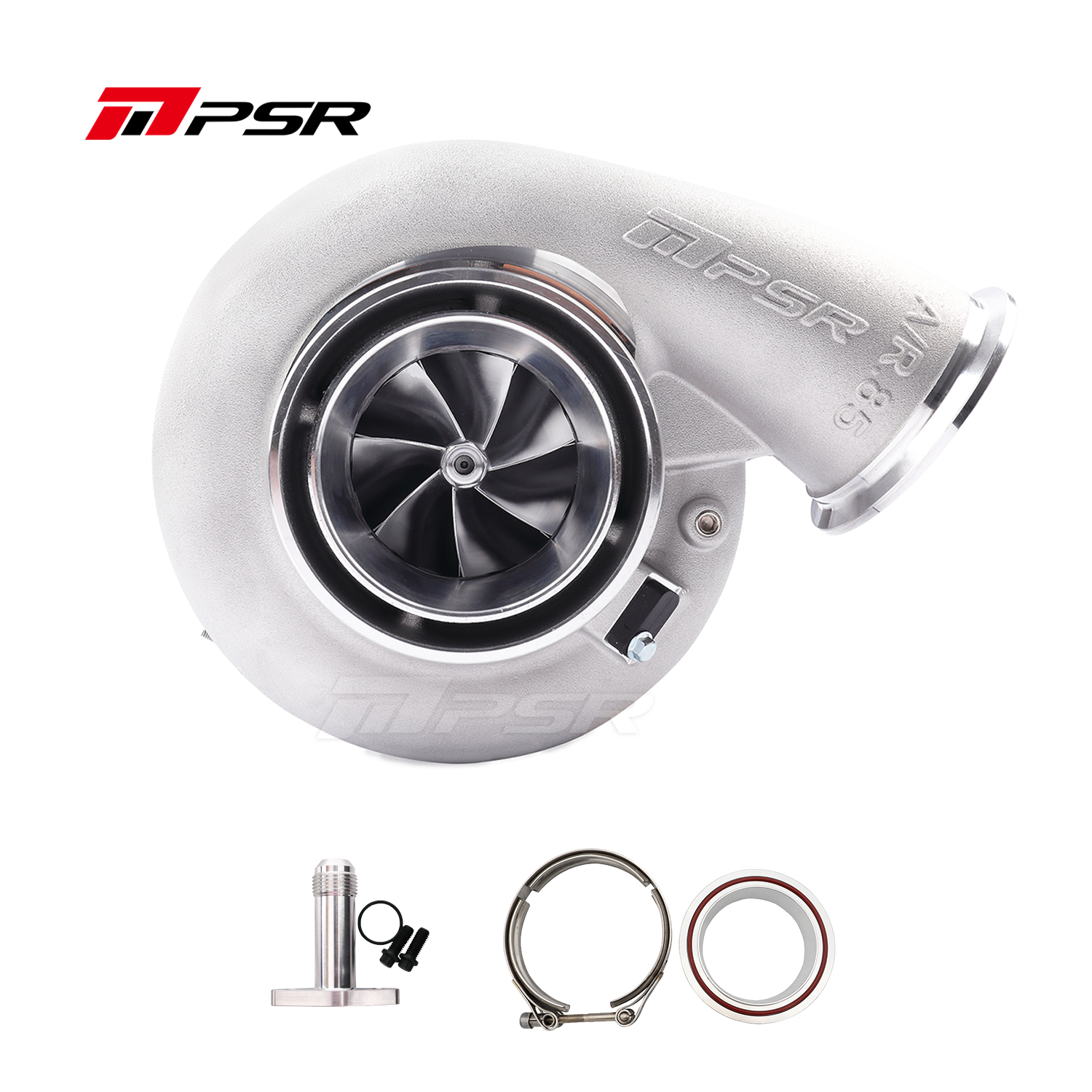

  • V-Band Flange kit for the exhaust housing included
  • Max Engine Horsepower: 1600

Description

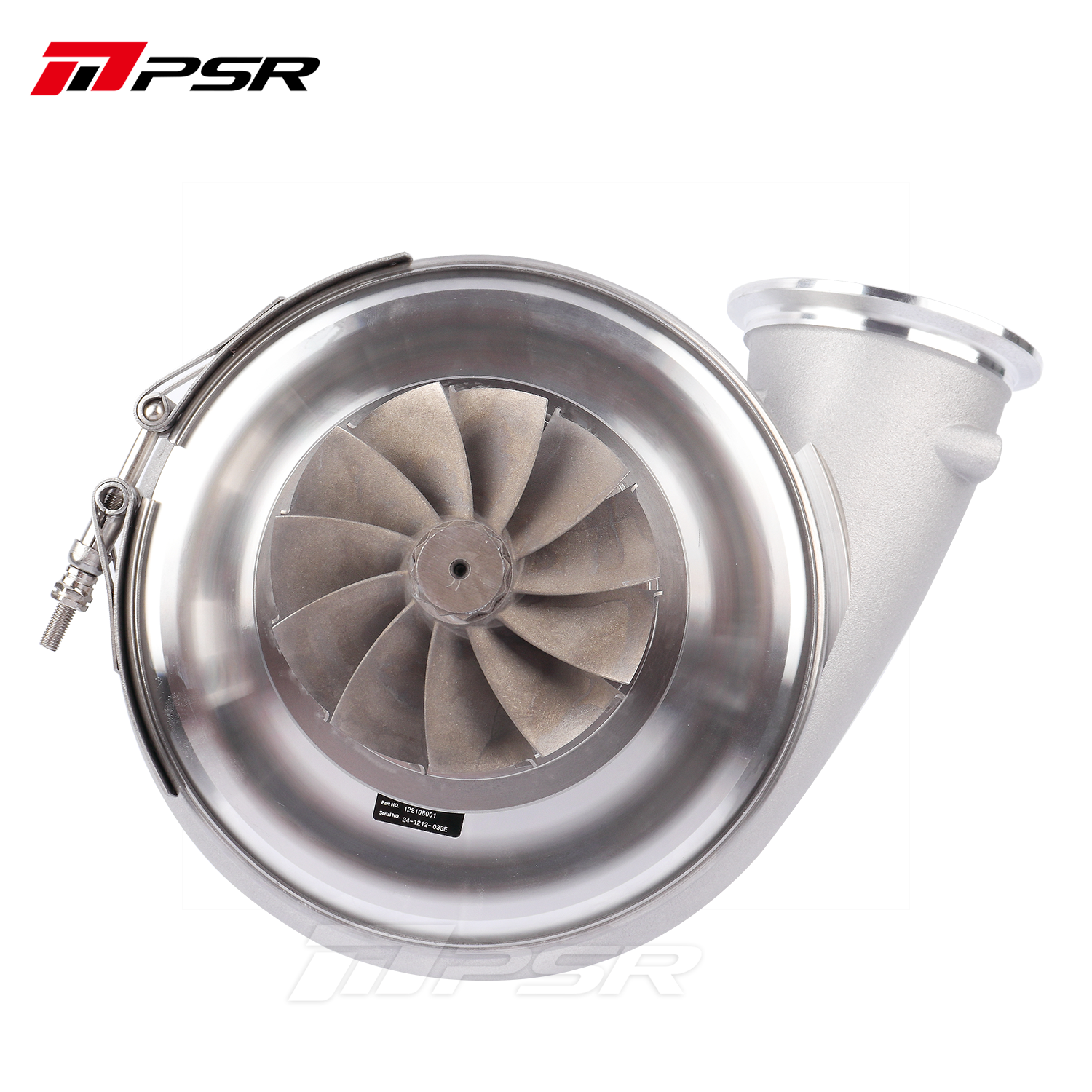

  • Billet Compressor Wheel: 80.8 x 110.5mm, 7+7 Blade

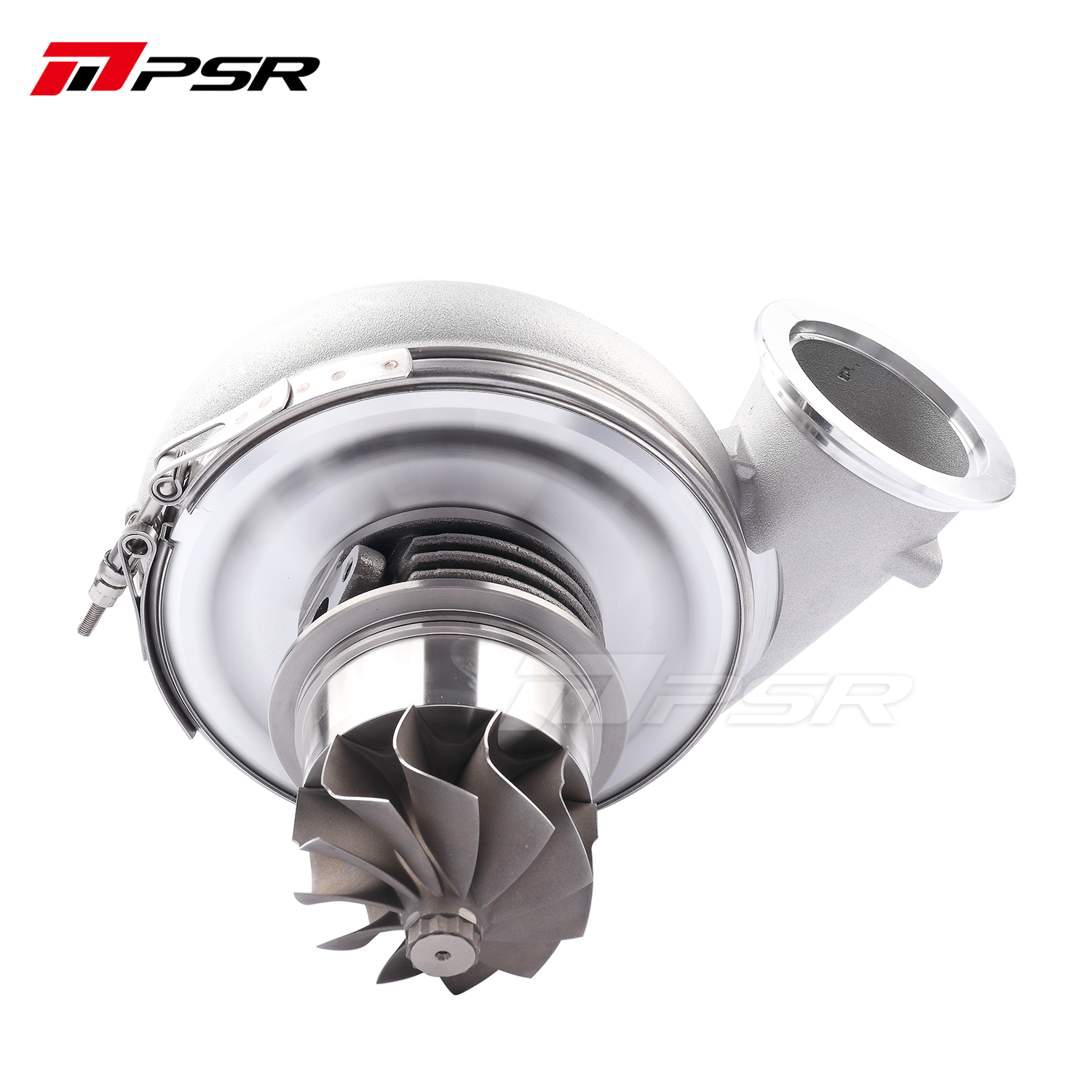

  • Turbine Wheel: 85 x 89.5mm, 11 Blade
  • Bearing System: Dual Ball Bearing (provides optimal turbo response & better durability by reducing the shaft-motion)
  • Compressor Cover：5.0” Hose Inlet/3″ V-Band Outlet

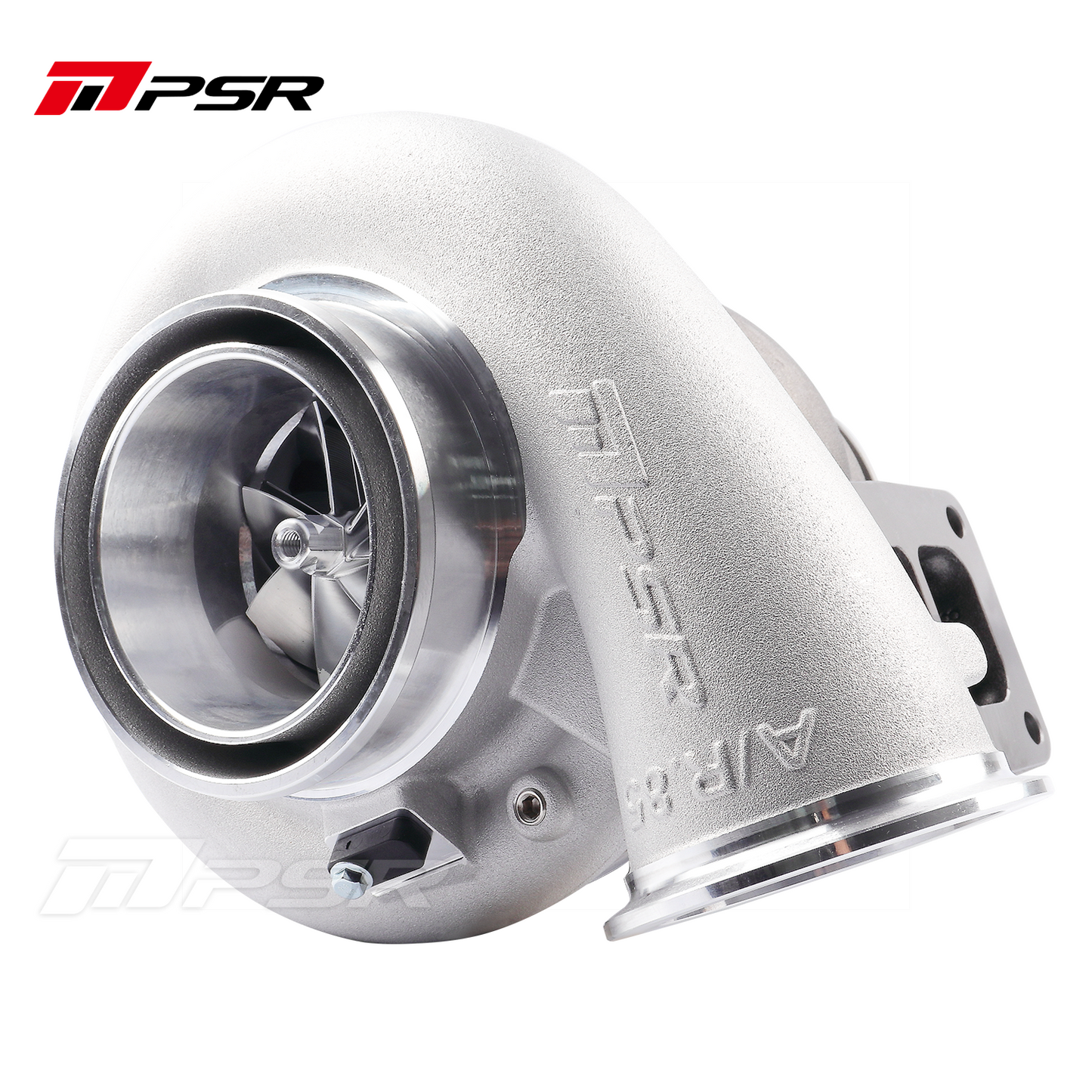

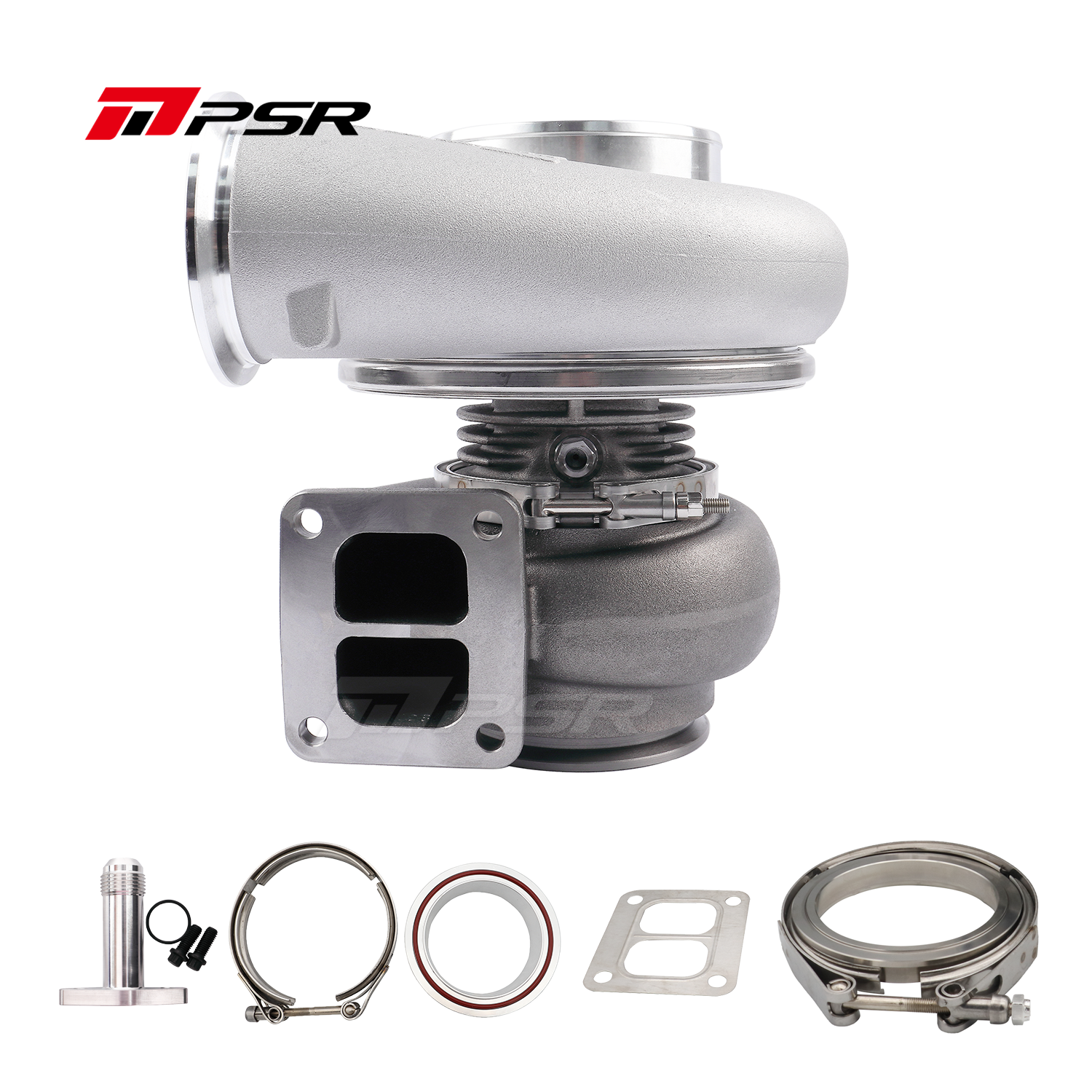

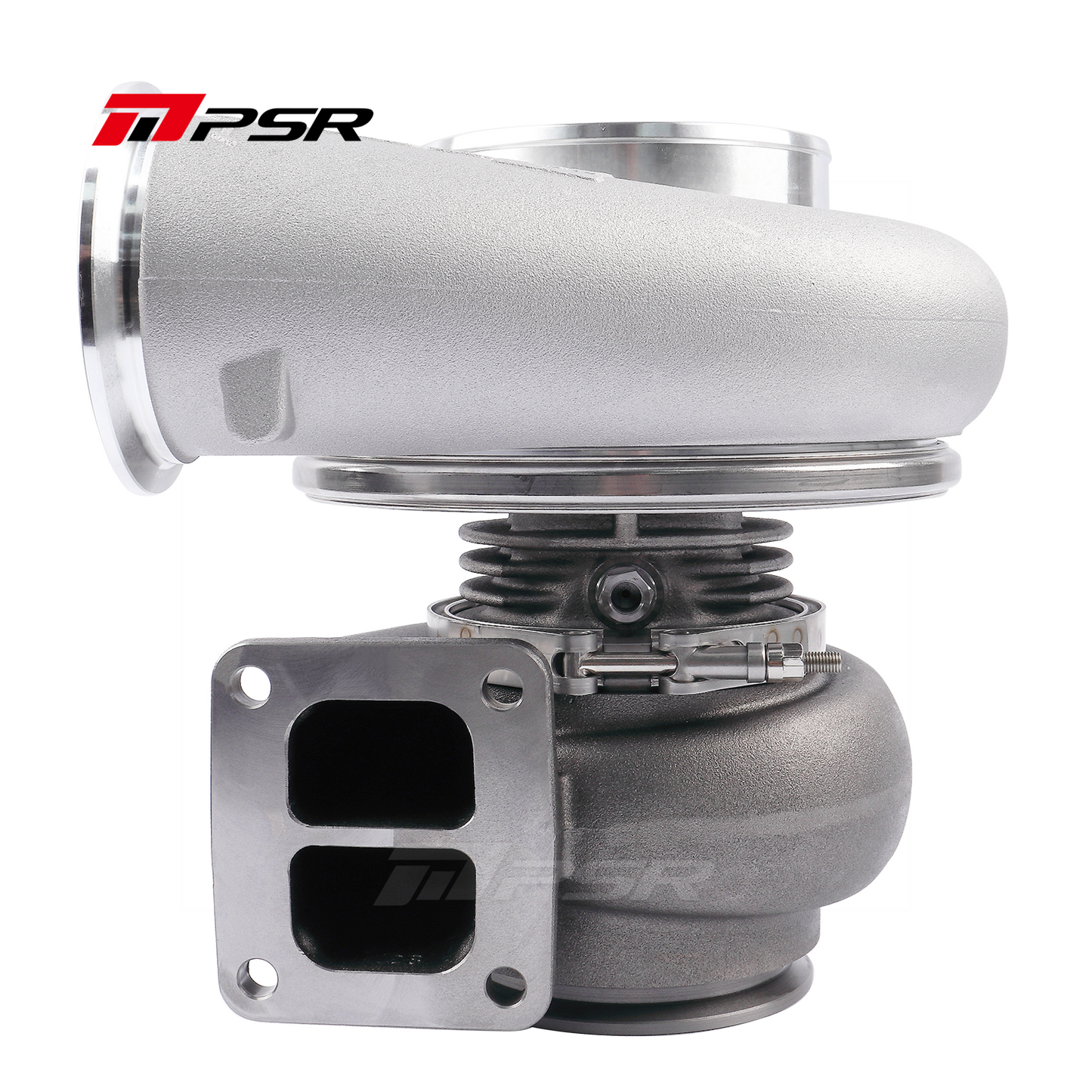

  • Turbine Housing: T4 Divided 1.28A/R(4″ V-band Outlet); Dual V-Band 1.15A/R(3″ V-band Inlet, 4″ V-band Outlet); Dual V-Band 1.28A/R(3″ V-band Inlet, 4″ V-band Outlet)
  • The internal oil feed port is 0.9mm(Oil restrictor is not needed)
  • Oil feed fitting: 1/8-27 NPSF (Drawing 1)
  • Oil Drain: -12AN

Oil Drain Fitting:

12 AN_Extended
