9-7 Extreme K04-4760 AUDI 1.8T TT S3 K04-020/022/023 350HP
9-7 Extreme K04-4760 AUDI 1.8T TT S3 K04-020/022/023 350HP
- THIS IS A SPECIAL ORDER ITEM. Once you complete your order, we will then order it from the supplier. If you are urgently needing this item contact us for an accurate ETA from our supplier before purchasing!
Couldn't load pickup availability
P/N
001-2301
Item Name

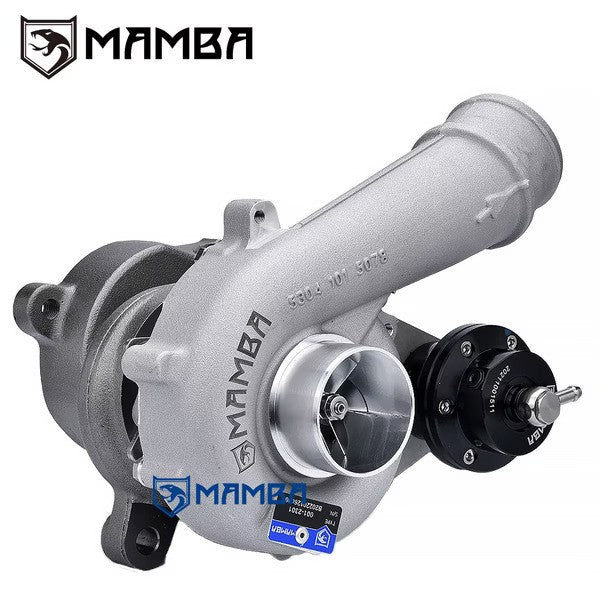

MAMBA 9-7 AUDI VW Turbocharger K04-020/022/023 Extreme K04-4760 1.8T AUDI S3 TT with APY, APX, AMK, BAM, BFV Engine 350HP
Application
Bolt up to replace factory K04-020, K04-022, K04-023 (53049880020, 53049880022, 53049880023, 53049700020, 53049700022, 53049700023 )
1999- Audi S3 1.8 T Engine APY, AMK
1998- Audi TT 1.8 T (8N) Engine APX
1999-12 Audi S3 1.8 T with AMK Engine
1999-12 Audi TT 1.8 T (8N) with AMK APX Engine
2002-03 Seat Leon 1.8 T Cupra R with AMK Engine
2000-09 Audi S3, TT BAM, BAM BFV
2000- Audi S3 1.8L T Engine BAM
2000- Audi TT 1.8L T (8N) Engine BAM BFV
2004- Audi TT 1.8L T (8N) Engine BAM BFV
2003-05 Seat Leon 1.8L T Cupra R Engine BAM
Spec
Compressor wheel: 46.4/60 (7+7 Blade Billet Compressor Wheel)
Turbine Wheel: 46.5/52.0 (MAMBA Extreme 9 Blade)
HP Support: 300HP~350HP
Bearing
Journal Bearing with Performance thrust bearing Kit
Cooling
Oil & water-cooled
Actuator
0.8bar spring is pre-installed on the adjustable actuator
Additional 1.2bar and 1.5bar spring go with box.
Kit Includes
1 x K04-4760 Turbocharger
1 x Oil Feed Line Kit
2 x Water Coolant line kit
1 x SS301 Turbine Inlet Gasket
1 x SS301 Turbine Outlet Gasket
6 x 10mm Stud Kit

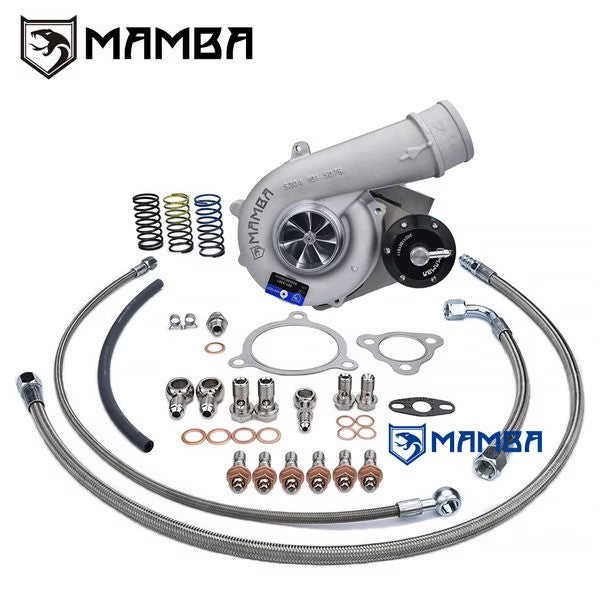

Everything shown on first picture is included.
Made By
MAMBATEK
