D5-7 EA888 GEN 3 AUDI Porsche A4 Macan GTX2867R Ball Bearing Turbocharger (No WG)
D5-7 EA888 GEN 3 AUDI Porsche A4 Macan GTX2867R Ball Bearing Turbocharger (No WG)
- THIS IS A SPECIAL ORDER ITEM. Once you complete your order, we will then order it from the supplier. If you are urgently needing this item contact us for an accurate ETA from our supplier before purchasing!
Couldn't load pickup availability
P/N
002-1031-N
Item Name
MAMBA D5-7 EA888 GEN 3 AUDI/Porsche A4 Macan Bolt-on GTX2867R Ball Bearing Turbocharger
Application
This is the bolt-on MAMBA D5-7 ball bearing turbocharger for 09~ MQB EA888 GEN 3 2.0TFSI AUDI A4/A5/A6/A7/Q5, Porsche Macan Inline CYNB/CYPA/CNCB/CNCD/CNCE engine.
Fits engine with original turbo #: 06L145702D, 06L145702F, 06L145702P, 06L145702Q, 06L145722C, 06L145722N, 06L145722G
Support HP: 300~560HP
Spec
Compressor wheel: 49.7/67.4/Trim 55/7+7 LEP designed/GTX2867R
Turbine wheel: 47.0/53.8/Trim76/D5 (5+5)/GT28R
Turbine housing A/R: IS20
Bearing
Ceramic dual ball bearing
Inconel cage
Cooling
Oil & water-cooled
Actuator
E-Wastegate is not included.
E-Wastegate part # 053-0104 if needed.
Kit Includes
1 x MAMBA D5-7 GTX2867R ball bearing turbocharger without Wastegate.
1 x PTFE Turbo oil feed line kit with filter.
1 x PTFE Turbo water line Kit
1 x Mild steel turbo water pipe kit
1 x Turbo oil return line Kit
1 x Turbine inlet gasket
1 x Turbine outlet gasket

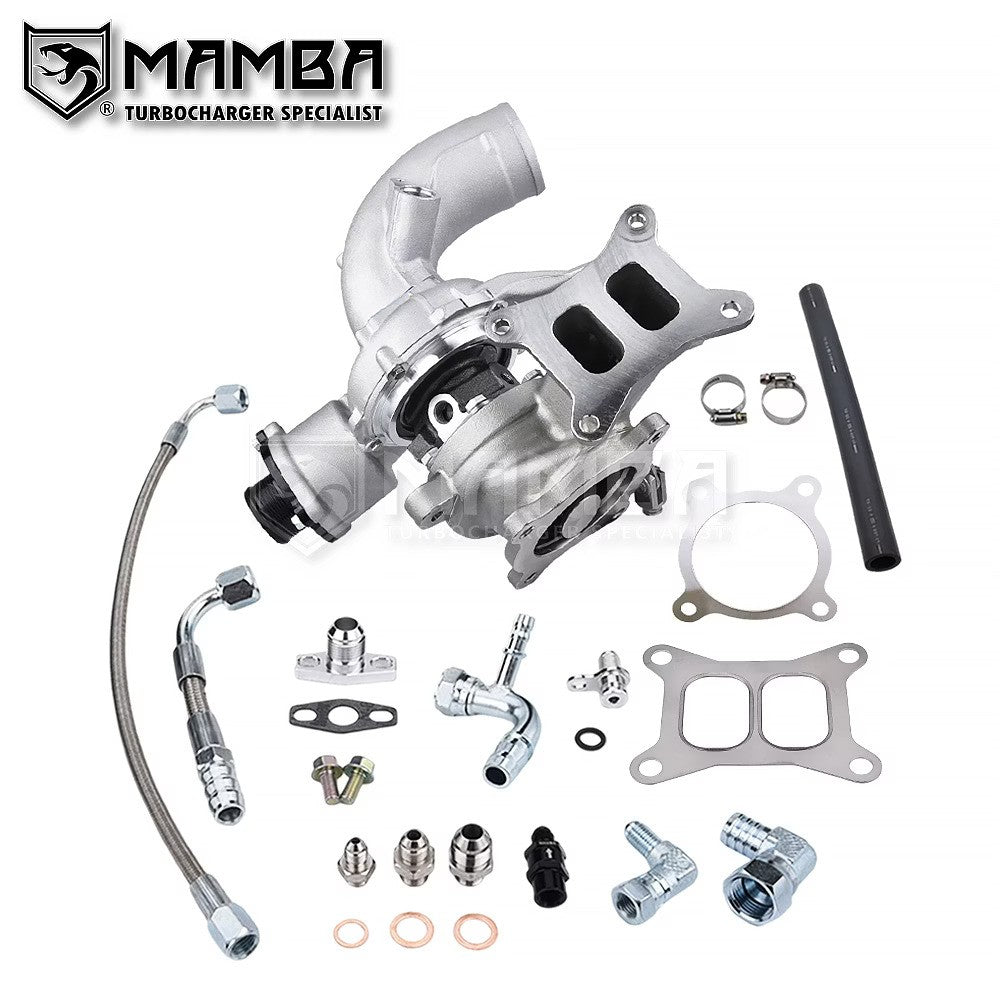

Everything shown in the first picture is included.
