DARKSIDE BMW M47 / M57N / M57N2 EGR Delete / Race Pipe Retaining ASV

BMW M47 / M57N / M57N2 EGR Delete / Race Pipe Retaining ASV

Darkside BMW 2.0 & 3.0 Diesel M47 / M57N / M57N2 Engines EGR Delete / Race Pipe Retaining ASV

• Reduces Inlet Air Temperatures = More Power
• Prevents Inlet and Turbo from Clogging up
• Brushed Aluminium Finish
• Made in the UK



This kit replaces the EGR Valve and fits neatly between the Anti Shudder Valve and Inlet Manifold. Retaining the ASV means the engine still remains smooth when switching off the ignition

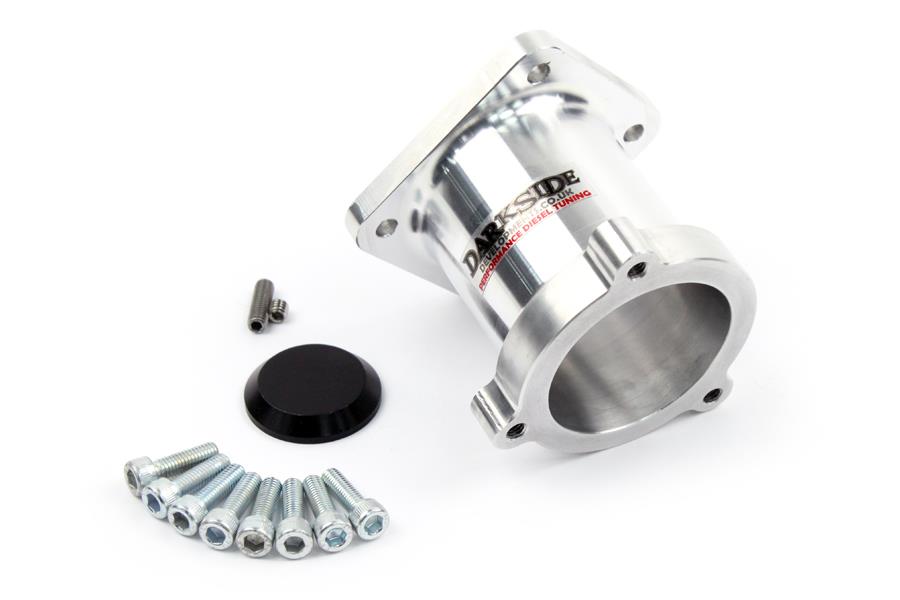

Our EGR Delete Kit is machined from a Single Billet so there are no welds. This improves appearance and also strength. We have found that the kits from other suppliers crack due to the strain of the boost pipework hanging from the ASV, so we designed our item to overcome this problem
Our unique Grub Screw design allows for the neatest possible install, removing the bulky brass fitting found on other EGR Delete Kits. The tiny hole also eliminates the need to fit an 'in-line' reducer to stop the boost guage from fluttering under heavy load. The design also means that customers who will not be using the boost takeoff will have a clean looking install as our design is almost exactly the same profile as the standard EGR Valve, which allows all the stock fixings to be used

PLEASE NOTE THAT THIS IS MACHINED FROM ONE SINGLE PIECE AS THE PIPE IS UNDER STRAIN AND WELDED PIPES CAN CRACK

PLEASE NOTE: ONCE THE VALVE IS EITHER REMOVED OR BLANKED OFF THE VEHICLES ECU WILL NO LONGER GET A SIGNAL FROM THE EGR VALVE CAUSING THE EMMISIONS WORKSHOP LIGHT TO APPEAR ON THE DASH BOARD. WE CAN REMOVE THIS BY REPROGRAMMING THE EGR SOFTWARE ON THE ECU.

KIT OPTIONS:

EGR Delete - A Kit to remove the EGR (Exhaust Gas Recirculation) Valve ONLY, leaving the EGR / Exhaust Cooler in place

EGR & Cooler Delete - A complete kit that removed both the EGR (Exhaust Gas Recirculation) Valve & the EGR Cooler / Exhaust Cooler

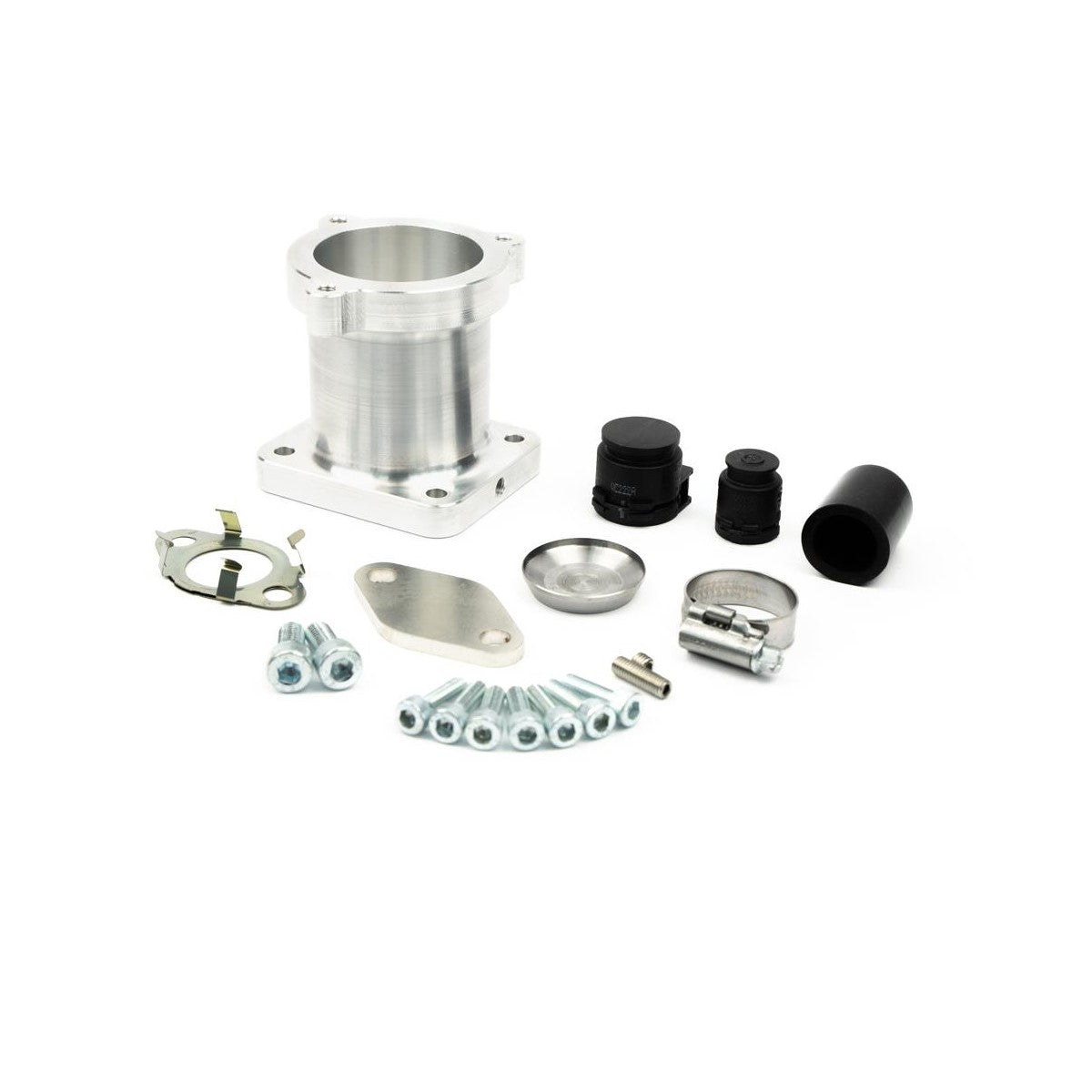

THIS KIT CONSISTS OF:

- Darkside Developments Double Flange Race Pipe
- Machined Cap (For Cooler Pipe)
- 4x M6 x 20mm BZP Bolts
- Vented Grub Screw (Boost Guage Takeoff)
- Grub Screw (To Block Boost Port)
- EGR Blanking Plate & Gasket (EGR & Cooler Delete ONLY)
- 3x Blanking Plugs / Caps - (EGR & Cooler Delete ONLY)



SERIES / CHASSIS:

E53 / E60 / E60N / E61 / E61N / E63N / E64N / E65 / E66 / E70 / E70N / E71 / E83 / E83N / E87 / E90 / E90N / E91 / E91N / E92 / E92N / E93

MODEL:

118d / 120d / 318d / 320d / 325d / 330d / 330xd / 335d / 520d / 525d / 525xd / 530d /530xd / 535d / 635d / 730d / 730Ld / X3 / X5 / X6

ENGINES:

M47N2 / M57N / M57N2

REPLACES GENUINE BMW PART NUMBERS:

11 71 8 517 217 - 11718517217 - 8 517 217 - 8517217
11 71 7 807 805 - 11717807805 - 7 807 805 - 7807805
11 71 7 804 382 - 11717804382 - 7 804 382 - 7804382
11 71 7 793 484 - 11717793484 - 7 793 484 - 7793484
11 71 7 804 352 - 11717804352 - 7 804 352 - 7804352



DARKSIDE DEVELOPMENTS ACCEPTS NO RESPONSIBILITY FOR THE USE OF THIS PART ON THE PUBLIC HIGHWAY WHERE REMOVAL OF EMISSIONS CONTROLS IS PROHIBITED. IT IS THE CUSTOMERS RESPONSIBILITY TO ENSURE THEY COMPLY WITH RULES AND LAWS RELATING TO THEIR HOME COUNTRY
