Darkside EGR & ASV Delete Kit for PD130, PD150 and PD160 1.9 TDI Engines
Darkside EGR & ASV Delete Kit for PD130, PD150 and PD160 1.9 TDI Engines
- THIS IS A SPECIAL ORDER ITEM. Once you complete your order, we will then order it from the supplier. If you are urgently needing this item contact us for an accurate ETA from our supplier before purchasing!
Couldn't load pickup availability
EGR & ASV Delete Kit for PD130, PD150 and PD160 1.9 TDI Engines
Fits ALL VW / Audi / Seat and Skoda Vehicles with the PD130 (ASZ), PD150 (ARL) and PD160 Engines
- Reduces inlet air temperatures = more power
- Prevents inlet and turbo from clogging up
- Brushed aluminium finish
- CNC Machined from a single aluminum billet
- Made in the UK
These can also be fitted to any other 1.9 TDI Engine when using a PD130/PD150 Inlet Manifold

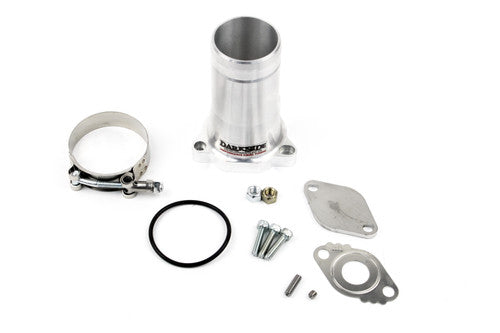

This kit consists of:
- Darkside Developments Race Pipe (57mm Diameter)
- Darkside EGR Blanking Plate (for Turbo EGR Port)
- 2 x M8 Nuts
- Vented Grub Screw (Boost Gauge Take-off)
- Grub Screw (to block Boost Port)
- O-Ring Seal

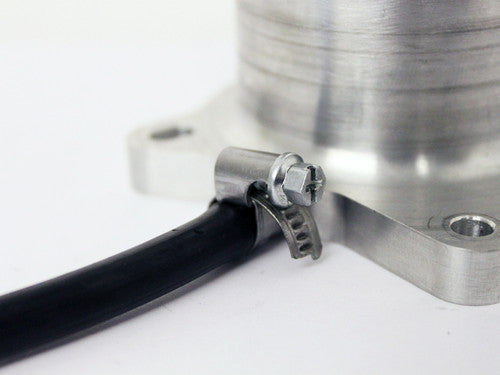

- Mikalor 60mm Stainless Steel Hose Clamp
We use a 57mm (2.25") for custom Intercooler Pipe Setups. The twin grooves prevent the hose from slipping
Our unique Flange Design offers countersunk bolt holes, which keep the product looking neat when bolted to the manifold. This also means you can reuse the standard bolts rather than swapping for longer items. There is also no welds on the pipe as they are CNC Machined from a single aluminium billet

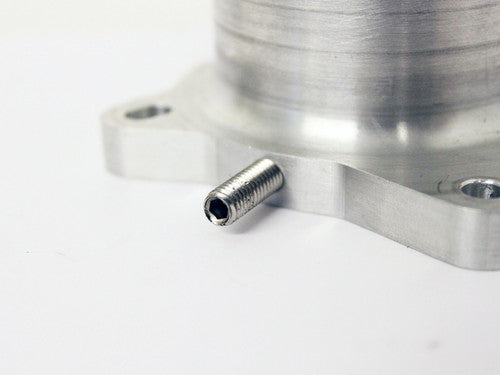

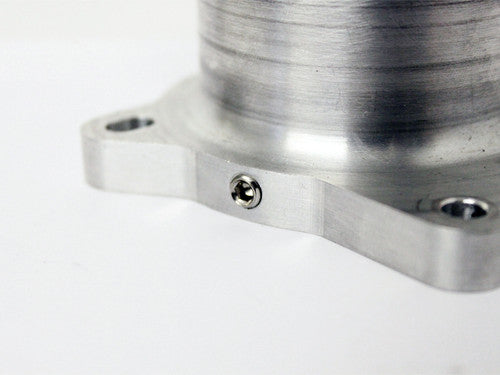

Our unique Grub Screw design allows for the neatest possible install, removing the bulky brass fitting found on other EGR Delete Kits. The tiny hole also eliminates the need to fit an 'in-line' reducer to stop the boost gauge from fluttering under heavy load. The design also means that customers who will not be using the boost take-off will have a clean looking install
The 51mm EGR Delete is more suited to most models, where the PD105 and PD150 Engines are more suited to the 57mm EGR Delete
For the 1.9 PD105, this should only be used if you want to remove the EGR Valve AND ASV
Please Note:
Once the valve is either removed or blanked off the vehicles ECU will no longer get a signal from the EGR Valve causing the emissions workshop light to appear on the dash board. We can remove this by reprogramming the EGR software on the ECU.
For more information on EGR Valves and Removal see here - https://www.darksidedevelopments.co.uk/egr-removal-delete/
