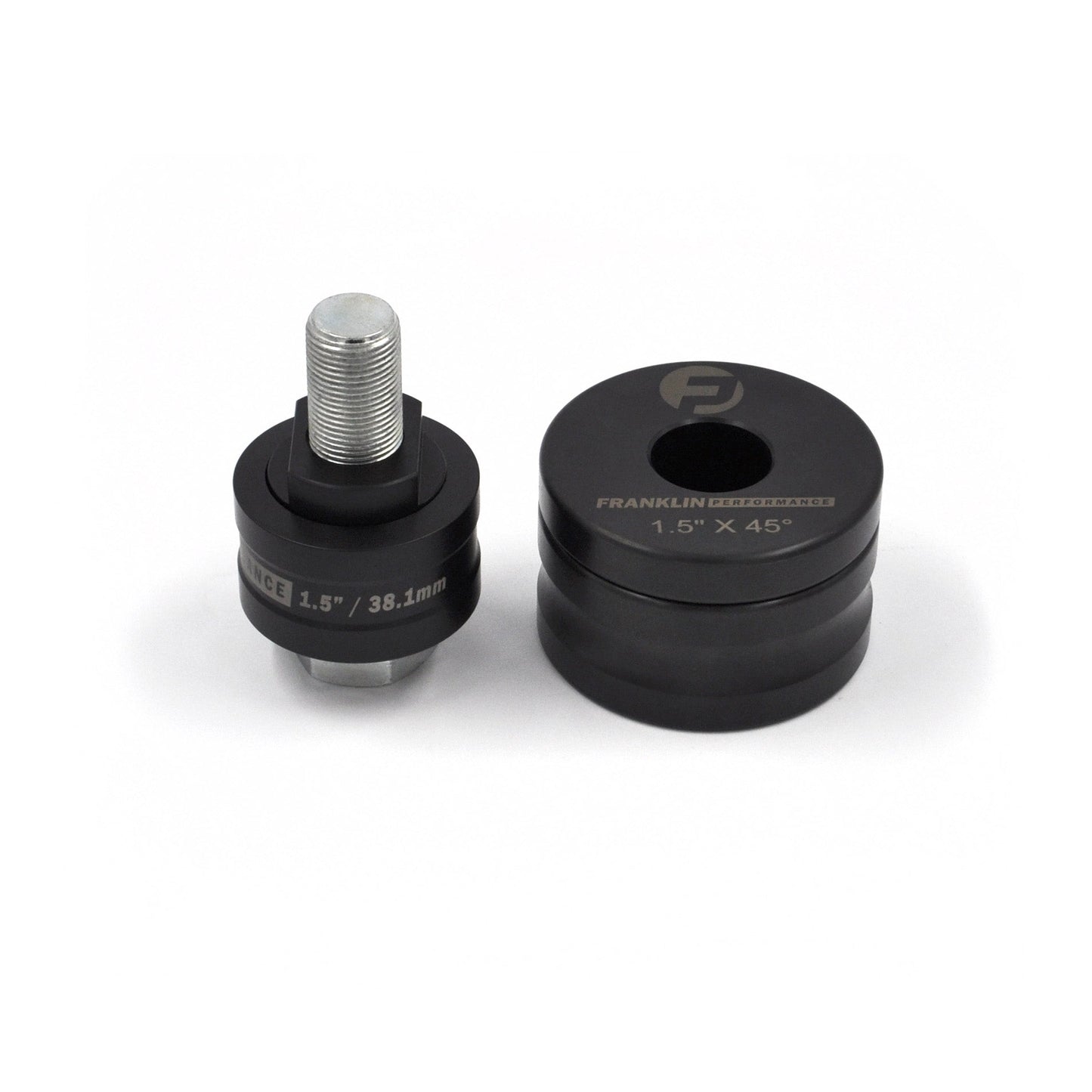

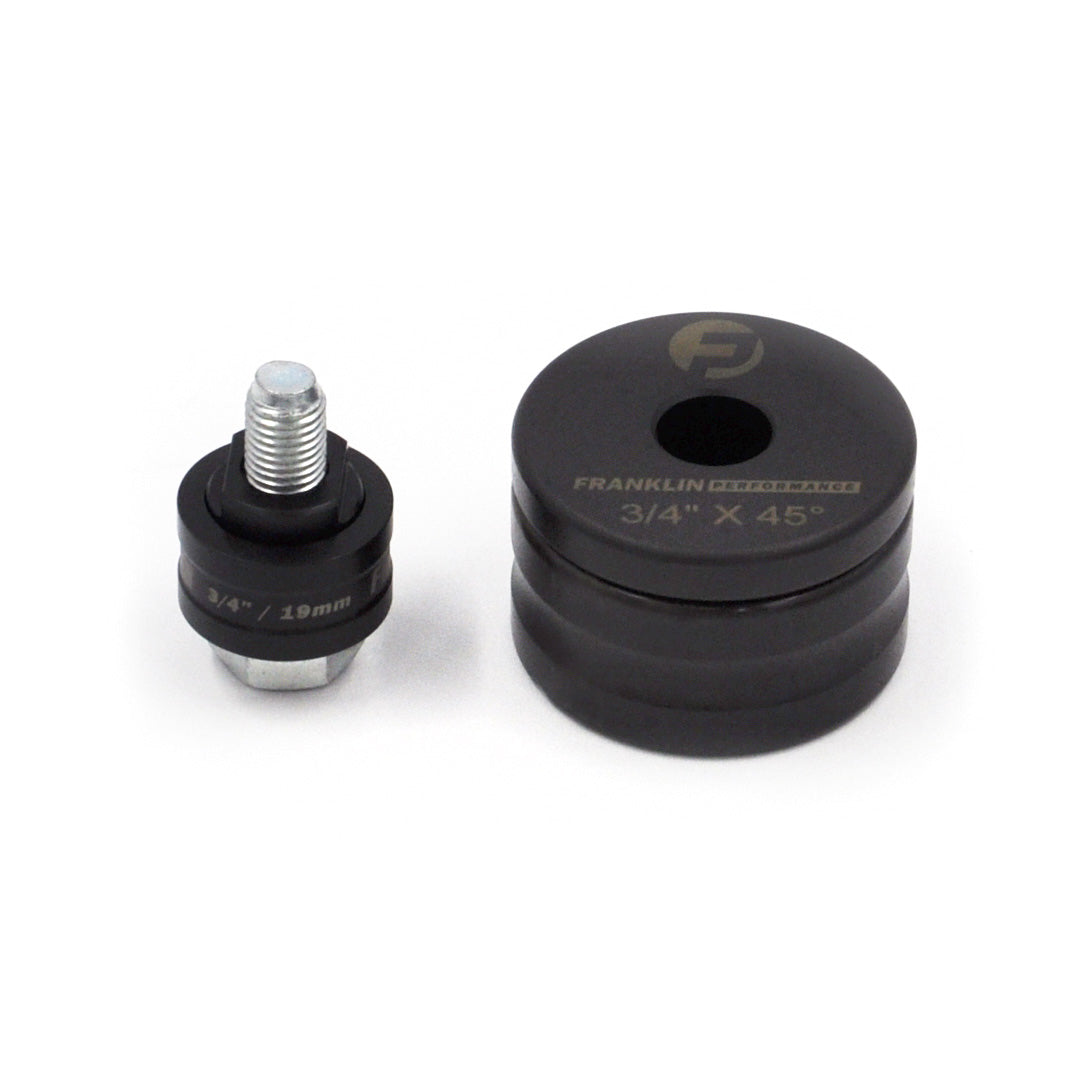

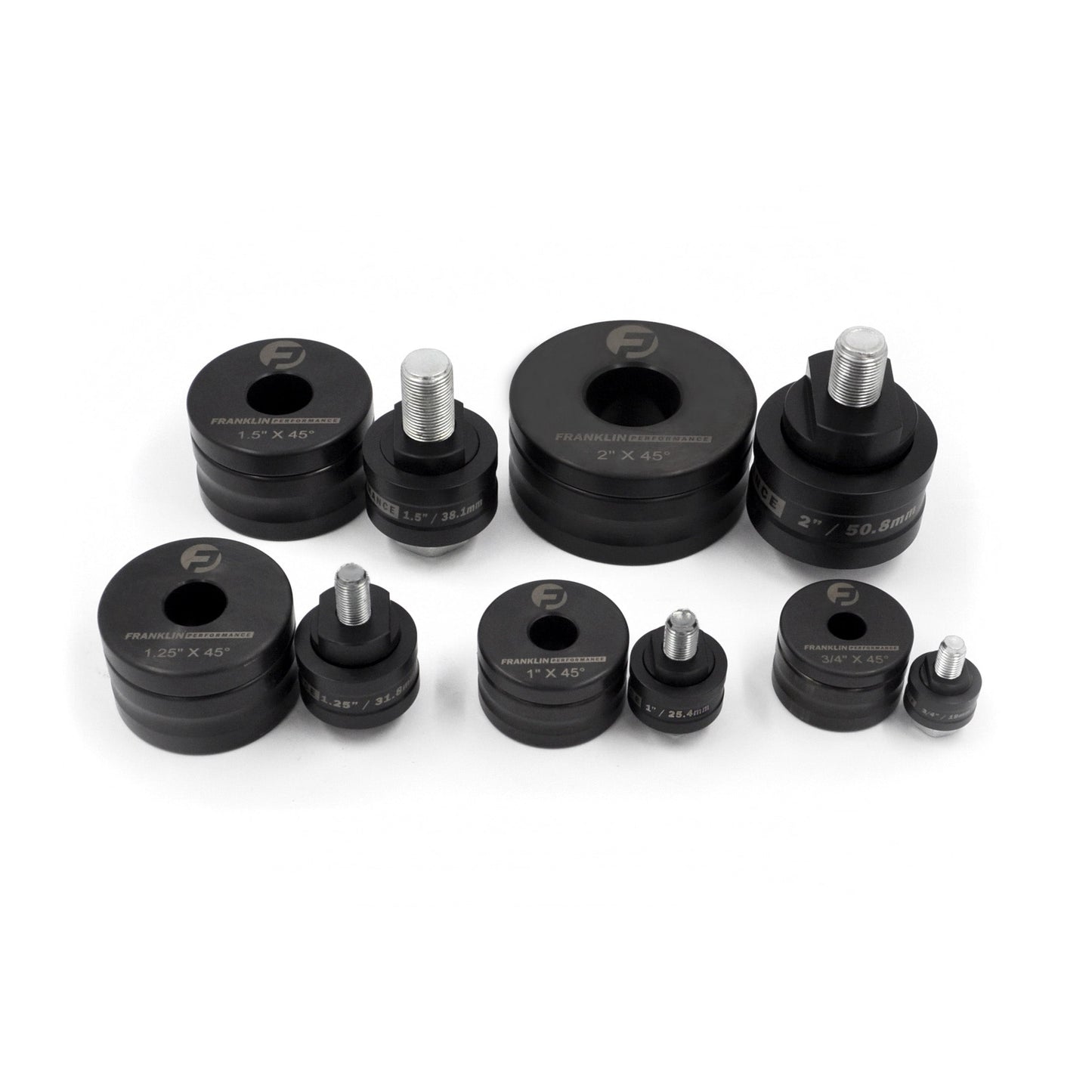

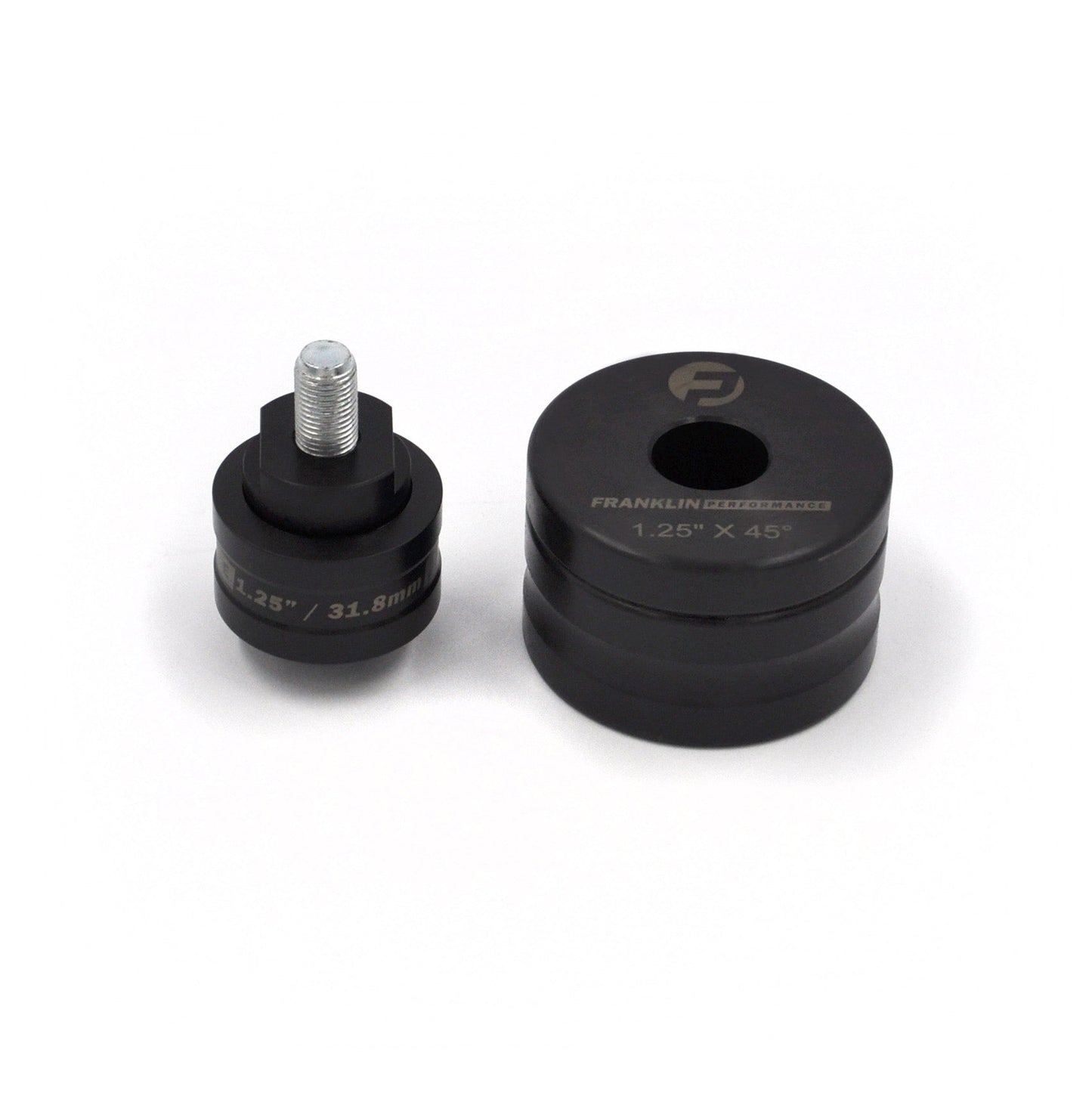

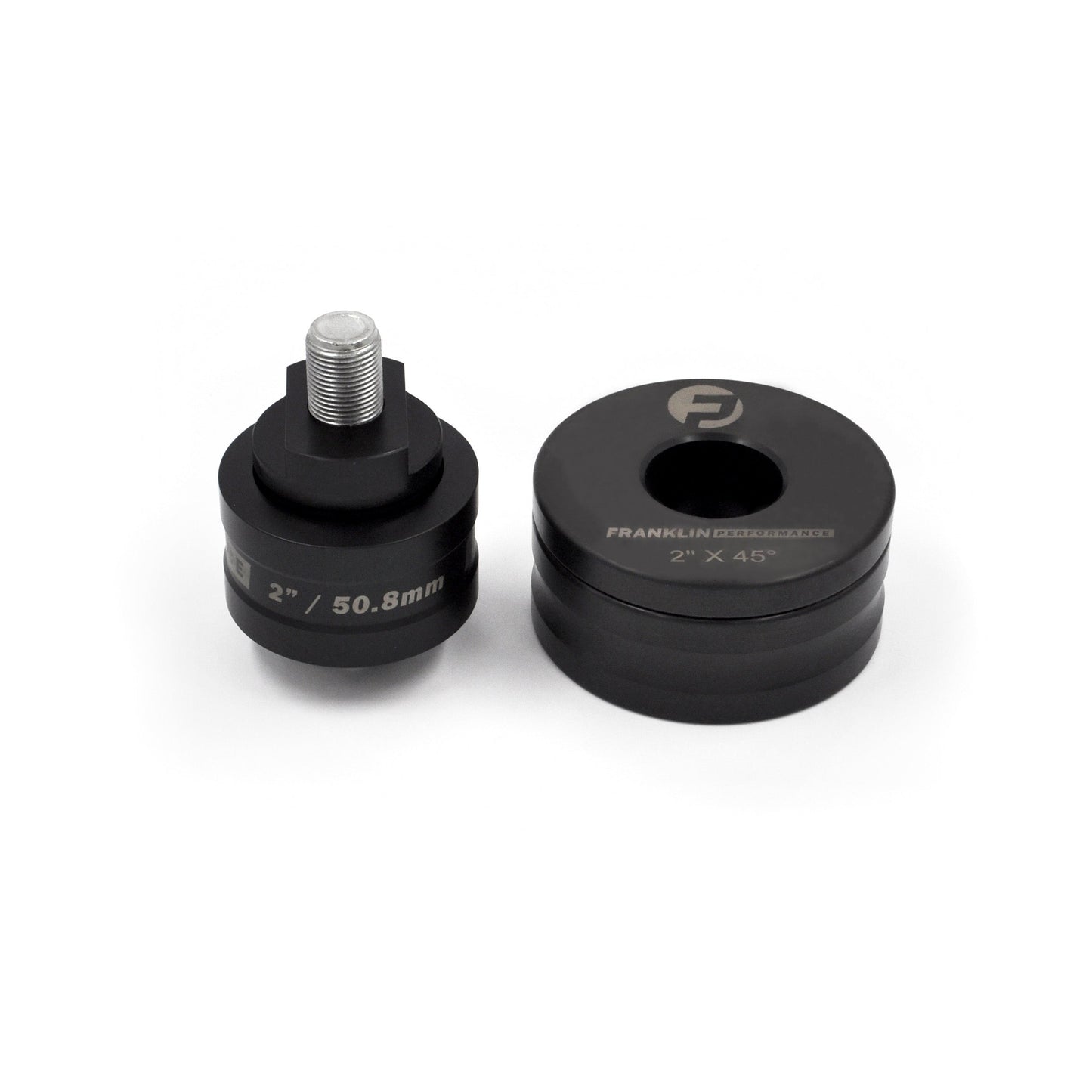

Franklin Performance Chassis Punch & Dimple Die Combo
Franklin Performance Chassis Punch & Dimple Die Combo
Regular price
$102.00 NZD
Regular price
Sale price
$102.00 NZD
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
- THIS IS A SPECIAL ORDER ITEM. Once you complete your order, we will then order it from the supplier. If you are urgently needing this item contact us for an accurate ETA from our supplier before purchasing!
Couldn't load pickup availability
Chassis Punches, also known as a screw punch or a knockout punch are used to easily punch holes in sheet metal. A smaller hole is pre-drilled into the material and then the chassis punch used to enlargen the hole.
Cutting capacity:
- Aluminium, brass, copper: 4.0mm
- Mild steel 3.0mm
- Stainless steel 1.5mm
Dimple dies are used to improve the strength and appearance of a panel by flaring an existing hole made by a Chassis Punch in sheet metal up to 1/8" or 3mm thick.
The dies work great in a press or ironworker, and the smaller sizes can also be used with a nut & bolt on lighter steel or aluminium.
Both the Chassis Punches and Dimple Dies are made from high strength alloy steel and have a heat treatment with a unique oil impregnation to prevent corrosion, both are built to last a lifetime.
