GFB Hybrid Dual Outlet Valve - Custom Weld-on Applications - GFB T9219
GFB Hybrid Dual Outlet Valve - Custom Weld-on Applications - GFB T9219
Regular price
$349.00 NZD
Regular price
Sale price
$349.00 NZD
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
- THIS IS A SPECIAL ORDER ITEM. Once you complete your order, we will then order it from the supplier. If you are urgently needing this item contact us for an accurate ETA from our supplier before purchasing!
Couldn't load pickup availability

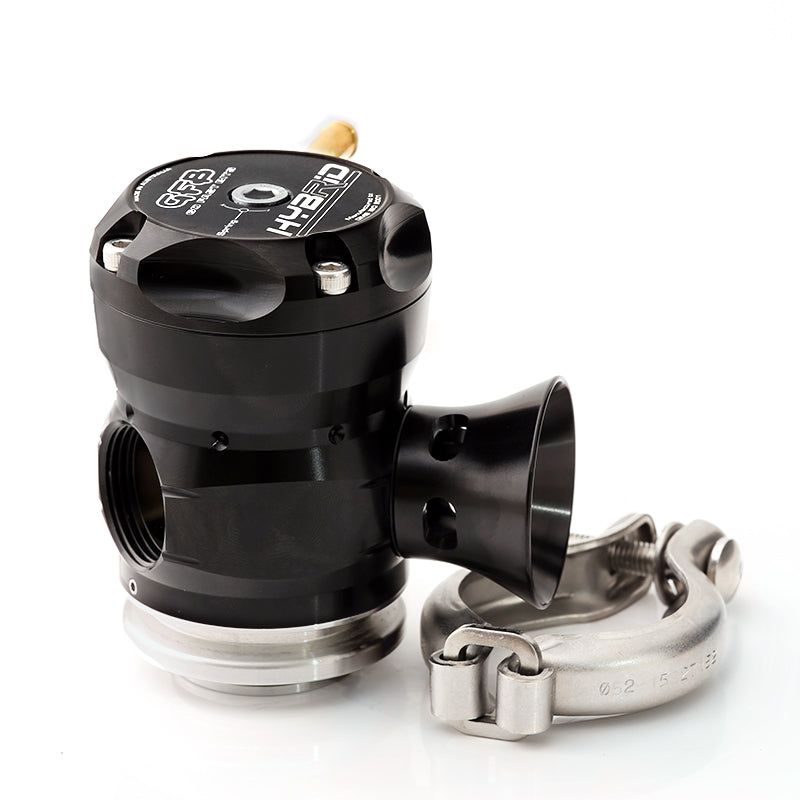

HYBRID with V-BAND Mounting System
For Custom Weld-On Applications
Using a v-band mounting system, the T9219 kit is the perfect option when you want a Hybrid valve that can be mounted directly to your aluminium or stainless intercooler piping.
NOTE: The T9219 kit comes with just the valve and v-band clamp. To finish the installation, you will need to purchase the appropriate weld-on flange and outlet fitting to suit your specific application. This saves you paying more for extra adaptors that you don’t end up using.
Weld on v-band flange materials available:
- 6061 Aluminium – part #5352
- 304 Stainless Steel – part # 5353
Outlets sizes available:
- 20mm – part # 5220
- 25mm – part # 5225
- 27mm – part # 5227
- 30mm – part # 5230
- 33mm – part # 5233
- 38mm – part # 5238
Hose plug sizes available (if you want to plug the recirc hose and vent the Hybrid 100% to atmosphere):
- 20mm – part # 5520
- 25mm – part # 5525
- 27mm – part # 5527
- 30mm – part # 5530
- 33mm – part # 5533
- 38mm – part # 5538
