Haltech Nexus R3 VCU + Plug and Pin Set - HT-193100

Haltech Nexus R3 VCU + Plug and Pin Set - HT-193100

$4,162.00 NZD
$4,162.00 NZD
Sale Sold out
Taxes included. Shipping calculated at checkout.
  • THIS IS A SPECIAL ORDER ITEM. Once you complete your order, we will then order it from the supplier. If you are urgently needing this item contact us for an accurate ETA from our supplier before purchasing!
Plug and Pins Only AMP 34 Pin 4 Row 3 Key Superseal
Plug and pins only AMP 34 pin 4 Row 4 Key Superseal
Plug and pins only - Male Deutsch DTP-06-4S - Black connector (25Amp)
VCU OVERVIEW
Nexus R3 combines the functionality of a power distribution module, a data logger, a wideband controller and a state-of-the art engine management system in one powerful device we call a VCU (Vehicle Control Unit).
  • 4 x 25A (continuous) push-pull PWM capable (5 kHz) outputs (for power to injectors / coils, transbrake, thermofan, fuel pump)
  • 8 x peak/hold injector drivers (can be used as low side drive outputs)
  • 8 x low current ignition outputs (can be used as low side drive outputs)
  • 6 x low side drive outputs, PWM capable (DPOs)
  • 6 x push-pull / h-bridge outputs (8A, PWM capable), eg for electronic throttle
  • 11 x 0-5V analog inputs with redundancy for electronic throttle and switchable 5V pullup
  • Trigger and home inputs with differential inputs, adjustable thresholds and glitch filters
  • 6 x synchronous pulsed inputs, zero crossing or adjustable thresholds - cam sensor inputs, frequency inputs or 0-5V analog inputs
  • 1 x on-board wideband controller, supporting NTK and LSU4.9
  • 1 x on-board 4 bar MAP sensor
  • 2 x CAN ports with switchable termination
VCU FEATURES
  • Controlled via NSP (Nexus Software Programmer)
  • Long Term Learning
  • Stepper Motor Control
  • 4D Closed Loop Boost Control
  • Closed Loop CO2 Control
  • Rotational Idle
  • Launch Control
  • Traction Control
  • Anti-Lag
  • Dual Knock Control
  • Trans Brake Control
  • Race Timer
  • Multi Stage Fuel Injection
  • Multi-level Engine Protection
  • 6 Stage Nitrous Control
  • 4-sensor variable cam control
  • Intake Air Bleed Control
  • Flat Shift Control
  • Shock Travel & Ride Height Control
  • Advanced Torque Management
  • On-board Wi-Fi
  • On-board datalogging (128MB)
AUTOMATIC TRANSMISSION CONTROL
  • Ford AODE/4R70W
  • GM 4L60E
  • GM 4L80E
  • Toyota A340E
  • Lenco
  • Liberty

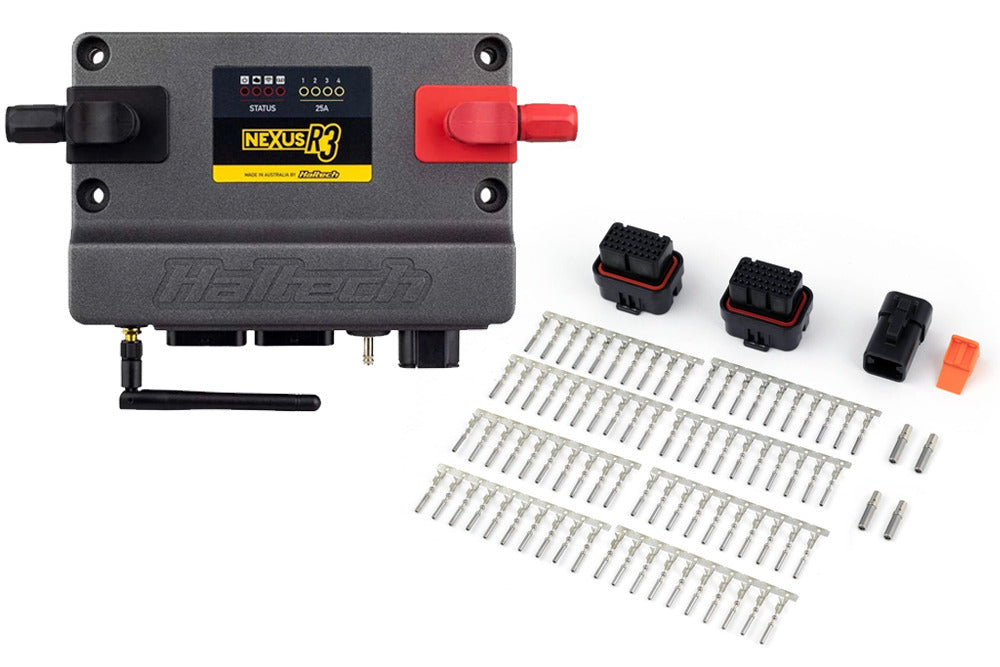

Includes: Nexus R3 VCU, AMP 34 pin key 1 and 34 pin key 2 and DTP-4 Connectors and pins
