Haltech NEXUS R5 VCU - HT-195000

Haltech NEXUS R5 VCU - HT-195000

Outputs: Up to 18 injector and 12 ignition

Suits: Engines with up to 12 cylinders or up to 6 rotors. Racing applications where advanced race features, data logging and power management control is required.

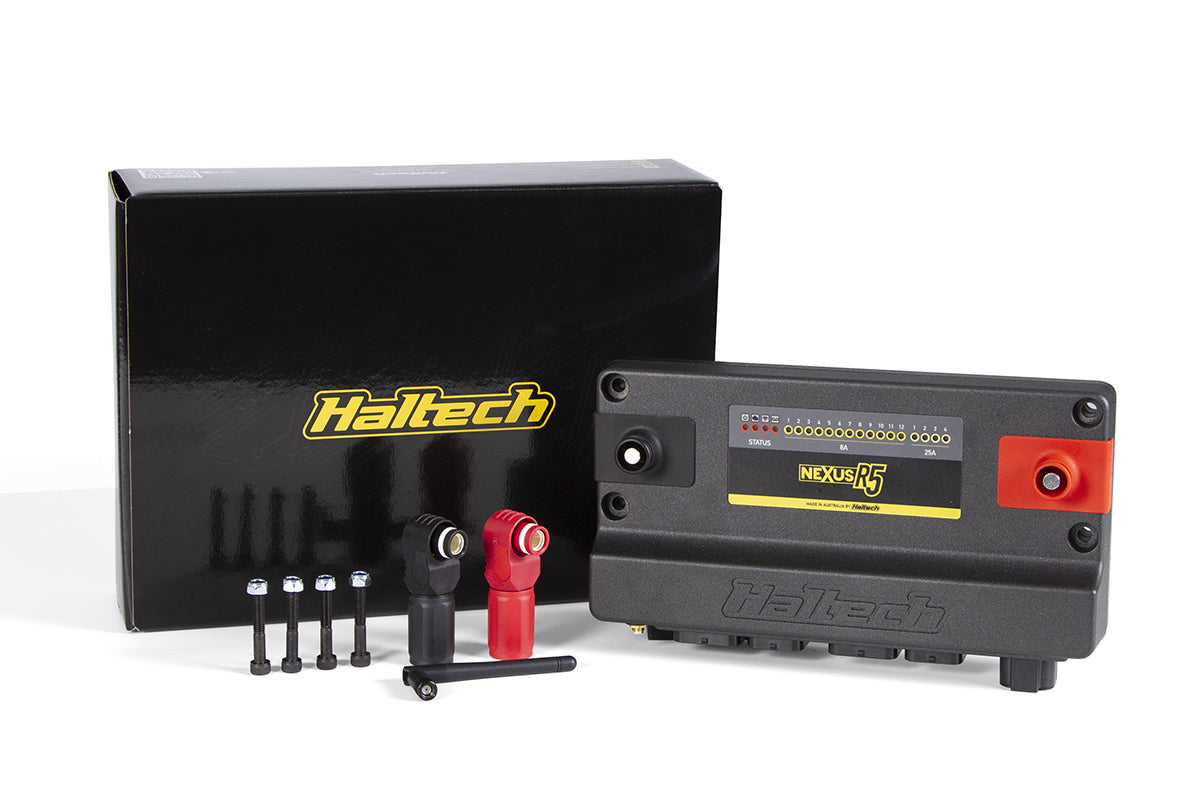

Includes: Nexus R5 VCU, SurLok connectors (Red and Black), Wi-Fi antenna, mounting bolts, USB-C Cable, USB-C dust cap, USB drive with NSP Software.

VCU OVERVIEW

NEXUS R5 is the new Haltech flagship product combining the functionality of a power distribution module, a data logger, a dual channel wideband controller and a state-of-the art engine management system in one powerful device we call a VCU (Vehicle Control Unit). 4 x 25A (continuous) push-pull PWM capable (5 kHz) outputs (for power to injectors / coils, transbrake, thermofan, fuel pump) 12 x 8A (continuous) high side outputs (low speed PWM, 200 Hz) outputs (power to sensors, NOS solenoids, etc) 18 x peak/hold injector drivers (can be used as low side drive outputs) 12 x low current ignition outputs (can be used as low side drive outputs) 8 x low side drive outputs, PWM capable (DPOs) 4 x push-pull / h-bridge outputs (8A, PWM capable), eg for electronic throttle 23 x 0-5V analog inputs with redunancy for electronic throttle and switchable 5V pullup Trigger and home inputs with differential inputs, adjustable thresholds and glitch filters 10 x synchronous pulsed inputs, zero crossing or adjustable thresholds - cam sensor inputs, frequency inputs or 0-5V analog inputs 2 x onboard wideband controllers, supporting NTK and LSU4.9 3 x CAN ports with switchable termination.

Quickstart guide download: Quickstart guide

Wiring diagram download: Wiring diagram
