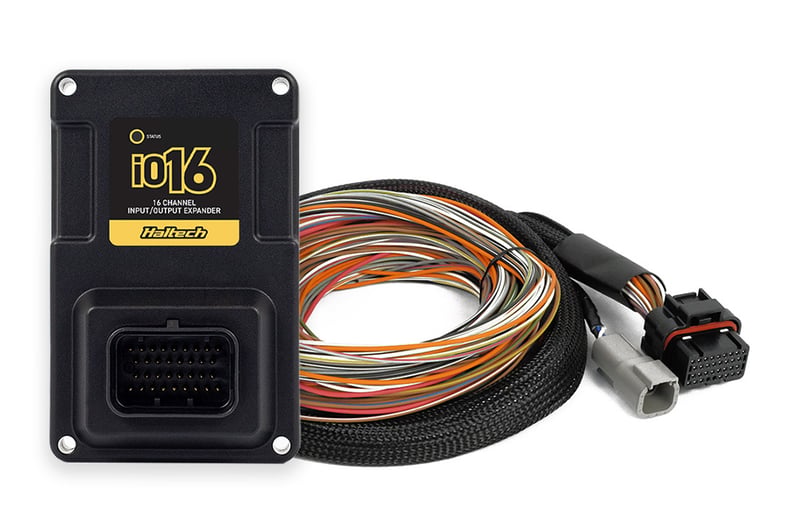

Nexus IO16 Input/Output Expander with Universal Wire in Harness 2.6M (8.5') - HT-196200
Nexus IO16 Input/Output Expander with Universal Wire in Harness 2.6M (8.5') - HT-196200
- THIS IS A SPECIAL ORDER ITEM. Once you complete your order, we will then order it from the supplier. If you are urgently needing this item contact us for an accurate ETA from our supplier before purchasing!
Couldn't load pickup availability
Overview
The Nexus IO16 is a Haltech CAN device that expands the functionality of a Haltech Nexus or Elite ECU by adding 16 user-configurable input and output channels, accessible through the Haltech CAN system.
This harness, when used with a Nexus IO16, expands a Haltech Nexus or Elite ECU's functionality by adding 16 user configurable channels of combined inputs and outputs via the Haltech CAN system
Features
INPUTS
6 x Analogue Voltage Inputs (AVI)
0-5V readable range
Selectable 1k pull-up resistor to 5V
4 x Synchronised Pulsed Inputs (SPI)
Reluctor/Digital
0-5V readable range
Selectable 1k pull-up resistor to 5V
OUTPUTS
6 x Half Bridge Outputs (HBO)
8A current (sink/source)
Capable of 0-100% duty cycle
2.2khz switching speed
NOT suitable for DBW throttle application
WARNING - When using HBOs, ensure the Nexus IO16 is powered using the constant power pins and power ground pins.
OTHERS
3 x 5V output (sensor power)
4 x Sensor ground
Note: Any 5V and sensor ground pins can be paired when wiring sensors.
