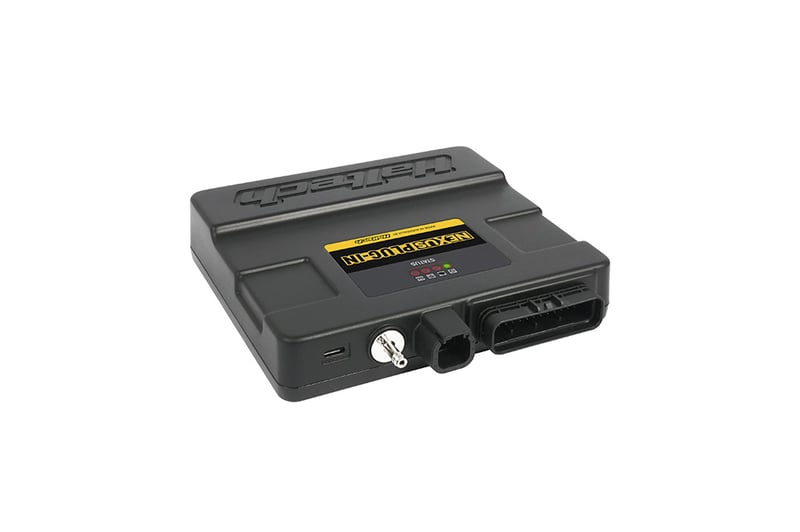

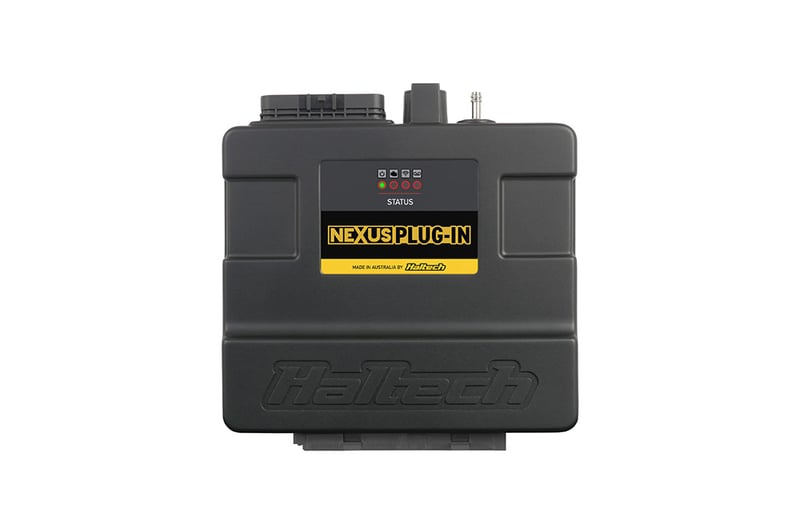

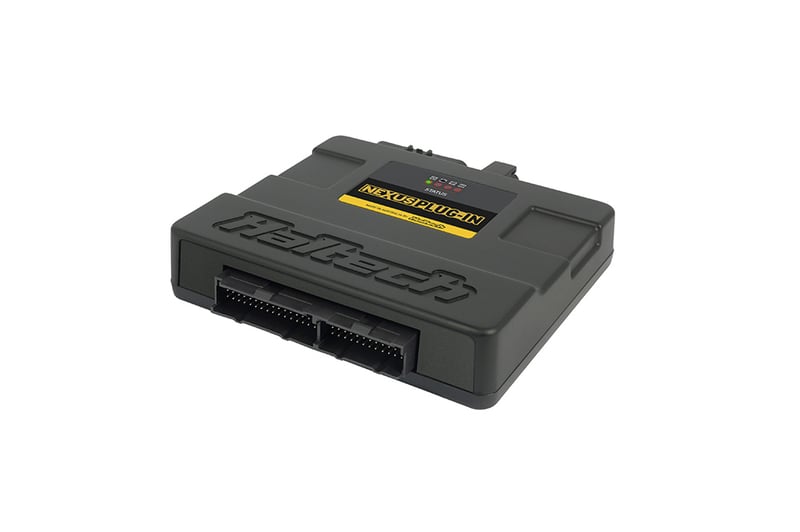

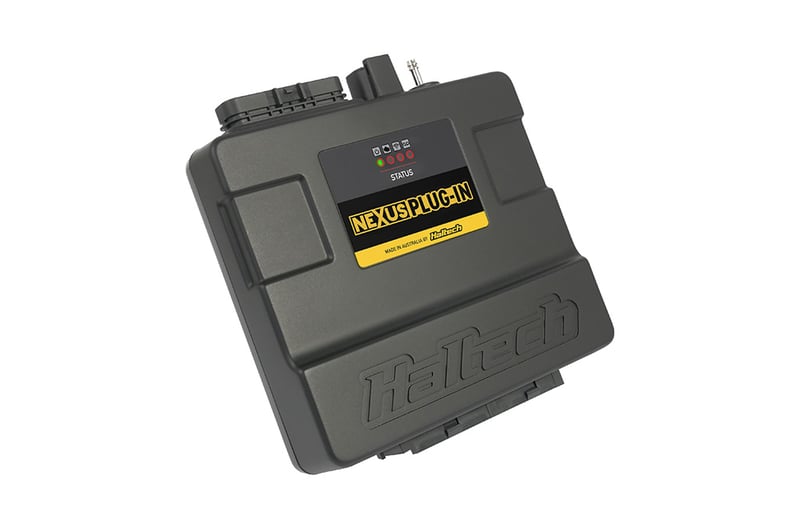

Nexus Plug-in ECU - GM Delco - HT-230801
Nexus Plug-in ECU - GM Delco - HT-230801
- THIS IS A SPECIAL ORDER ITEM. Once you complete your order, we will then order it from the supplier. If you are urgently needing this item contact us for an accurate ETA from our supplier before purchasing!
Couldn't load pickup availability
Suits
Holden Commodore VN-VP V6 (DFI module), automatic and manual transmissions Holden Commodore VN-VP V8 (Distributor), automatic and manual transmissions Holden Commodore VR-VS V8 (Distributor), manual transmissions only; Does not support VS Series III Holden Commodore VR V6 (DFI module), manual transmission only
Includes
Nexus Plug-in ECU, Air temperature + Wideband expansion harness 2.5m (8') and spare pins, Air temperature sensor (1/8 NPT), Mounting hardware, vacuum hose, T-piece, USB cable, Quick Start Guide.
Overview
Nexus GM Delco plug-in brings modern control and wireless connectivity to your classic Commodore.
Effortless Setup
Get up and running quickly using the intuitive Nexus Set-up Wizard.
Wireless Control
Connects directly via Bluetooth to the Haltech Connect App for easy adjustments and monitoring.
Future Proof
Expand your functionality easily with the optional expansion harness and CAN devices.
Simple Install
Supplied with mounting bracket for ease of fitment.
This Nexus Plug-in ECU is compatible with the following vehicles:
Holden Commodore VN-VP V6 (DFI module), automatic and manual transmissions
Holden Commodore VN-VP V8 (Distributor), automatic and manual transmissions
Holden Commodore VR-VS V8 (Distributor), manual transmissions only; Does not support VS Series III
Holden Commodore VR V6 (DFI module), manual transmission only

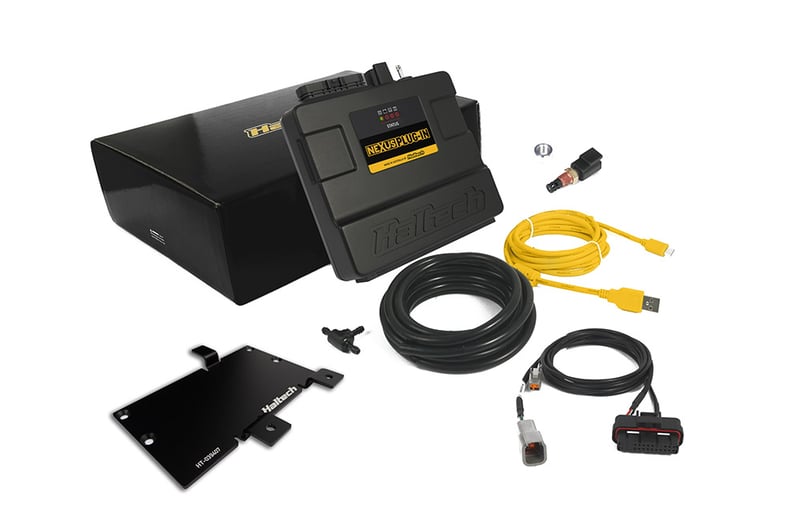

Nexus Plug-in ECU includes
Nexus GM Delco ECU

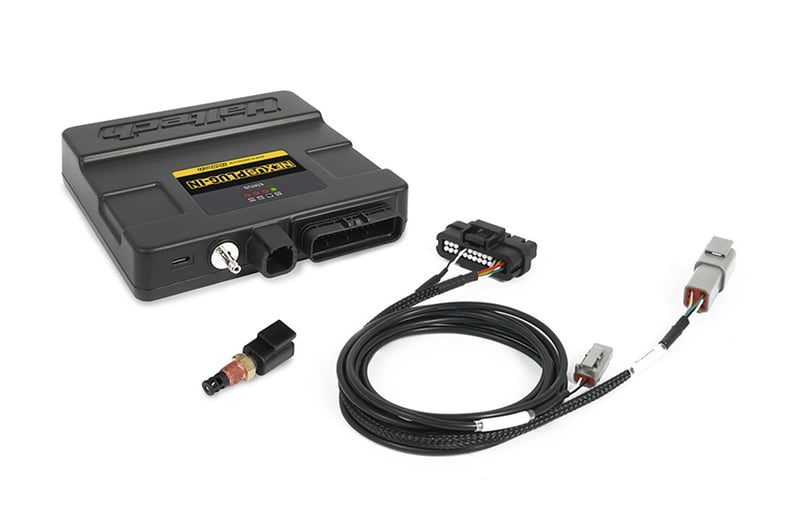

Air temperature + Wideband expansion harness 2.5m (8')
Air temperature sensor (1/8' NPT)
Aluminium weld on fitting for air temperature sensor
Mounting bracket and hardware
3mm Vacuum hose 2.5m (8')
3mm Aluminium Vacuum T piece
Haltech USB-C cable
Quick start guide
Features
NEXUS PLUG-IN ECU FEATURES
Single Channel Onboard Wideband Control - Supports LSU4.9/NTK
Wi-Fi
Long term learning
4 channel onboard oscilloscope
Data logging 128MB
Flex Fuel
Closed Loop O2 Control
Knock Control
Advanced torque management
Engine Protection
Idle stepper motor control
AUXILIARY CONNECTOR
4 X Digital Pulsed Outputs
4 X Synchronised Pulsed Inputs
4 X Analogue Voltage Inputs
1 X Onboard Wideband
2 X Sensor Ground
2 x 12V Output
2 x 5V Output
SUPPORTED OEM FUNCTIONALITY:
DFI module + factory coil packs (V6)
Ignition module + distributor
Ignition bypass signal
Multi-point injection - two injector outputs, each driving three or four high impedance injectors
NOT SUPPORTED OEM FUNCTIONALITY
MAF sensor
Narrowband O2 sensor
