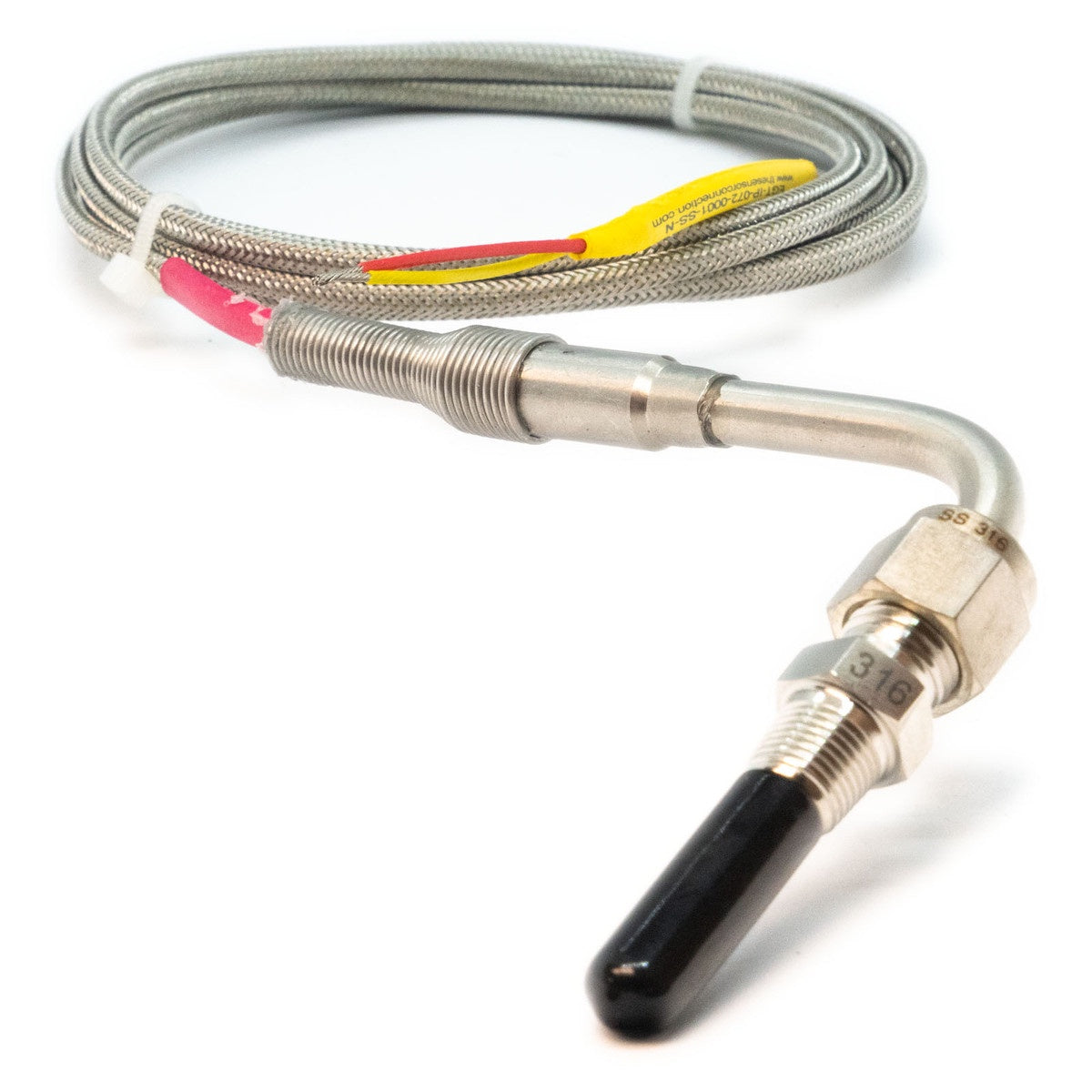

Link Exhaust Gas Temperature Probe (EGT) - 101-0146
Link Exhaust Gas Temperature Probe (EGT) - 101-0146
- THIS IS A SPECIAL ORDER ITEM. Once you complete your order, we will then order it from the supplier. If you are urgently needing this item contact us for an accurate ETA from our supplier before purchasing!
Couldn't load pickup availability
Extreme Duty Fast Response EGT Temperature Probe
- Type K thermocouple probe
- Exposed sensing junction for fastest response
- Includes 316 SS adjustable compression fitting
- Stainless steel protected wires
- Designed for extreme engine test & racing environments
When using this with an ECU other than the Thunder, you will need to use an amplifier.
Specifications
Thermocouple type: K
Range: -148 to 2372°F (-100 to 1300°C)
Accuracy: +/-0.4% of reading or about +/- 1.1°C (Special Limits of Error)
Probe diameter: 1/4 inch (0.250 inch) (6.35 mm)
Sensing Junction: Exposed, Ungrounded
Response Time*: 150 mS
*Time Constant: Defined as the time required to reach 63.2% of an instantaneous temperature change
Five time constants are required to approach 100% of the step change value
Outer Sheath Material: Inconel, melting point 2550°F (1400°C)
Cable: Stainless steel overbraiding over Teflon™ insulated, stranded wires, 20 gauge. 6ft / 1.8m in length.
Compression Fitting: 316 stainless steel, adjustable, 1/8 inch –27 NPT male thread
Wiring: + = Yellow – = Red
