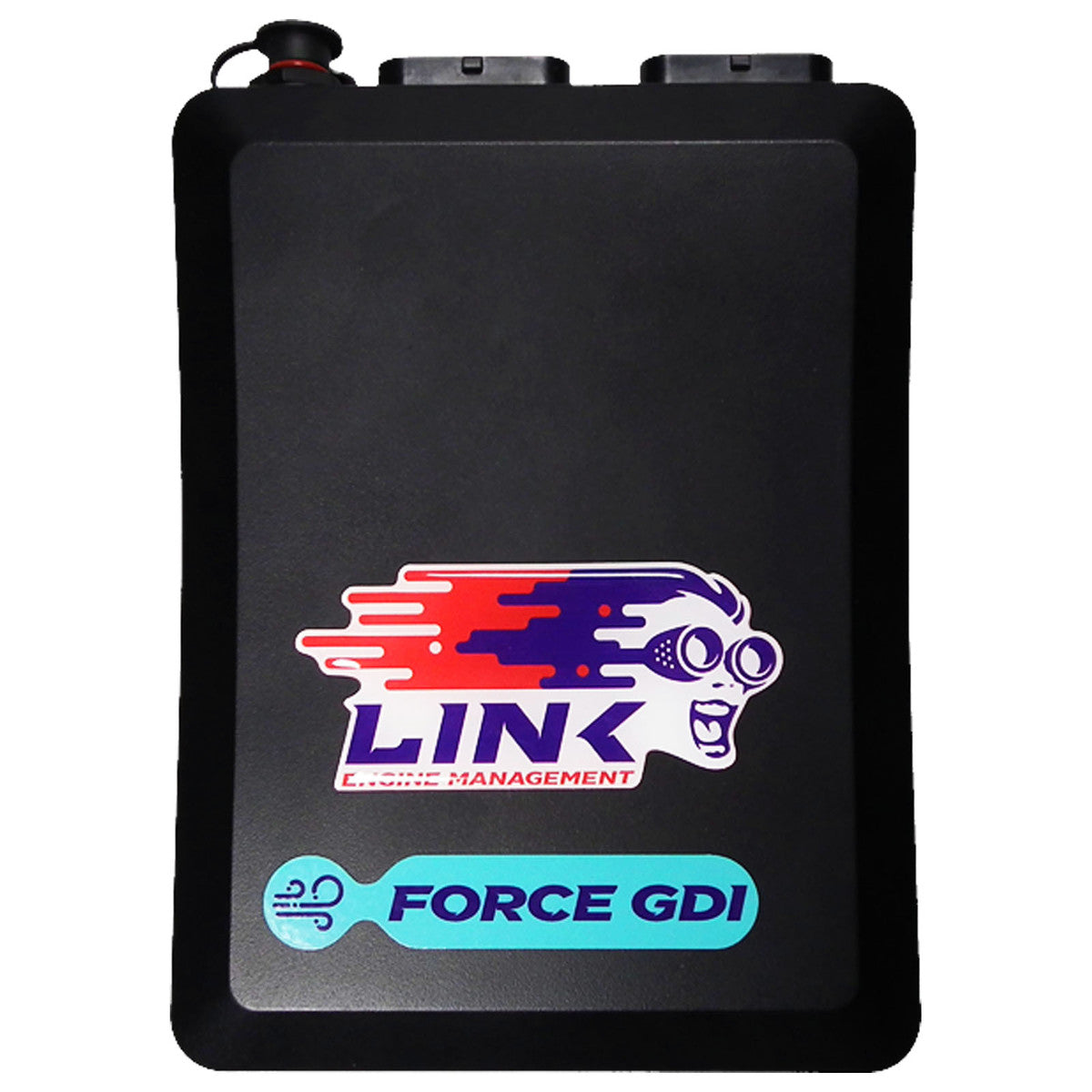

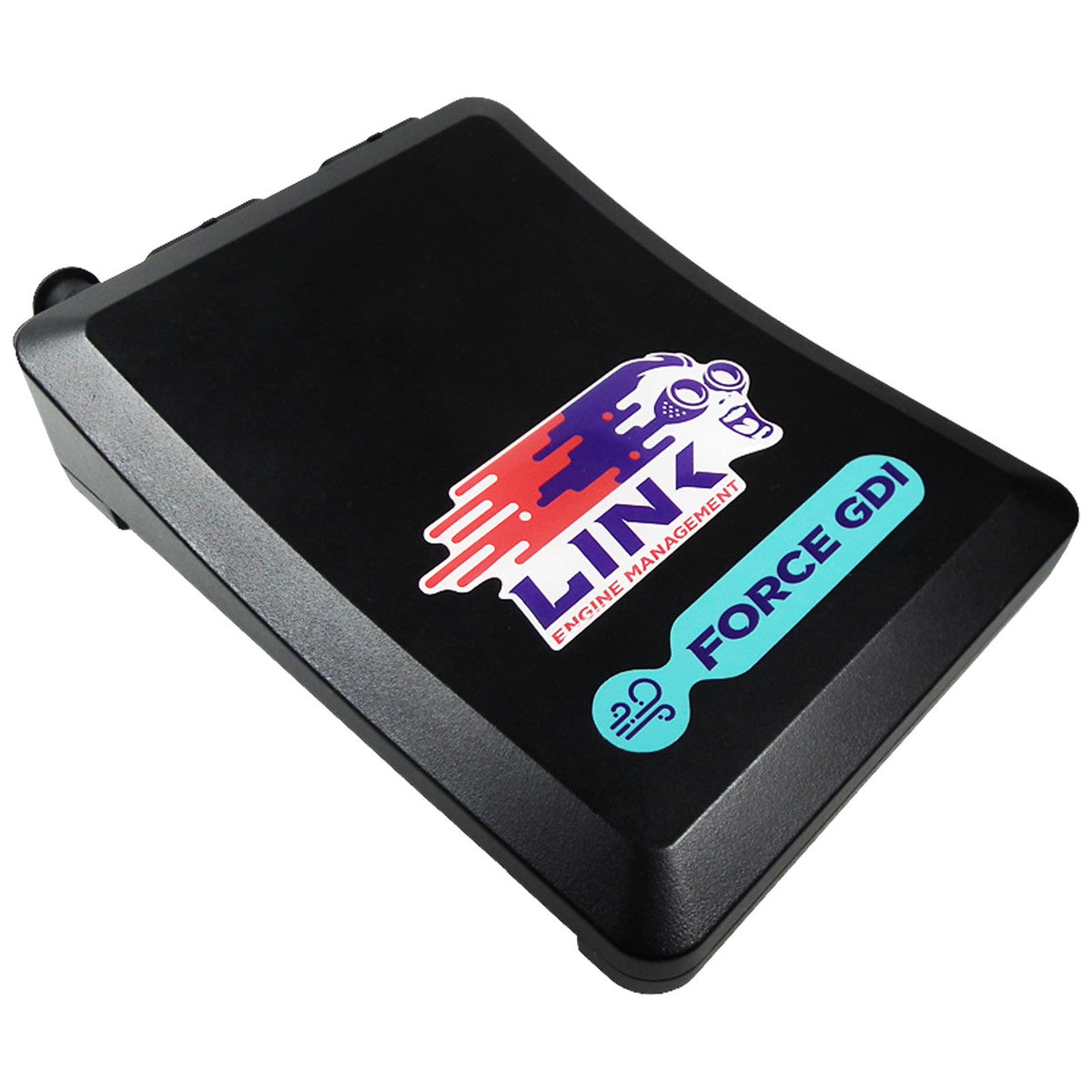

Link G4+ Force GDI

Part Number: 120-1000

G4+ FORCE GDI The Force GDI is our first
ECU built specially to control Gasoline Direct Injection engines. As well as full GDI control, the Force GDI offers
on-board digital wideband, E-throttle control, high voltage injector and high
pressure fuel pump management, plus all the other features you have come to
expect from one of Link’s world leading ECUs. The Force
GDI can control up to 4 cylinders with direct injection. Please confirm with LinkECU's tech support if your
engine is supported before purchasing.

Features: Download the Force GDI Quickstart Guide
SPEC OVERVIEW:
Inputs
8/10* x Digital inputs
4 x Temperature inputs
11 x Analog inputs
2 x Trigger inputs
2 x Knock inputs
1 x LSU 4.9 Wideband lambda sensor input
*2 inputs required when using 2nd CAN Bus
Outputs
4 x High voltage injector drivers (60V 10/5A Peak/Hold
Current)
1 x GDI pump/Spill valve driver (11.8/6A Peak/Hold)
4 x Ignition drivers
10 x Auxiliary outputs^
+5V Sensor power supply
+8V Sensor power supply
^unused ignition drives can be used as additional Aux
outputs
Communications
2* x CAN bus
1 x Serial (RS232) connection
1 x USB tuning connection
Physical
Dimensions: 185mm(L) x 130mm(W) x 40mm(H) (without looms)
Mass: 680grams
Advanced features found only on the Force GDI:
4 high voltage Boost/Peak/Hold GDI injector drives, user
definable voltage, current and durations.
1 Spill valve/GDI pump driver, peak & hold or
saturated mode. User definable current.
What's in the box?
Supplied with USB tuning cable and mounting bracket. Requires “A” & “B” looms or “A” & “B”
connector kits.
