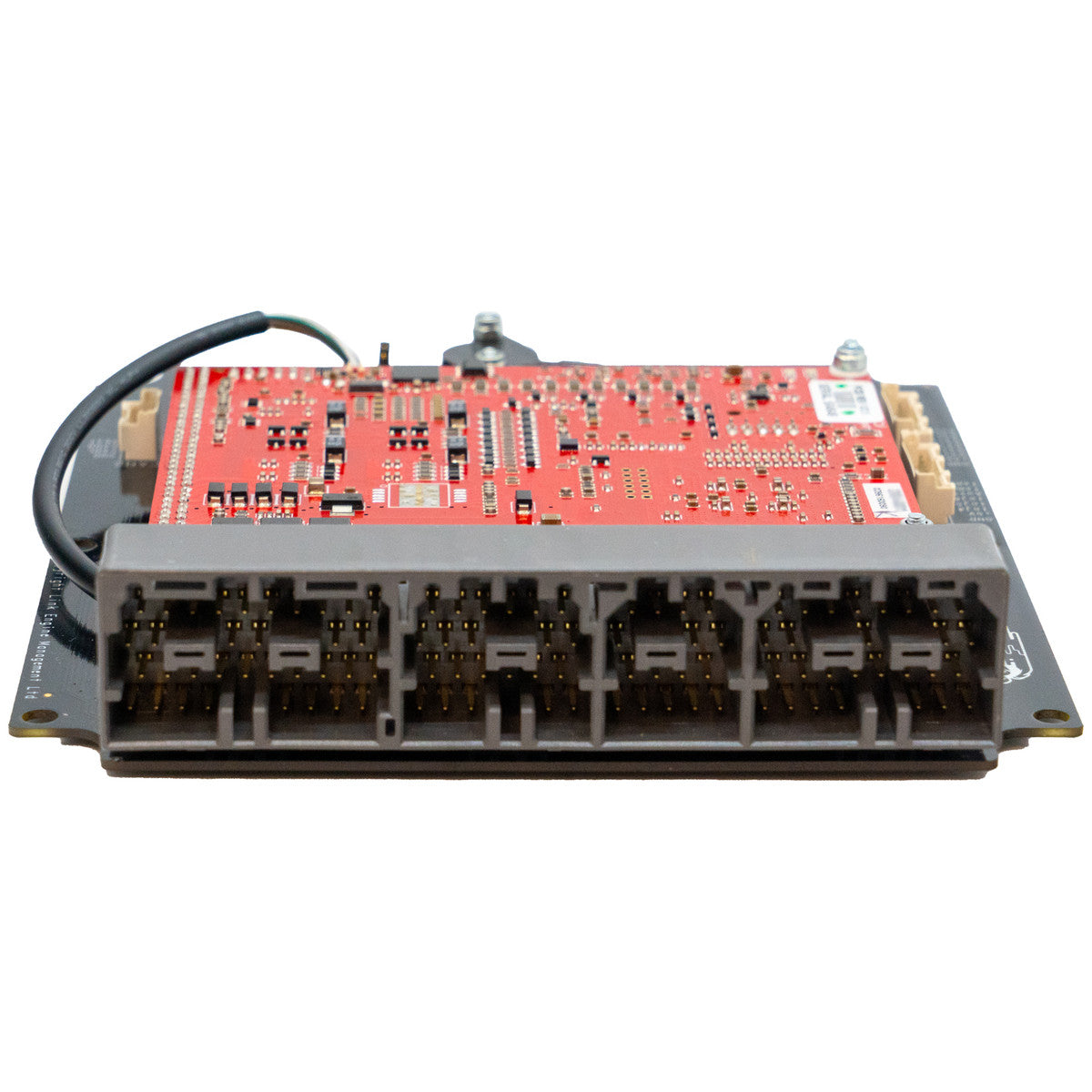

Link G4X Toyota JZX90 ECU (Plug In)

Link G4X Toyota JZX90 ECU (Plug In)

$2,754.25 NZD
$2,754.25 NZD
Sale Sold out
Taxes included. Shipping calculated at checkout.
  • THIS IS A SPECIAL ORDER ITEM. Once you complete your order, we will then order it from the supplier. If you are urgently needing this item contact us for an accurate ETA from our supplier before purchasing!



Easy to install. Affordable. Reliable.

G4X PlugIn ECUs offer the latest in engine management technology, designed to easily maximize the potential from your car. This ECU fits inside the factory OEM enclosure. Installation is a breeze, with no alteration of the factory wiring loom required for the models listed below.

Designed for the 1JZ-GTE (Non-VVTi) engine.
  • Please check your connector matches the header in the listed photo before purchasing.
  • This ECU works for manual transmissions only.
  • ECU includes an onboard 7 bar MAP sensor.
  • Most factory features are supported. Check the features tab for I/O expansion options
Suitable applications:
  • Toyota JZX90 (Chaser/Cresta/Mark II Tourer-V) with 1JZ-GTE (Non-VVTi) engine, Manual Transmission
  • Toyota JZZ30 (Soarer) with 1JZ-GTE (Non-VVTi) engine, Manual Transmission

Note: This Plug-in features a new 4 pin powered CAN connector and cannot use the old CANPCB cable for CAN connection. Use the CANJST4 (Link PN 101-0198) cable for connecting CAN devices. This new 4 pin port and cable provide not only the CAN connection, but also a protected 12V power supply and ground for powering the CAN devices. The power supply is protected by a self-resetting fuse rated at 3A continuous.

Click here to download the full Specifications PDF.

G4X PlugIn Key Features (where applicable):
Up to 6D fuel and ignition mapping
Precision closed loop cam control (four cam, independent control)
Sequential fuel delivery
Digital triggering, all OEM patterns
OEM idle hardware supported
5D boost control with three switchable tables
Motorsport features - antilag, launch, flat shift
Continuous barometric correction (on board)
CAN port
QuickTune - automated fuel tuning
Individual cylinder correction
USB tuning cable included
Stats recording into on-board memory
Gear compensations for spark, boost and fuel
Real time selectable dual fuel, ignition and boost maps
Sync and crank sensors can be a combination of Hall effect, variable reluctance or optical
Boost control referenced to gear, speed or throttle position
512 mega bytes data logging memory
Staged injection
Knock with "windowing"

I/O Expansion Options:
The following expansion connector inputs/outputs are provided:

Expansion Connector 1  (J3)
Pin 1               Ground (signal)
Pin 2                +5v out
Pin 3                Injector 4
Pin 4                Injector 5
Pin 5                Injector 6
Pin 6                AUX 4
Pin 7                AN TEMP 4
Pin 8                AN TEMP 3

Expansion Connector 2 (J9)
Pin 1               Ground (signal)
Pin 2                +5v out
Pin 3                DI7
Pin 4                DI8
Pin 5                DI9
Pin 6                An Volt 8
Pin 7                An Volt 9
Pin 8                An Volt 10

E-Throttle Connector (J5)
Pin 1                Ground (signal)
Pin 2                +5V out
Pin 3                An Volt 4
Pin 4                An Volt 5
Pin 5                An Volt 6
Pin 6                An Volt 7
Pin 7                Aux 10
Pin 8                Aux 9

(235-4000)
