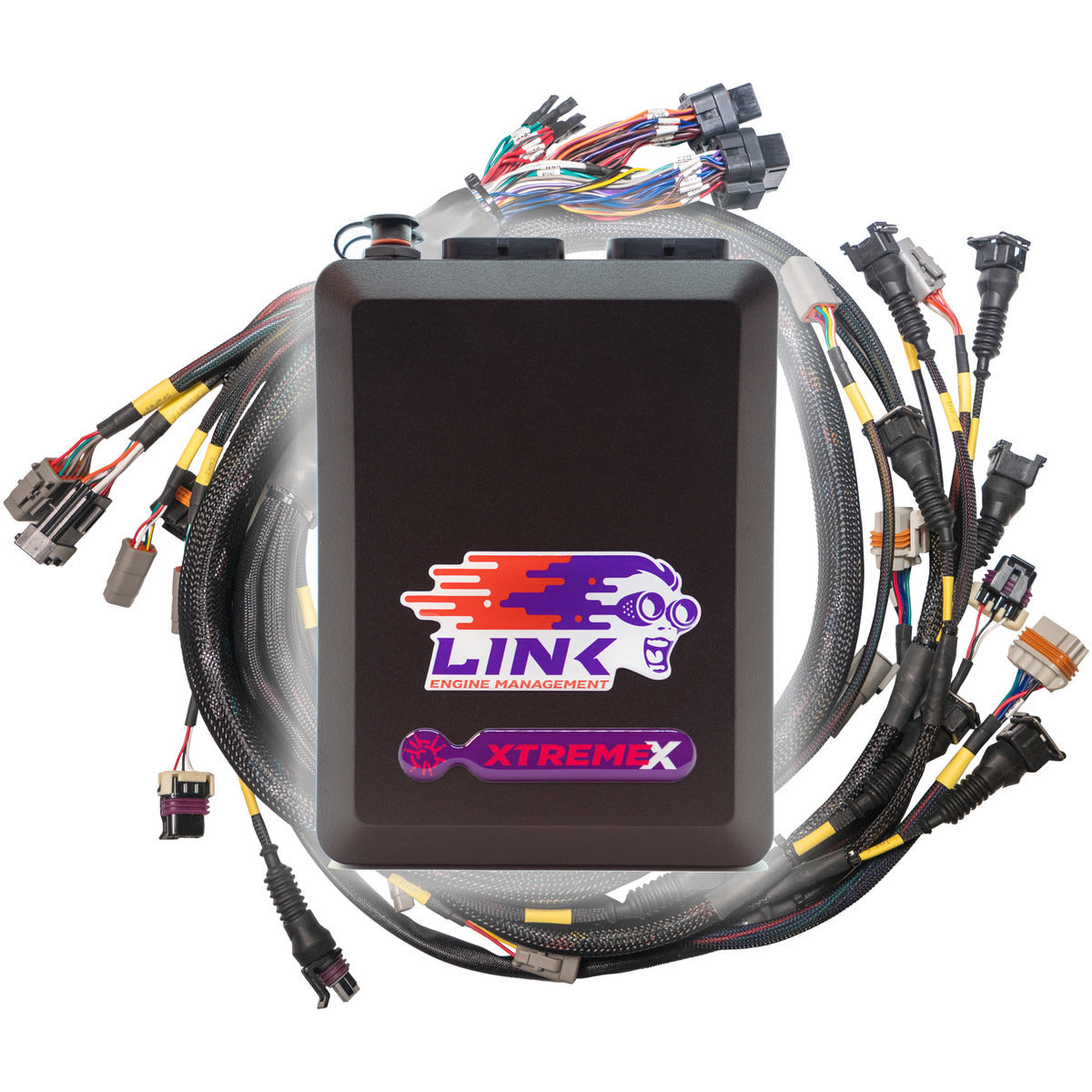

Link G4X XtremeX ECU + Terminated LS Engine Harness Drive-by-Wire Bundle - 109-9000B
Link G4X XtremeX ECU + Terminated LS Engine Harness Drive-by-Wire Bundle - 109-9000B
Regular price
$5,058.85 NZD
Regular price
Sale price
$5,058.85 NZD
Taxes included.
Shipping calculated at checkout.
- THIS IS A SPECIAL ORDER ITEM. Once you complete your order, we will then order it from the supplier. If you are urgently needing this item contact us for an accurate ETA from our supplier before purchasing!
Couldn't load pickup availability
The quickest, easiest, tidiest and most cost effective way to connect a Link ECU to your Drive-by-Wire/E-Throttle LS V8 engine.
Bundle Includes:
- G4X XtremeX ECU (8 x Injector and 8 x Ignition Drives)
- Terminated Engine Harness GM LS GEN3/4*
- LS DBW Adapter Loom
*Notes for use with Gen 4 Engines
- A cam sensor harness extension will be needed to accommodate the Gen 4 LS front mounted cam sensor.
- A small modification is required to the crank sensor connector. See “crank connector” section in installation manual for details.
- Injector Connector Adapters to USCar connector will be required for most Gen 4 Engines. Check your injector connector to confirm. Use Link PN 101-0287
- To support Gen 4 factory knock sensors you will require the Link LS Gen 4 Knock Adapter Loom (PN 101-0306)
- To support the factory Gen 4 MAP sensor you will require a Link LS Map Adapter Loom plus a Gen 3 to Gen 4 MAP sensor extension harness (alternatively you can use a Link MAP sensor which is directly supported by the harness)
PCLink MAP Files
Gen3 DBW Base Map for G4X XtremeX/StormX
Gen4 DBW Base Map for G4X XtremeX/StormX
Harness Manual
