Link G5 Voodoo Pro - 153-5000

G5 Voodoo Pro puts real magic in your hands and opens a new world of possibilities with the ability to control port plus direct injection, more injector and ignition drives, advanced communications and many more features.

With 12 Injection, 8 Ignition and 4 multi-purpose (inj, ign, aux) drives (24 total) the G5 Voodoo Pro can run up to:

· 12 cylinders port or direct injection and direct spark, or

· 8 cylinders with direct/port staged injection and direct spark.

The supported cylinder count depends on the type and number of fuel pumps used.

For more information please see the Features and Specifications tab or view our Product Introduction page here.

The G5 Voodoo Pro works on a variety of vehicles, please contact a LinkECU Reseller or Technical Support for advice regarding your specific project.

Click here to head to the Knowledge Base for more technical information (includes downloads for the Quick Start Guide and I/O table).

In the box:

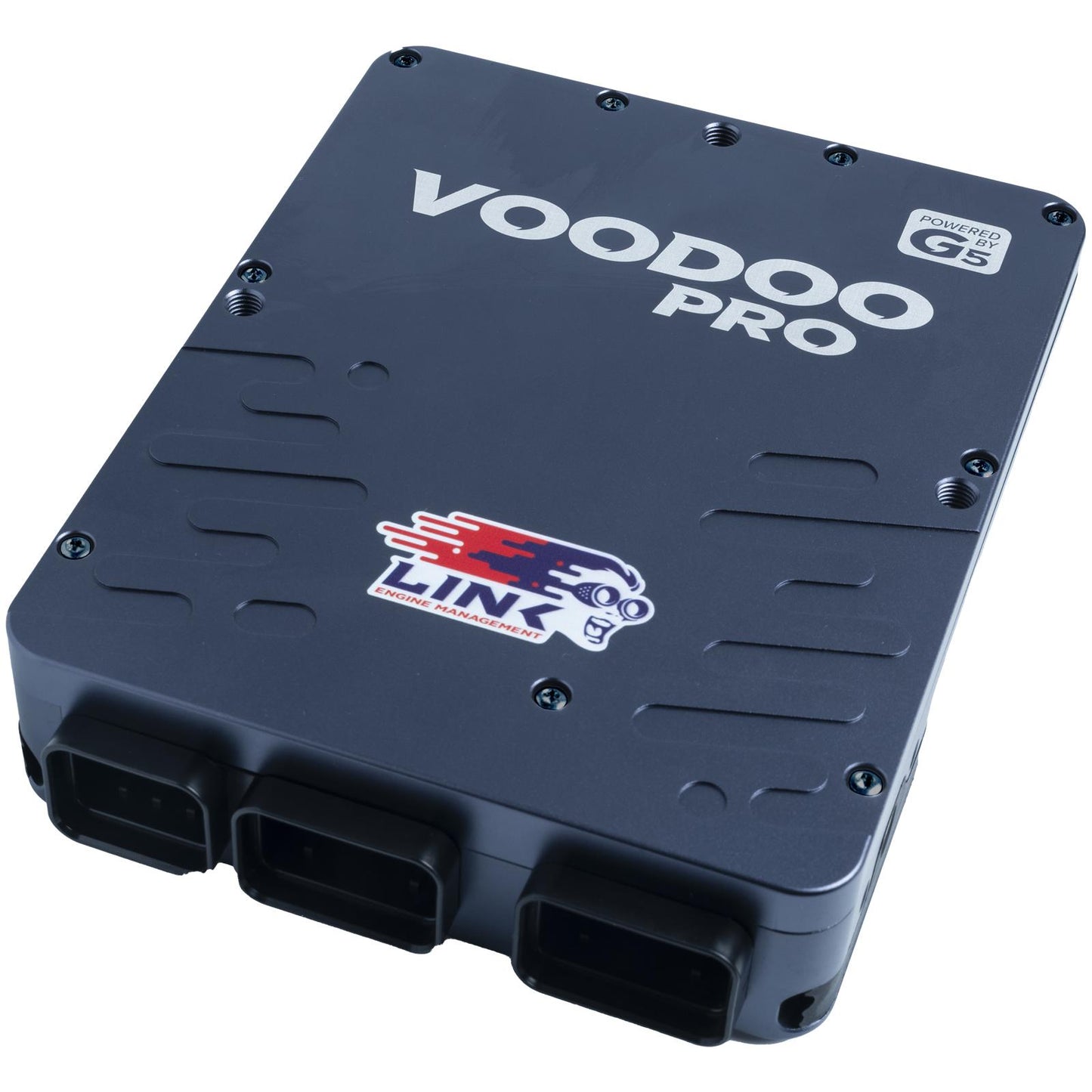

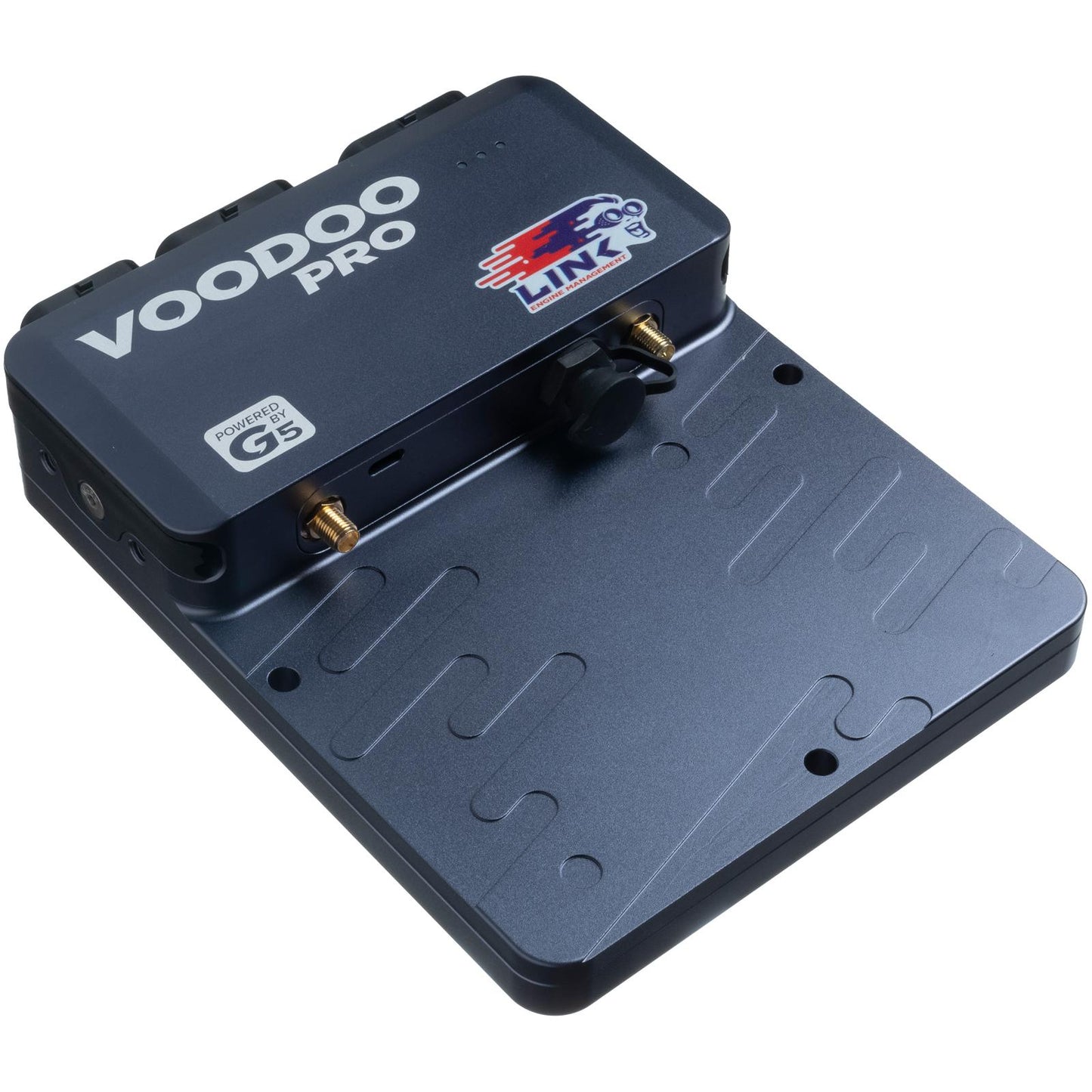

· G5 Voodoo Pro ECU

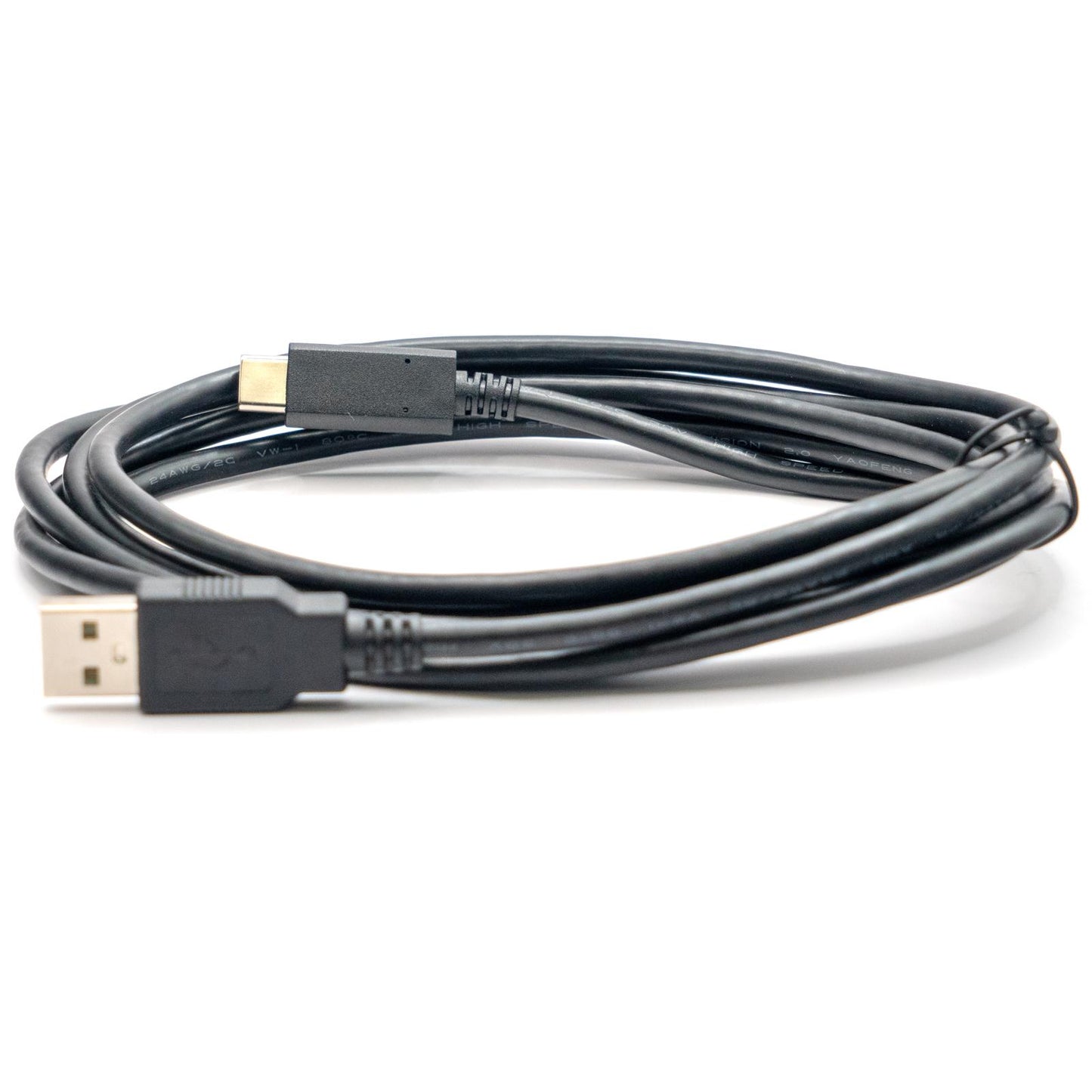

· USB-C Connection Cable

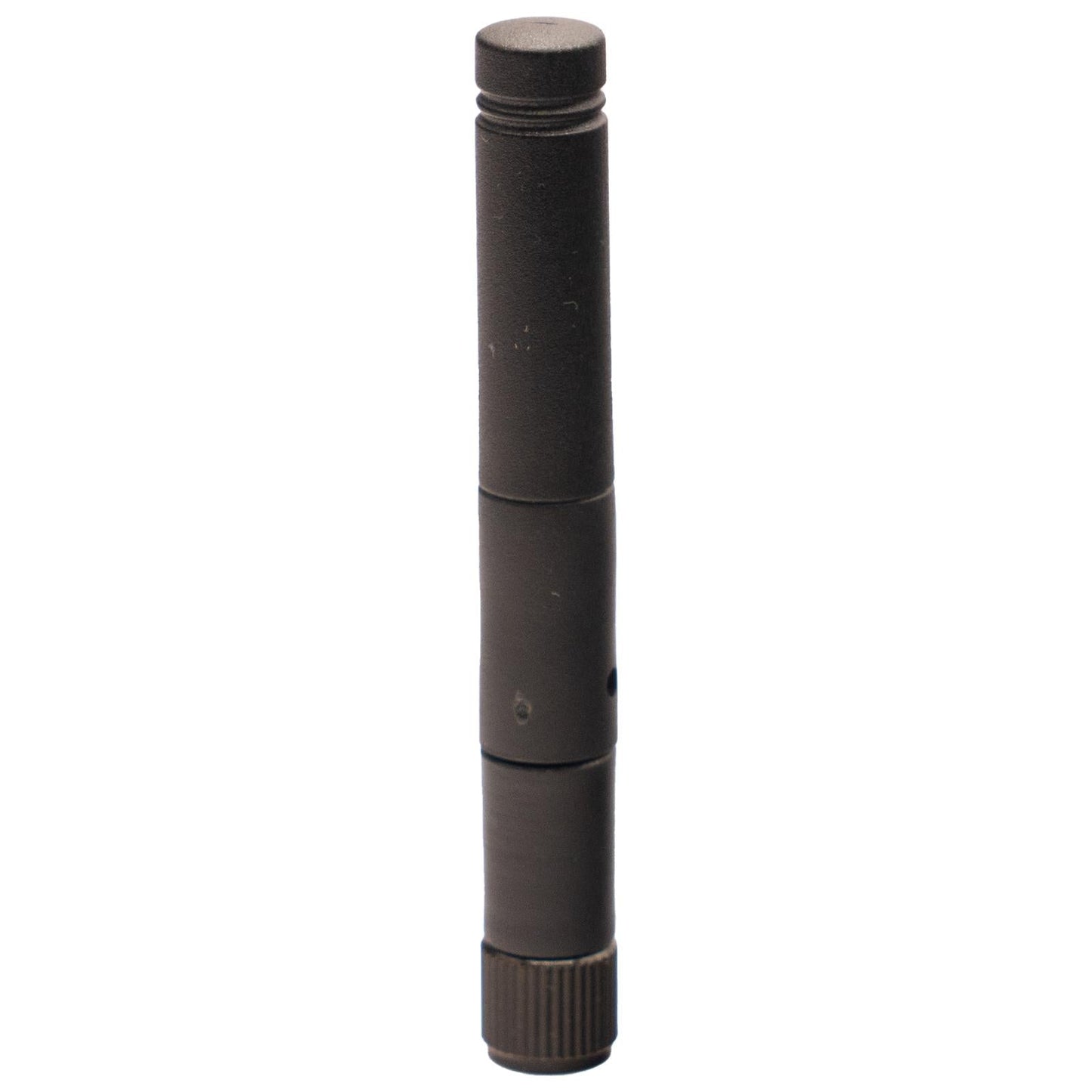

· Wi-Fi Antenna

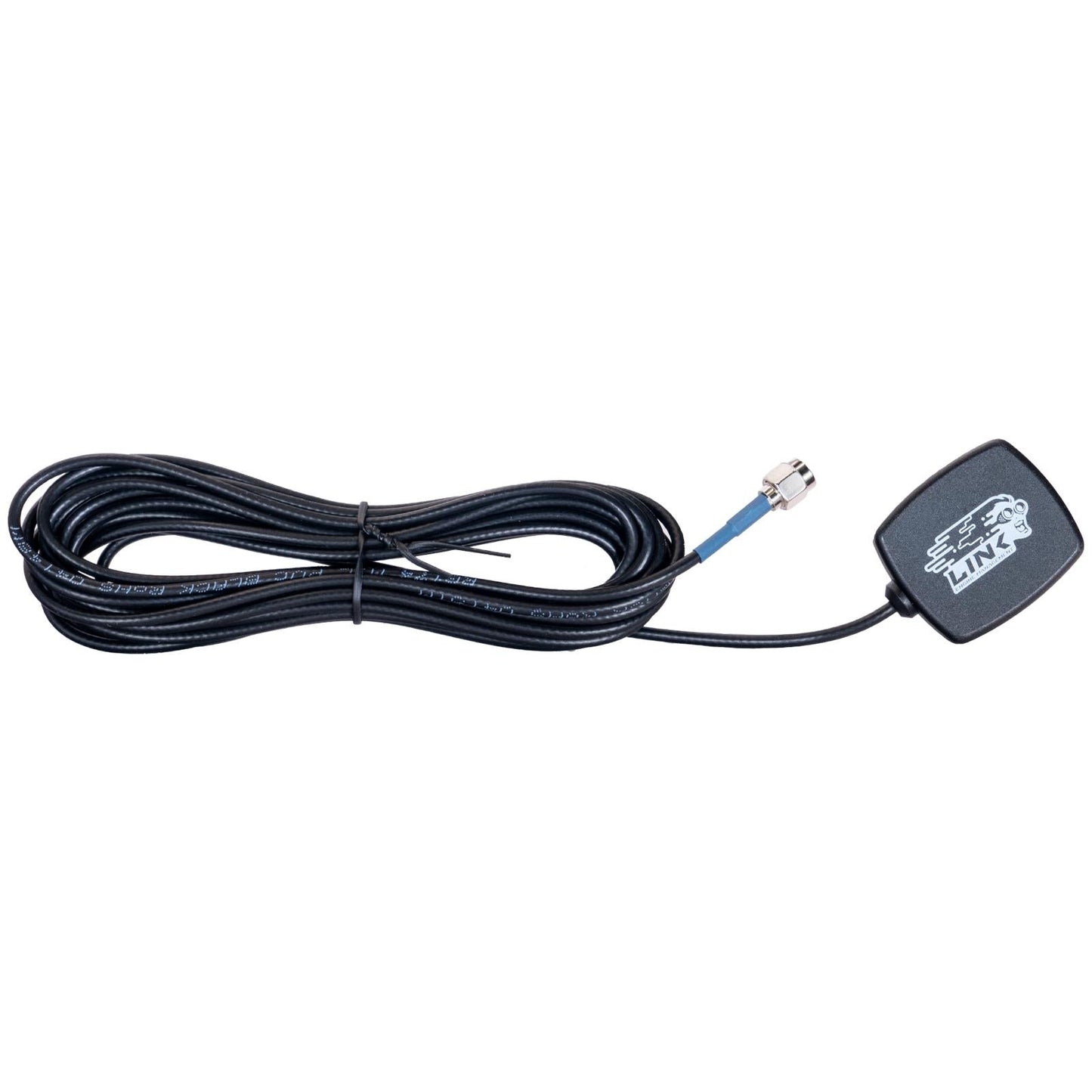

· 4m GPS Antenna (Magnetic or Adhesive Mount)

· USB-C and SMA Dust Covers

· QuickStart Guide (A5)

· Installer I/O table (A3)

· Mounting Screws

· Link stickers

Features

· 12 Injection, 8 Ignition and 4 multi-purpose (inj, ign, aux) drives (24 total)

· A cost-effective solution to proven Direct Injection control (DI) on up to 12 injection drives (using an external OEM or aftermarket driver box - more info on working with DI here) https://kb.linkecu.com/di-kb/latest/working-with-direct-injection

· Built-in Wi-Fi, with real-time PC Link connection

· Built-in Global Positioning System (GPS) up to 50Hz

· Built-in Ethernet, the fastest and most stable way to view or download data logs, calibrate and tune your ECU.

· Highly customisable IO, now using eight ADIO pins.

· Dual onboard LSU 4.9 digital wideband controllers.

· Dual on-board H-Bridges that support things like E-Throttle (Drive by Wire) and low power E-Wastegates.

· 1GB onboard of data logging memory.

· All G4X and G5 tunes are compatible with the G5 Voodoo Pro.

· CNC Case, Sealed enclosure.

Specifications

Outputs

· 12 injector drives

· 8 ignition drives

· 4 injector/ignition dual role drives

· 6 auxiliary Outputs

· +5V sensor power supply

· Any unused injector/ignition pins can be used as an auxiliary pin

· All ignition and auxiliary pins are fly back protected.

Inputs

· 10 digital inputs

· 4 temperature inputs

· 14 analogue inputs

· 2 trigger inputs

· 2 knock inputs

Input/Outputs

· 8 ADIO dual purpose pins

Communications

· USB-C (cable included)

· Connect directly to the ECU via built-in Wi-Fi Access Point, or add it to an existing network (Antenna Included)

· Dual CAN (CAN 1 on CAN connector, CAN 2 on header E)

· GPS (antenna included)

· Ethernet with daisy chain support

Size & Weight

· Depth: 109.2 mm (4.3 inches)

· Width: 193.5 mm (7.6 inches)

· Max height: 45.0 mm (1.8 inches)

· Weight: 768g (27 ounces)

Connectivity

The G5 Voodoo Pro supports the following comms standards:

· USB-C

· Wi-Fi

· CAN

· GPS

· Ethernet

The G5 Voodoo Pro uses A, B & E Superseal headers. A & B headers are closely matched pinouts with the G4X and G5 Voodoo Neo platforms.

It is now possible to connect to your ECU using a standard USB-C cable, or alternatively by using Wi-Fi or Ethernet.

GPS connectivity can be initialised by simply adding a GPS antenna.
