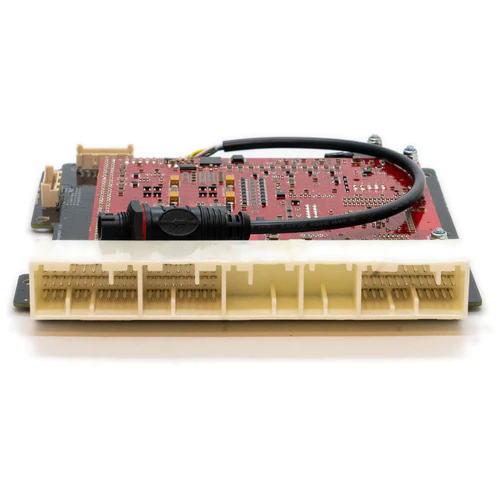

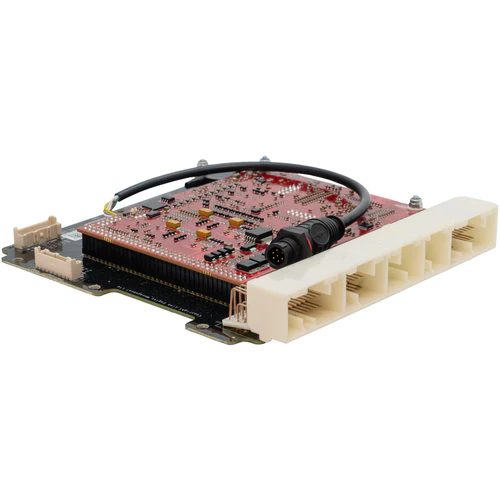

LINK Honda HC20X Plug-in ECU ECU
LINK Honda HC20X Plug-in ECU ECU
Regular price
$2,639.25 NZD
Regular price
Sale price
$2,639.25 NZD
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
- THIS IS A SPECIAL ORDER ITEM. Once you complete your order, we will then order it from the supplier. If you are urgently needing this item contact us for an accurate ETA from our supplier before purchasing!
Couldn't load pickup availability
Designed for the K20A engine.
·Please check your connector matches the header in the listed photo before purchasing.
Suitable Applications (Manual Transmission only):
Honda Integra Type R DC5 2002-2004 with K20A/K20A2/K20A3
Acura RSX 2002-2004 with K20A/K20A2/K20A3
Honda Civic Type R EP3 2001-2005 with K20A
Honda Civic Si/SiR 2001-2005 with K20A3
Honda Civic DX/LX/HX 2001-2005 with D17A1/A2/A3
Honda CR-V 2002-2004 with K24A1
Key Features:
Reverse Lockout Control
Electrical Load Detection
Onboard 7 bar MAP sensor.
2x General Purpose Expansion Plugs (includes E-Throttle pins)
16 x Auxiliary Outputs (10 of which are PWM capable).
Injector Drives 5-8 are available for Staged Injection (some rewiring required).
10 x Digital Inputs exposed (all capable of reading frequencies up to 10kHz)
4 x Temperature Inputs (configurable pull-ups on ANT1&2)
12 x 0-5V Analog Inputs
2 x Trigger Inputs (Reluctor, Optical or Hall Sensors)
2 x CAN ports
3 Axis Accelerometer
Motorsport features – including Anti-lag, Launch Control, Flat Shifting, Traction Control
512MB of Internal Data Logging Memory
