Link Mazda MX5Link - MX5NB1X
Link Mazda MX5Link - MX5NB1X
Part Number: 240-4000

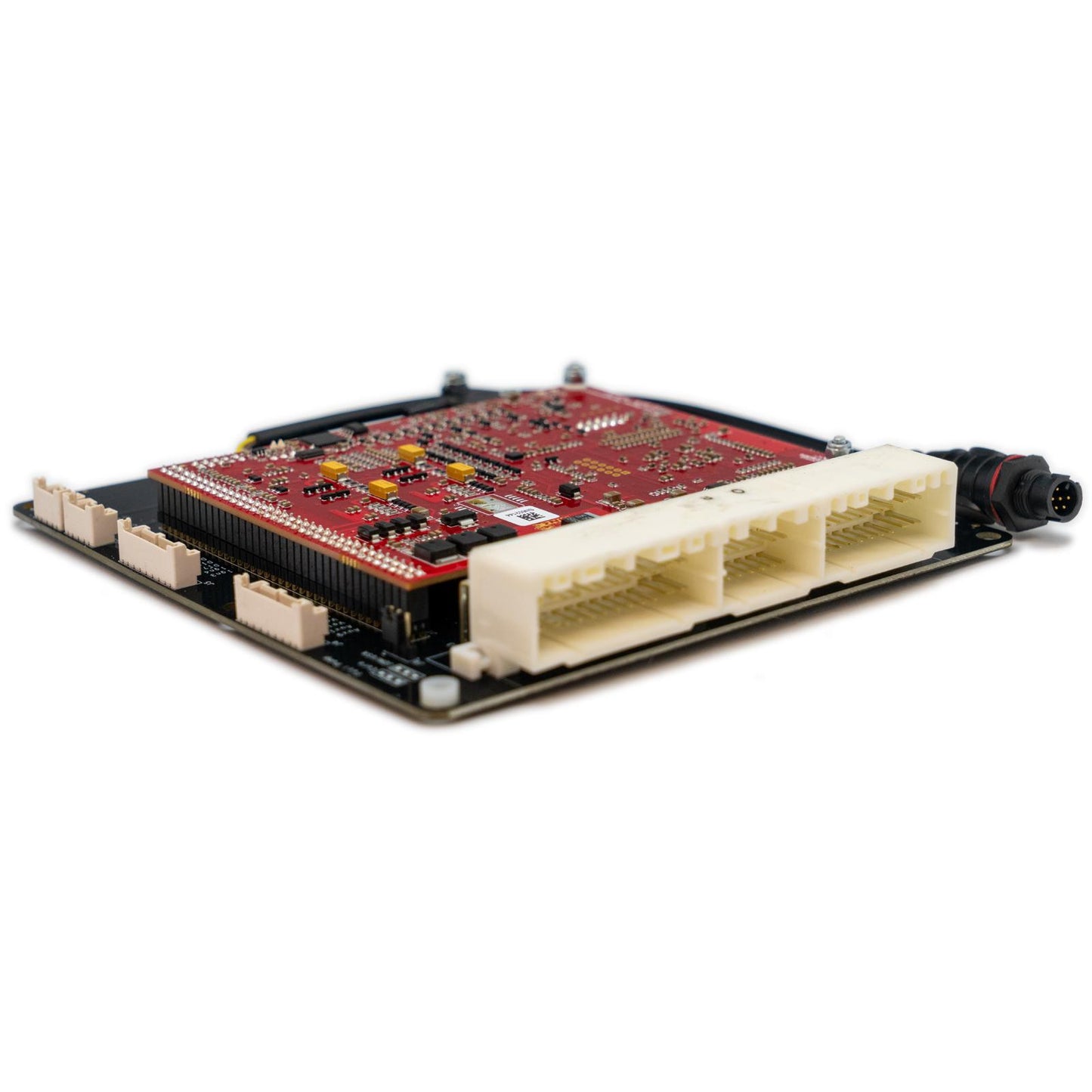

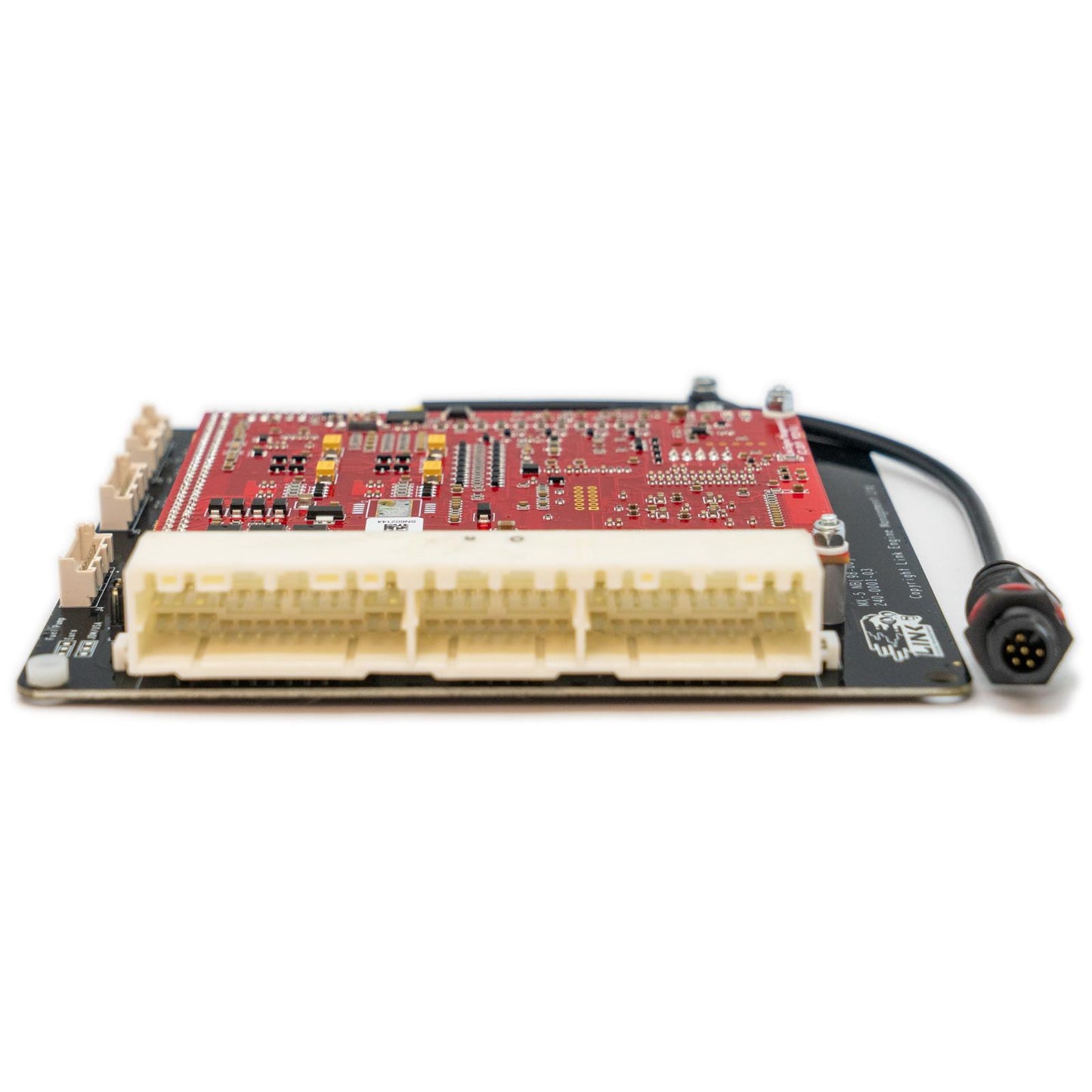

Easy to install. Affordable. Reliable. G4X PlugIn ECUs offer the latest in engine management technology, designed to easily maximize the potential from your car. This ECU fits inside the factory OEM enclosure. Installation is a breeze, with no alteration of the factory wiring loom required for the models listed below. Designed for the Pre-Facelift MX5 NB (MY1998-2000, 3 Plug ECU, non-VVT 1.8L Engine) Please check your connector matches the header in the listed photo before purchasing. This ECU works for manual transmissions only. Includes onboard 7 bar MAP sensor Most factory features are supported Check the features tab for I/O expansion options Note: This Plug-in features a new 4 pin powered CAN connector and cannot use the old CANPCB cable for CAN connection. Use the CANJST4 (Link PN 101-0198) cable for connecting CAN devices. This new 4 pin port and cable provide not only the CAN connection, but also a protected 12V power supply and ground for powering the CAN devices. The power supply is protected by a self-resetting fuse rated at 3A continuous.
Features: G4X PlugIn Key Features (where applicable):
Up to 6D fuel and ignition mapping
Precision closed loop cam control (four cam, independent control)
Sequential fuel delivery
Digital triggering, all OEM patterns
OEM idle hardware supported
5D boost control with three switchable tables
Motorsport features - antilag, launch, flat shift
Continuous barometric correction (on board)
CAN port
QuickTune - automated fuel tuning
Individual cylinder correction
USB tuning cable included
Stats recording into on-board memory
Gear compensations for spark, boost and fuel
Real time selectable dual fuel, ignition and boost maps
Sync and crank sensors can be a combination of Hall effect, variable reluctance or optical
Boost control referenced to gear, speed or throttle position
512 mega bytes data logging memory
Staged injection
Knock with 'windowing'
I/O Expansion Options:
The following expansion connector inputs/outputs are provided:
Expansion Connector 1
Pin 1 An Temp 4
Pin 2 An Temp 3
Pin 3 DI 10
Pin 4 DI 9
Pin 5 DI 8
Pin 6 DI 7
Pin 7 IGN 4
Pin 8 IGN 3
E-Throttle Connector
Pin 1 Ground (signal)
Pin 2 +5V out
Pin 3 An Volt 12
Pin 4 An Volt 11
Pin 5 An Volt 10
Pin 6 An Volt 9
Pin 7 Aux 10
Pin 8 Aux 9
Download Manual
Click here
to download the user manual.
Specifications: Click
here
to download the full Specifications PDF.
