MAMBA 5200 9-11 2.5" Fit Subaru GC GD GTX3076R Ball Bearing Turbocharger .49 Hsg
MAMBA 5200 9-11 2.5" Fit Subaru GC GD GTX3076R Ball Bearing Turbocharger .49 Hsg
- THIS IS A SPECIAL ORDER ITEM. Once you complete your order, we will then order it from the supplier. If you are urgently needing this item contact us for an accurate ETA from our supplier before purchasing!
Couldn't load pickup availability
P/N
002-5680
Item Name

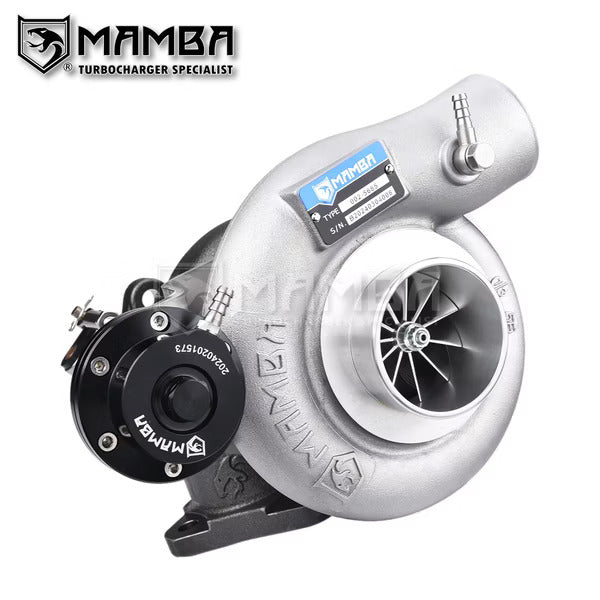

MAMBA 2.5” 5200 9-11 Subaru WRX STI GC GD GTX3076R Ball Bearing Turbocharger with .49 Turbine Housing
Application
Subaru Impreza WRX / STI / Forester GC GD EJ20 EJ25 Single Scroll Turbocharger
Replace and upgrade TD04L-13T, TD05H
Replace and Upgrade IHI RHF55 RHF5HB VF22, VF23, VF24, VF28, VF29, VF30, VF34, VF35…
Support HP: 400~750HP
Spec
Compressor wheel : 58.0/76.6 mm (GTX 11+0 Performance Billet Compressor Wheel)
Turbine Wheel: 55/60mm (GTX30R Performance 9 Blade Turbine Wheel )
Compressor Housing Inlet OD: 2.5”
Compressor Housing Outlet OD: 2”
Compressor Housing A/R.: A/R .60
Turbine Housing A/R: A/R .49 (7cm)
Actuator
0.8bar spring is pre-installed on the adjustable actuator
Additional 1.2bar and 1.5bar spring go with box

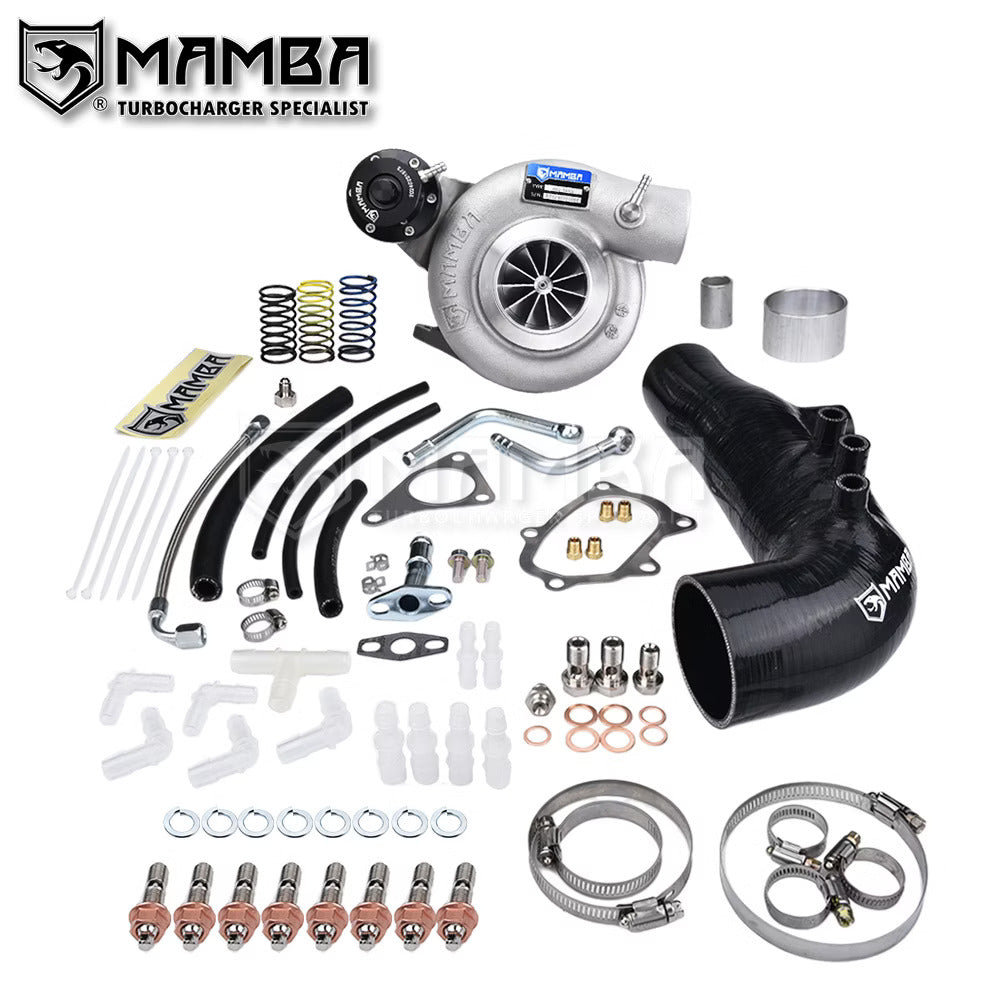

Kit Includes
1 x 9-11 2.5” Subaru GTX3076R Turbocharger with .49 Turbine Housing
1 x Oil Feed Line Kit (From engine or AVCS to Turbo)
2 x Turbo Water Line Kit
1 x Turbo Oil Return Line Kit
1 x Turbine Inlet Gasket
1 x Turbine Outlet Gasket
1 x 2.5” Intake Silicon Hose
Made By
MAMBATEK
