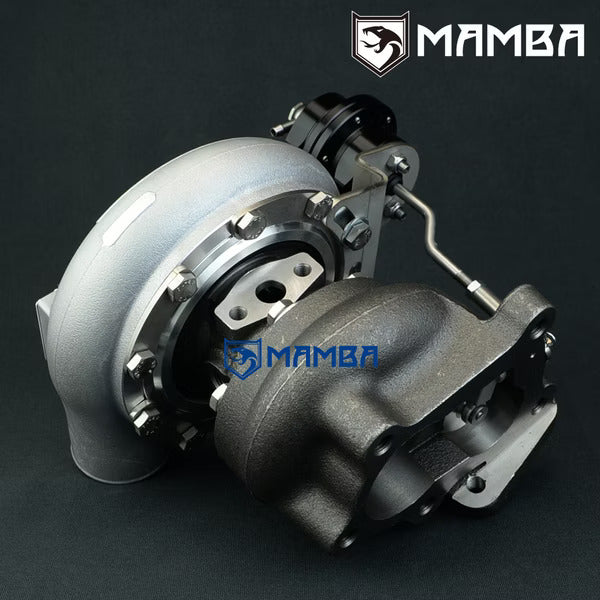

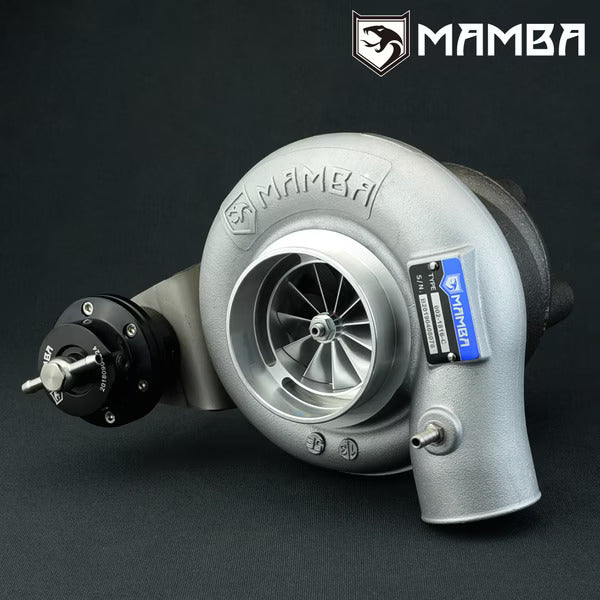

MAMBA GTX Turbo Mazda MAZDASPEED MS3 MS6 CX7 CX9 3" 5200 GTX3076R w/ .64 Bolt-On Hsg

P/N
002- 1816
Item Name
MAMBA MAZDA MAZDASPEED 3/6/CX7/CX9 3" .60 Anti surge GTX3076R ball bearing  turbo w/ .64 bolt-on turbine housing
Application
- MAZDA L3-VDT 2.3L turbo engine with K0422-581, K0422-582, K0422-583,  K0422-881, K0422-882 turbocharger
- 2007~2013 Mazdaspeed 3 2.3T
- 2006~2007 Mazdaspeed 6 2.3T
- 2006~2012 MAZDA CX-7
400~750HP
Spec
Compressor Wheel : 58 mm / 76.6 mm / Trim 58 (11+0 GTX Billet  Wheel w/ Extend Tip)
Turbine Wheel : 55 mm / 60 mm / Trim 84
Compressor Housing Inlet OD: 3”
Compressor Housing Outlet OD: 2”
Compressor Housing A/R: .60 (5200 Cover)
Turbine Housing A/R: .64
Actuator
0.8bar spring (Yellow) will be pre-installed on the adjustable actuator.
1.2bar and 1.5bar spring will go with box.
Bearing
NTN Ceramic Dual Ball Bearing
Cooling
Oil & Water-Cooled

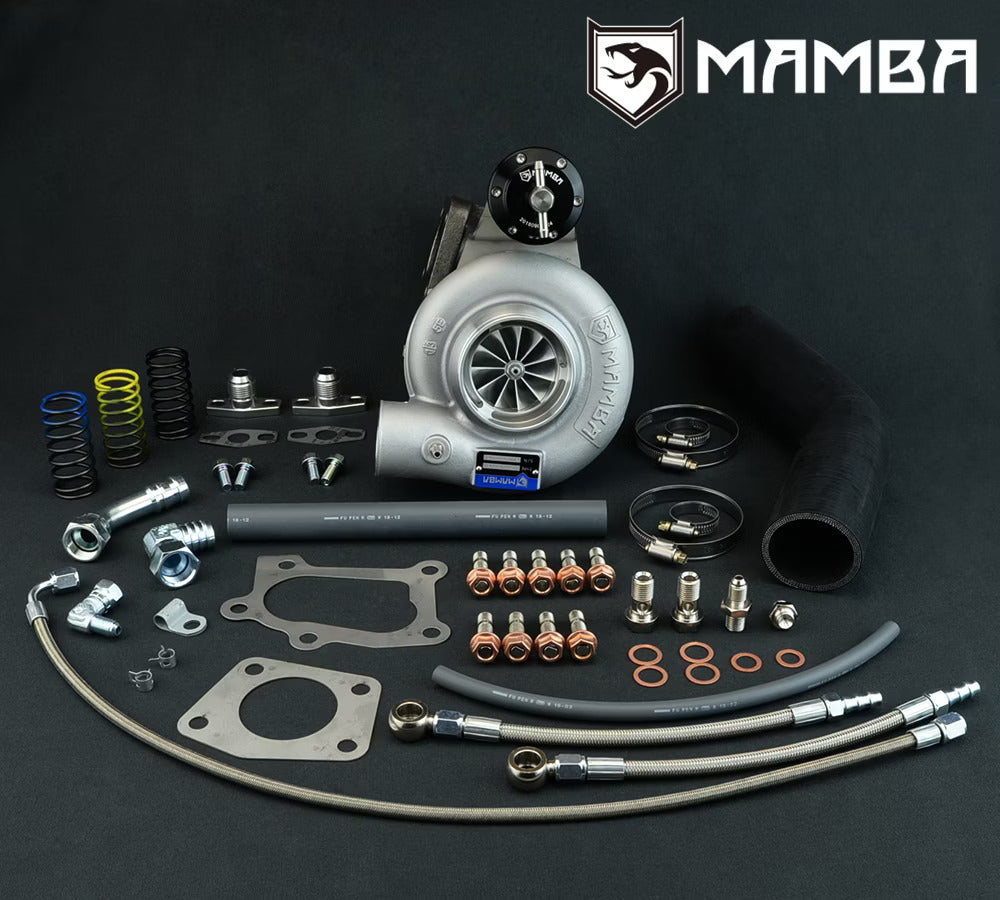

Kit Includes
1 x MAMBA ball bearing turbocharger
1 x 4AN 1/4" PTFE oil feed line kit with 1.0mm restrictor
2 x 4AN 5/16" PTFE coolant feed & return line kit
1 x Oil return hose kit with NBR hose
1 x turbine inlet gasket
1 x turbine outlet gasket
9 x M10x1.5mm stud kit
Everything shown on picture is included
Made By
MAMBATEK
