Oil Filter Relocation Block Fitting
Oil Filter Relocation Block Fitting
- THIS IS A SPECIAL ORDER ITEM. Once you complete your order, we will then order it from the supplier. If you are urgently needing this item contact us for an accurate ETA from our supplier before purchasing!
Couldn't load pickup availability

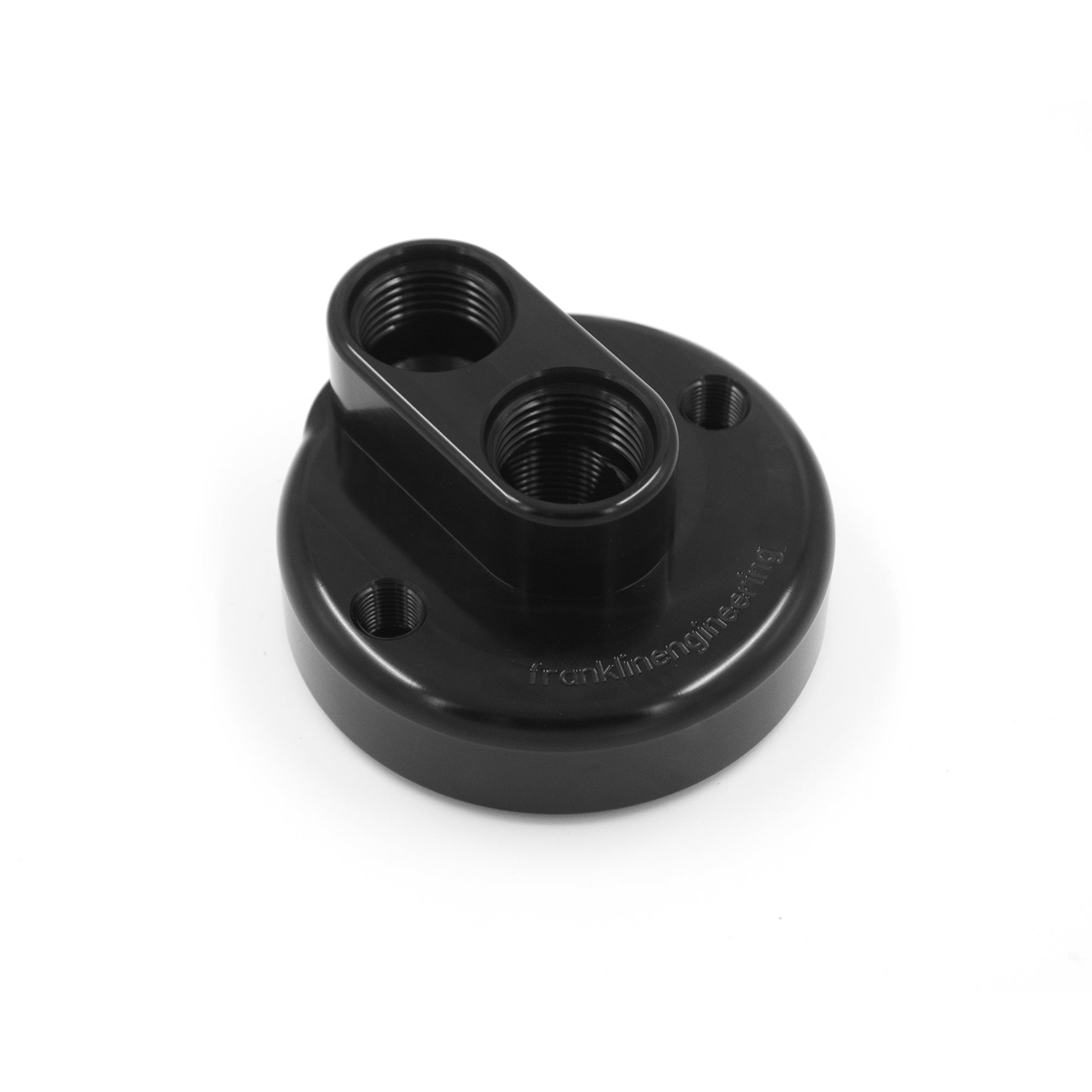

Remote oil filter block fitting manufactured by Franklin Performance for plumbing a remote oil filter, making filter changes easier or where space is limited in the engine bay.
This is high quality product that we have designed and manufacture at our factory in Napier, New Zealand. The product has many features to improve oil flow that you won't find on other remote filter block fittings

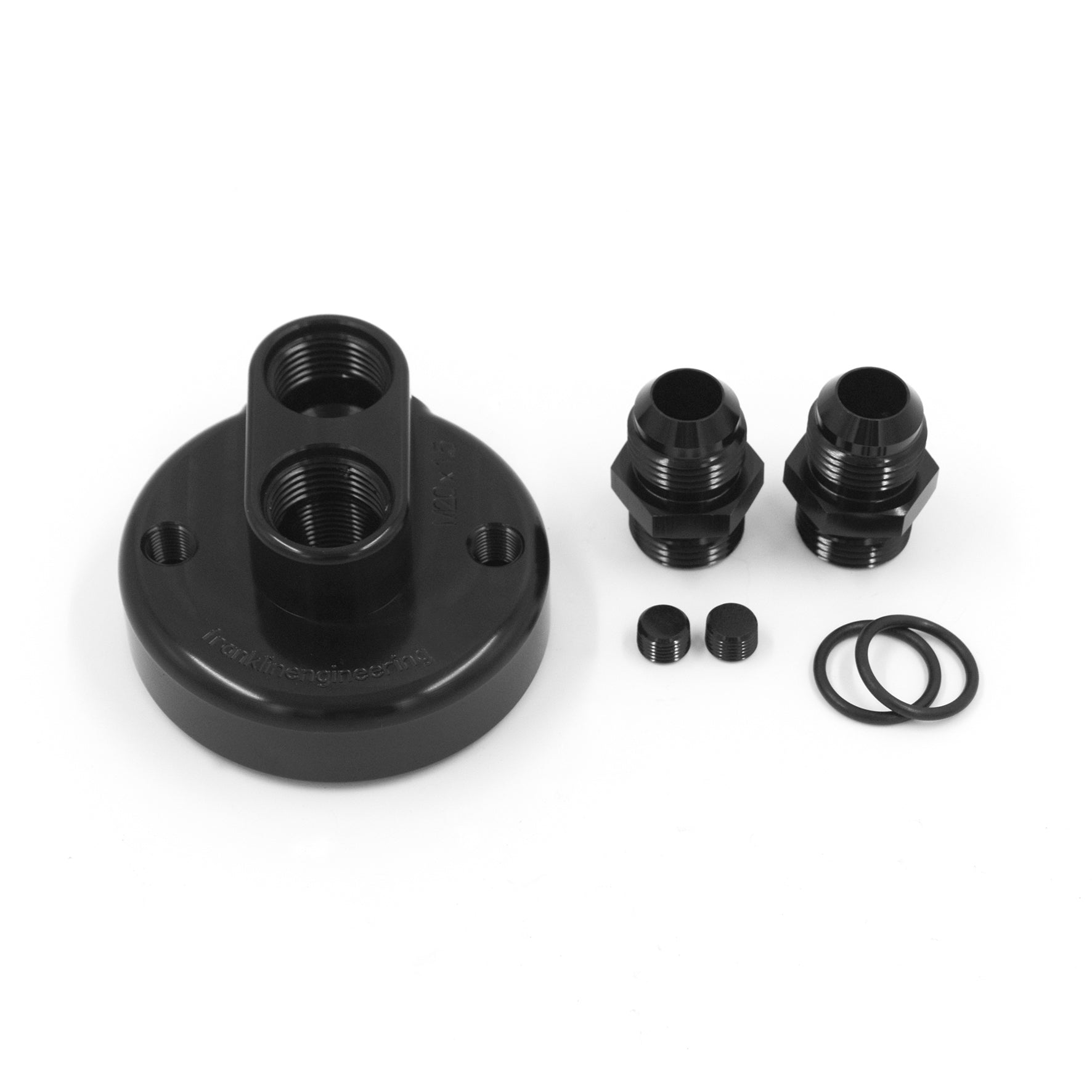

10AN sized ORB ports are provided for plumbing the engine oil to and from a filter mount. Two 1/8b NPT ports are also provided for filtered oil feeds to gauges or a turbo.
The block adaptor is manufactured with either a 3/4" UNF or M20x1.5 internal thread to screw onB to the same location as your factory oil filter.B Please choose the adaptor you require from the dropdown menu.
O-Ring inside diameter: 62mm
O-Ring outside diameter: 70mm
It is manufactured from billet high-grade 6061 aluminium, then anodised black for great looks and corrosion resistance.
We also stock remote filter mounts, oil coolers, braided hoses and manufacture many other automotive performance parts. Please have a look at our other listings.
