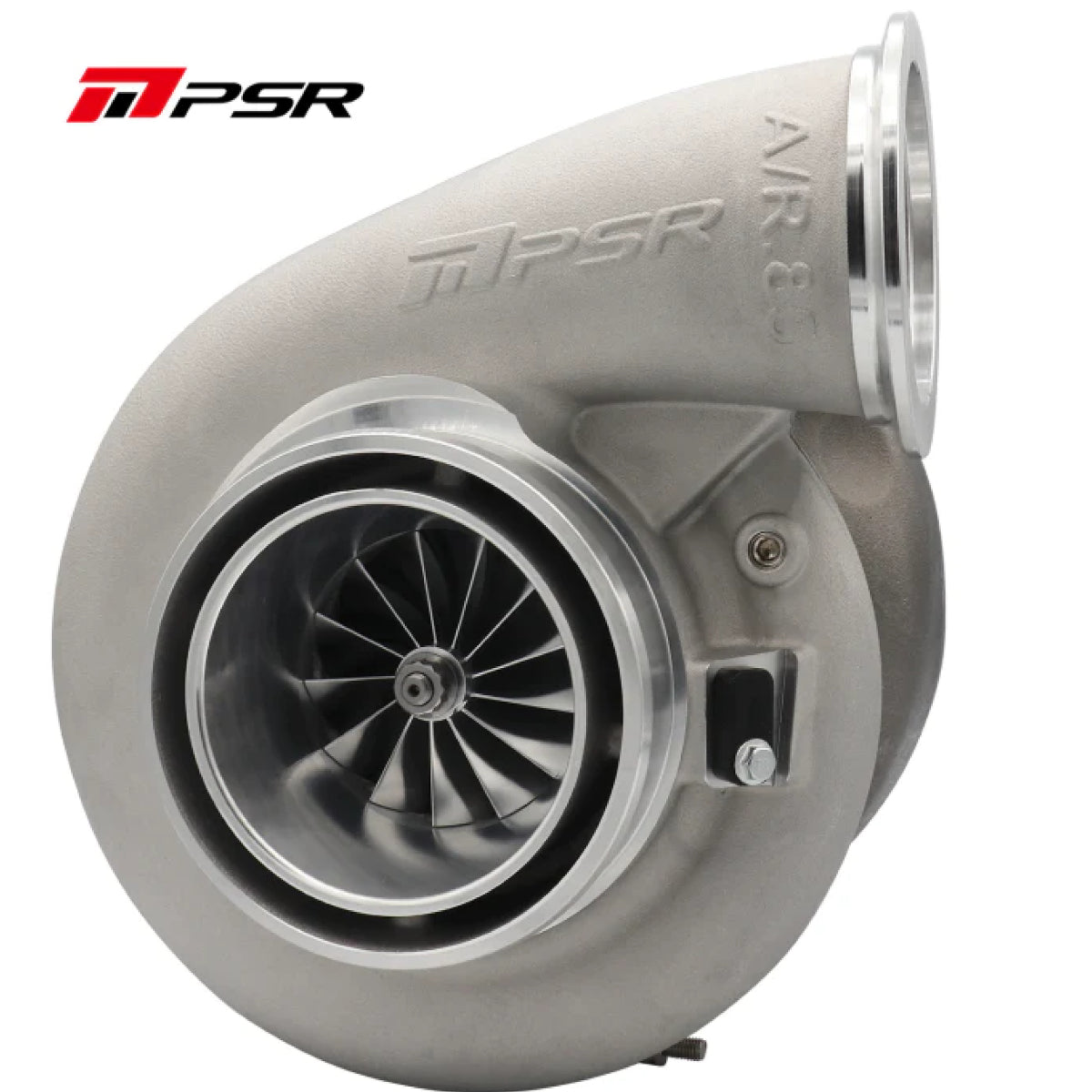

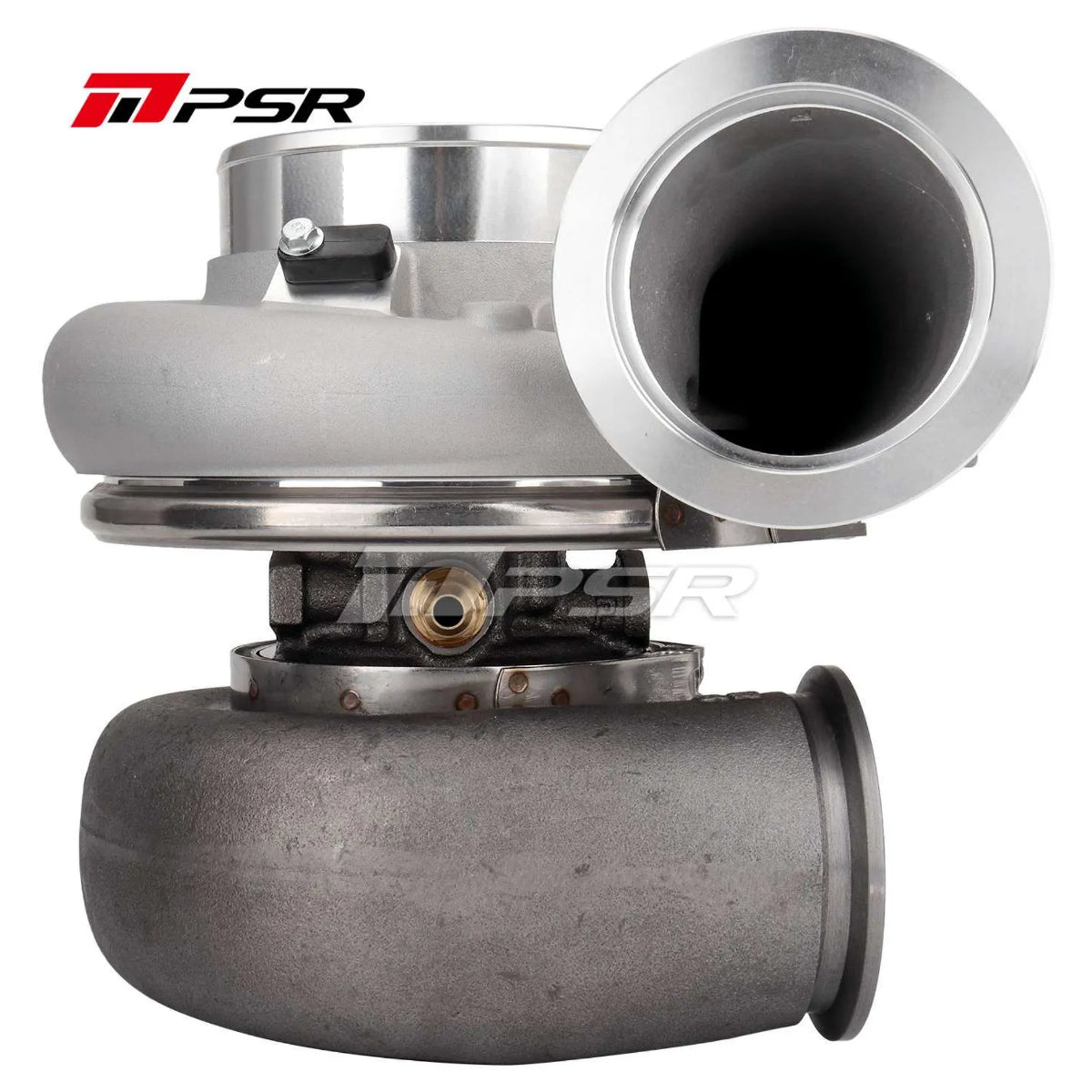

PULSAR 7782G PTG45 1500HP 77mm Dual Ball Bearing Turbo

PULSAR 7782G PTG45 1500HP 77mm Dual Ball Bearing Turbo

$2,388.00 NZD
$2,388.00 NZD $2,388.00 NZD
Sale Sold out
Taxes included. Shipping calculated at checkout.
  • THIS IS A SPECIAL ORDER ITEM. Once you complete your order, we will then order it from the supplier. If you are urgently needing this item contact us for an accurate ETA from our supplier before purchasing!
Compressor Housing
Turbine Housing Option
  • Dual ceramic ball bearing system provides optimal turbo response &
    better durability by reducing the shaft-motion
  • 13 Blade PTG-Aero billet compressor wheel with extended tapered tip technology
  • 9 Blade PTG-Aero Inconel 713c turbine wheel
  • Anti-Surge ported-shroud compressor inlet, cover integrated with the speed sensor and pressure ports
  • Water fittings included with super core
  • 8 Options in Turbine Housing
  • Compressor Wheel: 76.6*109.2mm
  • Turbine Wheel: 89*81.6mm
  • Compressor Inlet: 5″ Hose
  • Compressor Outlet: 3″ V-Band
  • Turbine Inlet: 3″ V-Band/T4 open/ T4 divided
  • Turbine Outlet: 3.5″ V-Band
  • Water Ports: -6AN
  • Oil Feed: Flange Required(Recommended size: -4AN Std T4 Flange Non-Restricted)
  • Oil Drain: -12AN(O-Ring sealed Flange Kit Incl’)

  • Turbine housing option:

    1. T4(Divided) inlet, Vband outlet (fits 4″ OD tubing), 1.01 A/R
    2. T4(Open) inlet, Vband outlet (fits 3.5″ OD tubing), 1.15 A/R
    3. T4(Divided) inlet, Vband outlet (fits 4″ OD tubing), 0.95A/R
    4. T4(Divided) inlet, Vband outlet (fits 3.5″ OD tubing), 1.15 A/R
    5. T4(Divided) inlet, Vband outlet (fits 4″ OD tubing), 1.28 A/R
    6. T4(Divided) inlet, Vband outlet (fits 4″ OD tubing), 1.44 A/R
    7. Vband inlet (fits 3″ OD tubing) and Vband outlet (fits 3.5″ OD tubing), 1.01 A/R
    8. Vband inlet (fits 3″ OD tubing) and Vband outlet (fits 3.5″ OD tubing), 1.15 A/R
    9. Vband inlet (fits 3″ OD tubing) and Vband outlet (fits 3.5″ OD tubing), 1.28 A/R
