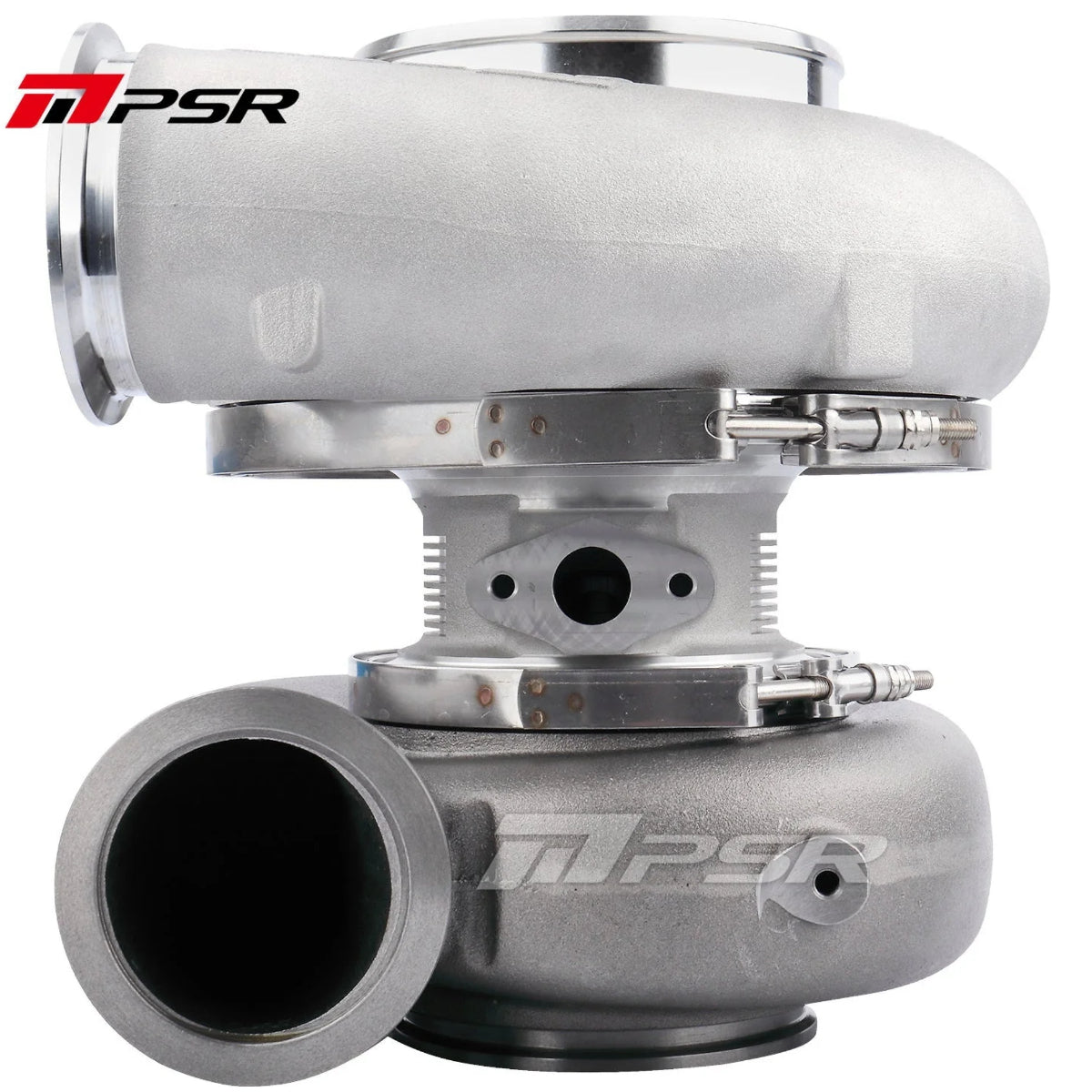

PULSAR PRO106 Compressor Inducer 3000HP 106mm Turbo

$5,741.00 NZD

~~$5,741.00 NZD~~ $5,741.00 NZD

Sale Sold out

Taxes included. Shipping calculated at checkout.

Turbine Housing 1.09 Dual V Band 1.25 Dual V Band 1.41 Dual V Band 1.41 T6 Open

There may be upto a 10 day wait, contact us for stock levels

Dual ceramic ball bearing system provides optimal turbo response &
better durability by reducing the shaft-motion

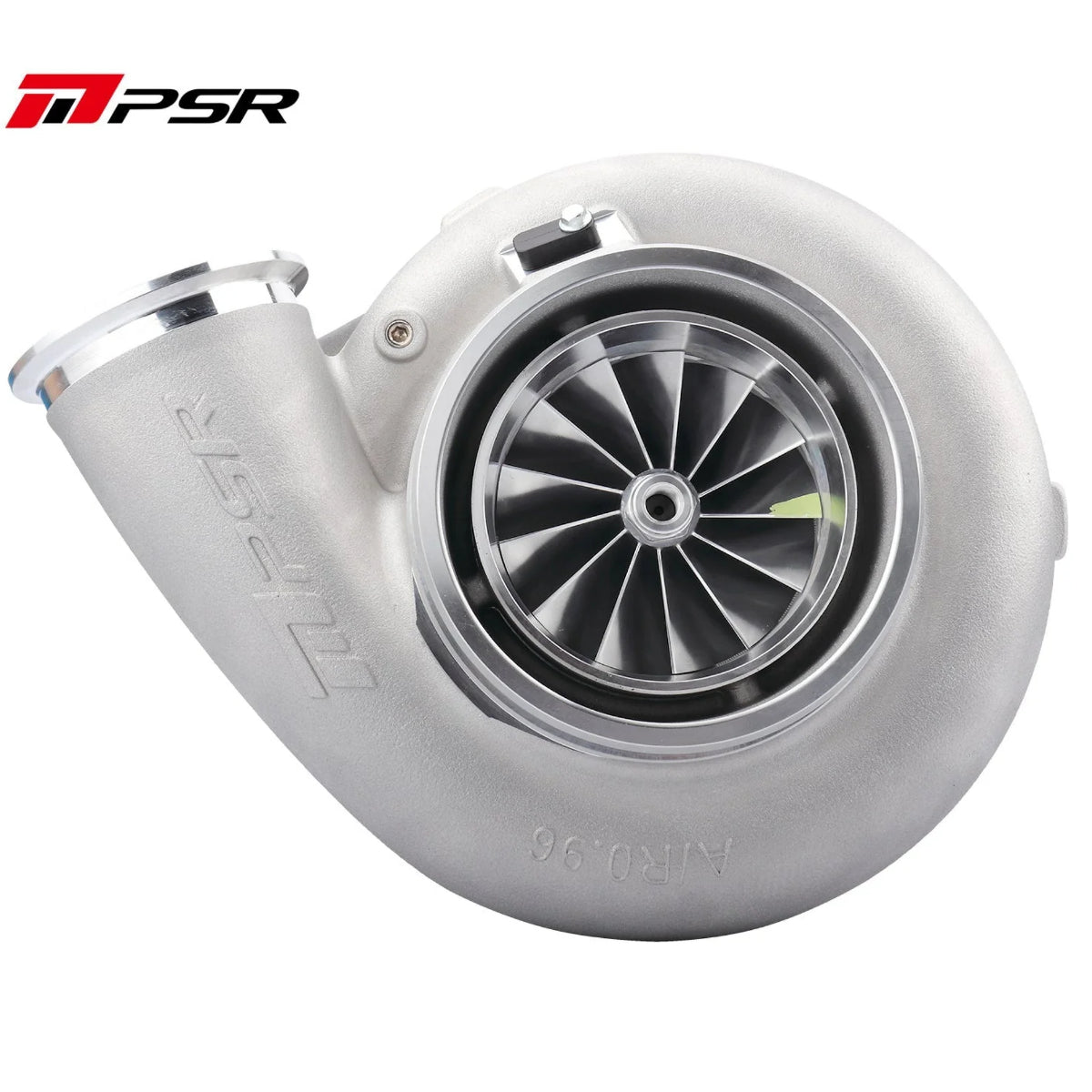

13 Blade PTG-Aero billet compressor wheel 106mm inducer produces up to 3000 hp
9 Blade PTG-Aero Inconel 713c turbine wheel with more turbine flow
Fin cooled aluminum center housing, lighter weight
Anti-Surge ported-shroud compressor inlet, cover integrated with the speed sensor port
Outline interchangeable with GTX55 Gen II turbos
Compressor Wheel: 98.4*133.5*142.4mm
Turbine Wheel: 118*112mm
Compressor Inlet: 6” Hose
Compressor Outlet: 4” V-band
Compressor Housing A/R: 0.96
Turbine Inlet: 3.5” V-Band (DV Housings) or T6 Open
Turbine Outlet: 5” V-Band
Turbine Housing A/R: 1.09/1.25/1.41

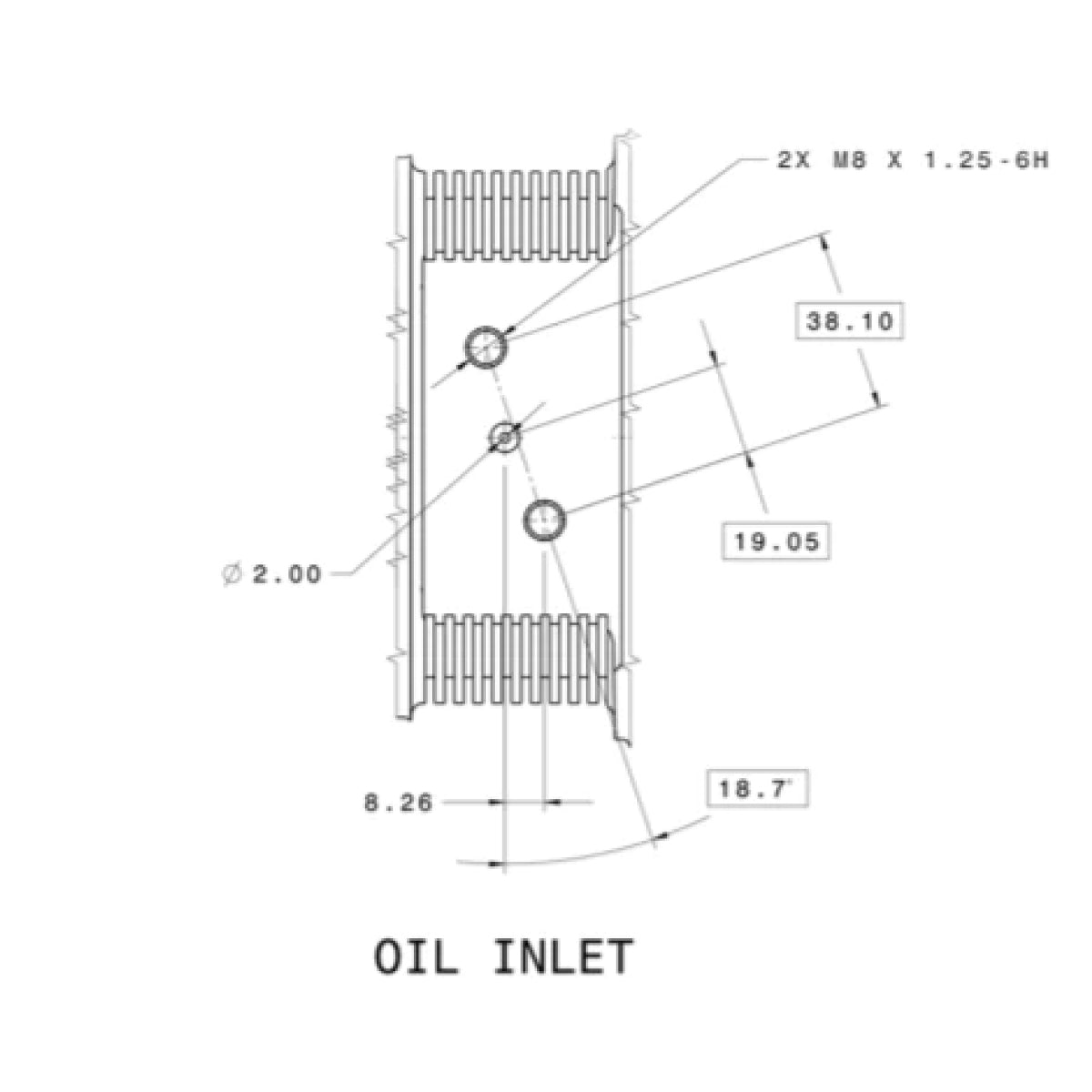

Oil Feed: See graph below(OIL INLET) (an oil restrictor with ~1mm orifice is highly recommended)

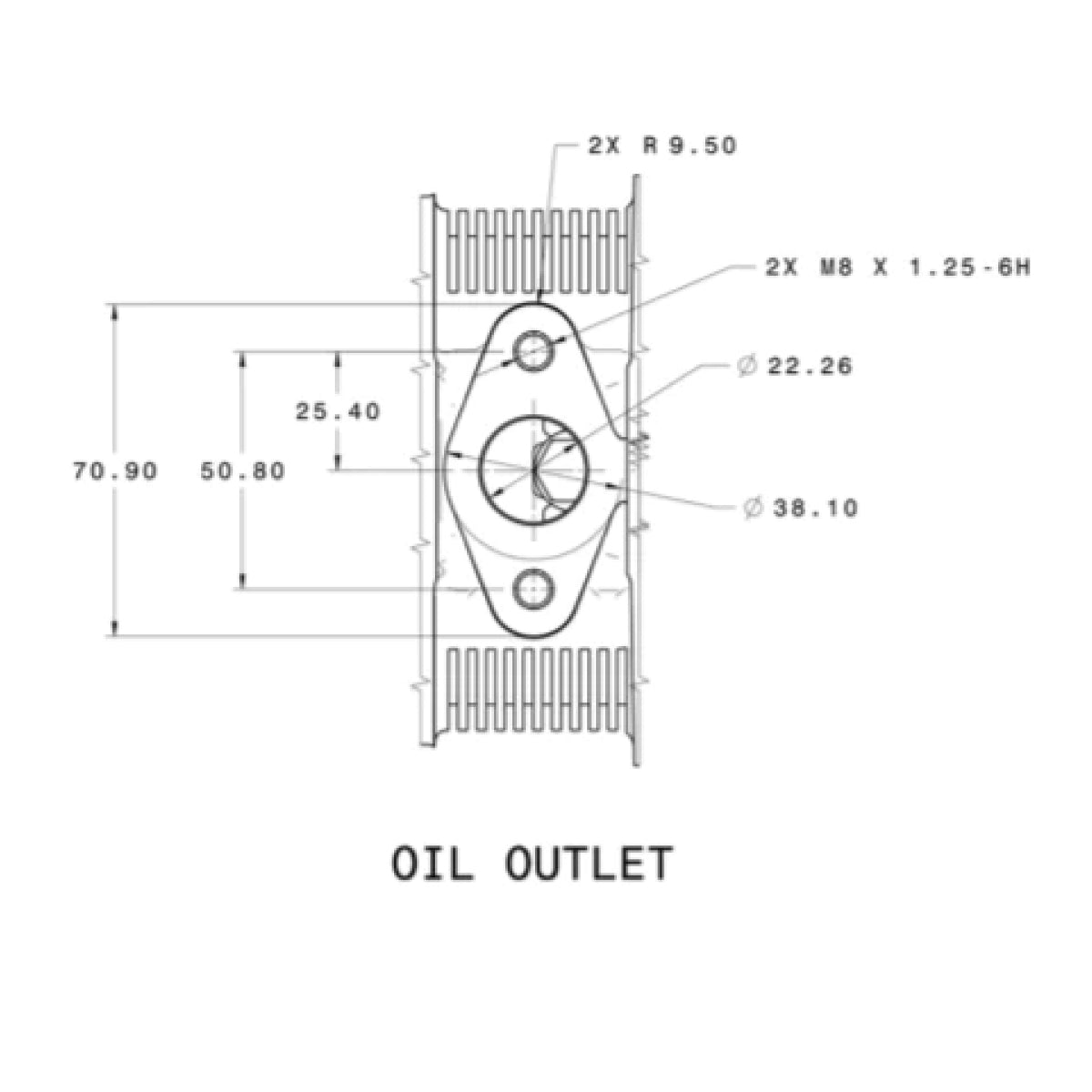

Oil Drain: See graph below(OIL OUTLET)
