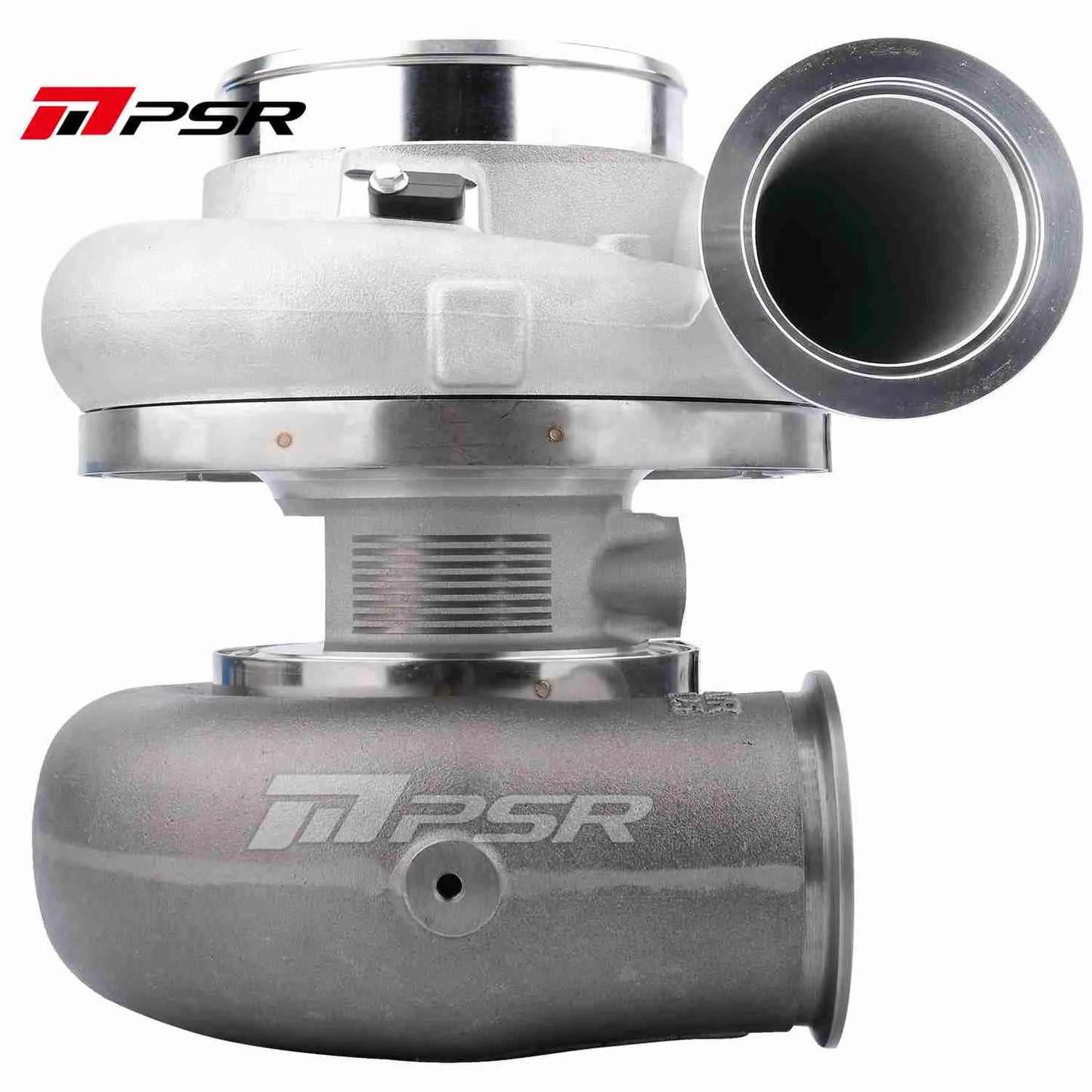

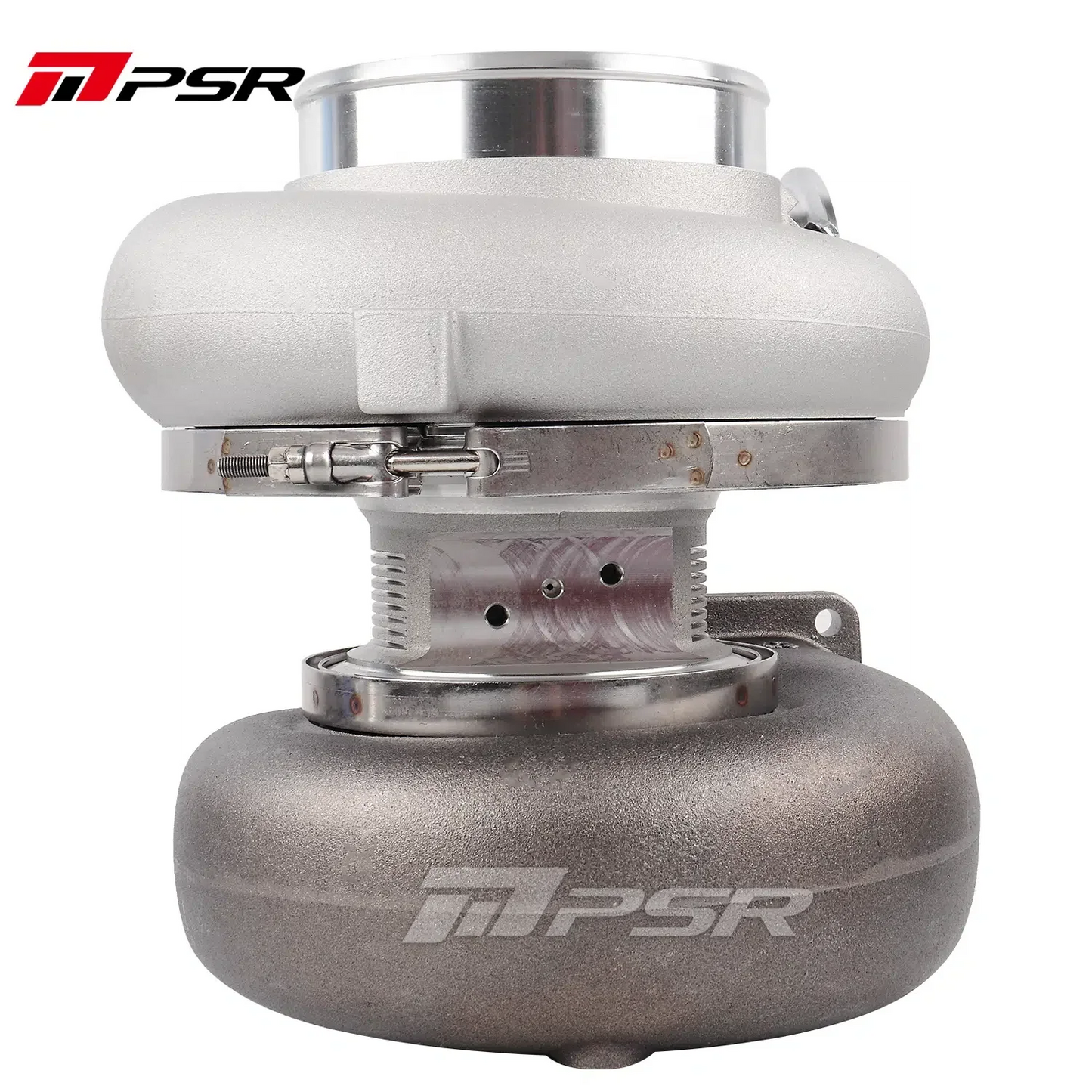

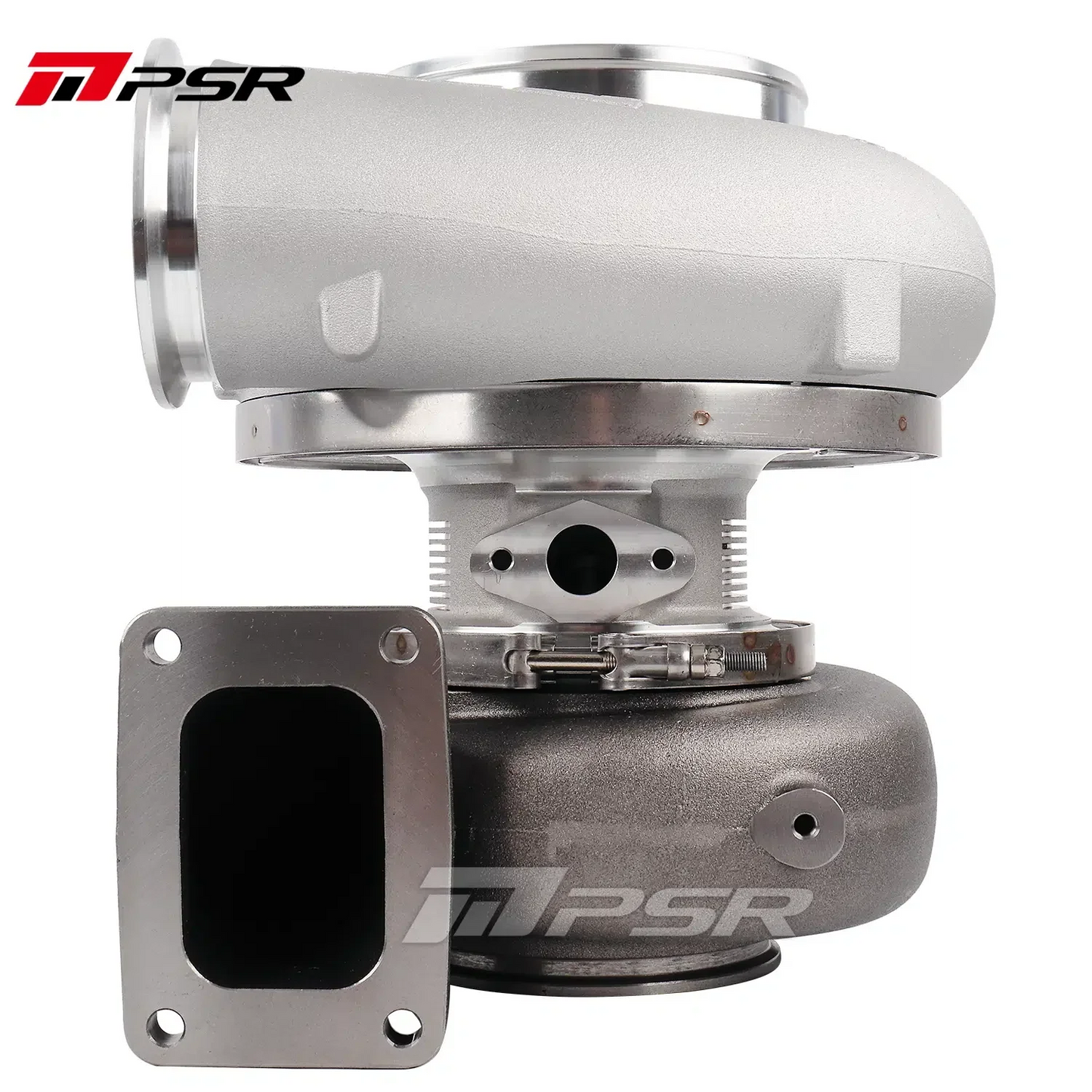

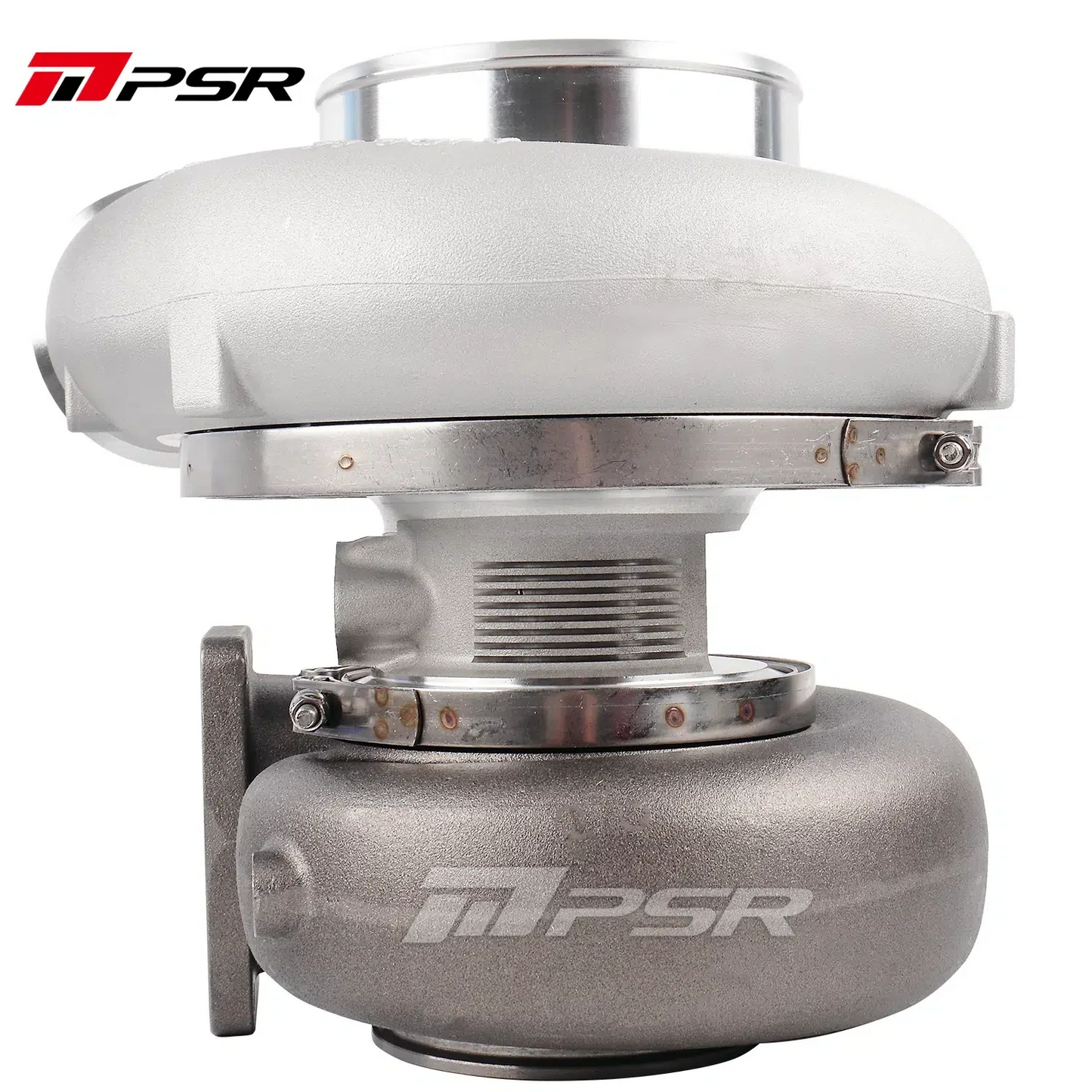

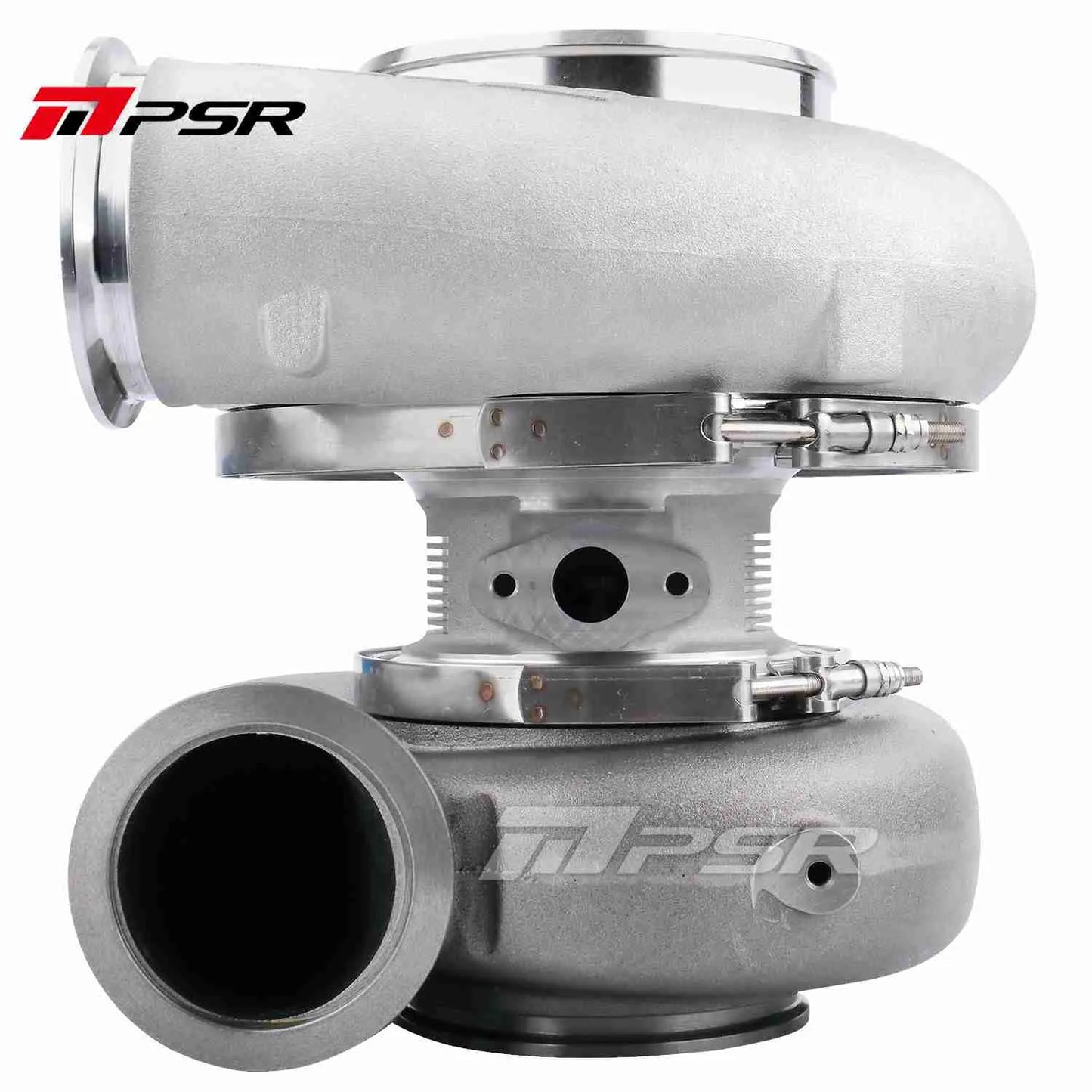

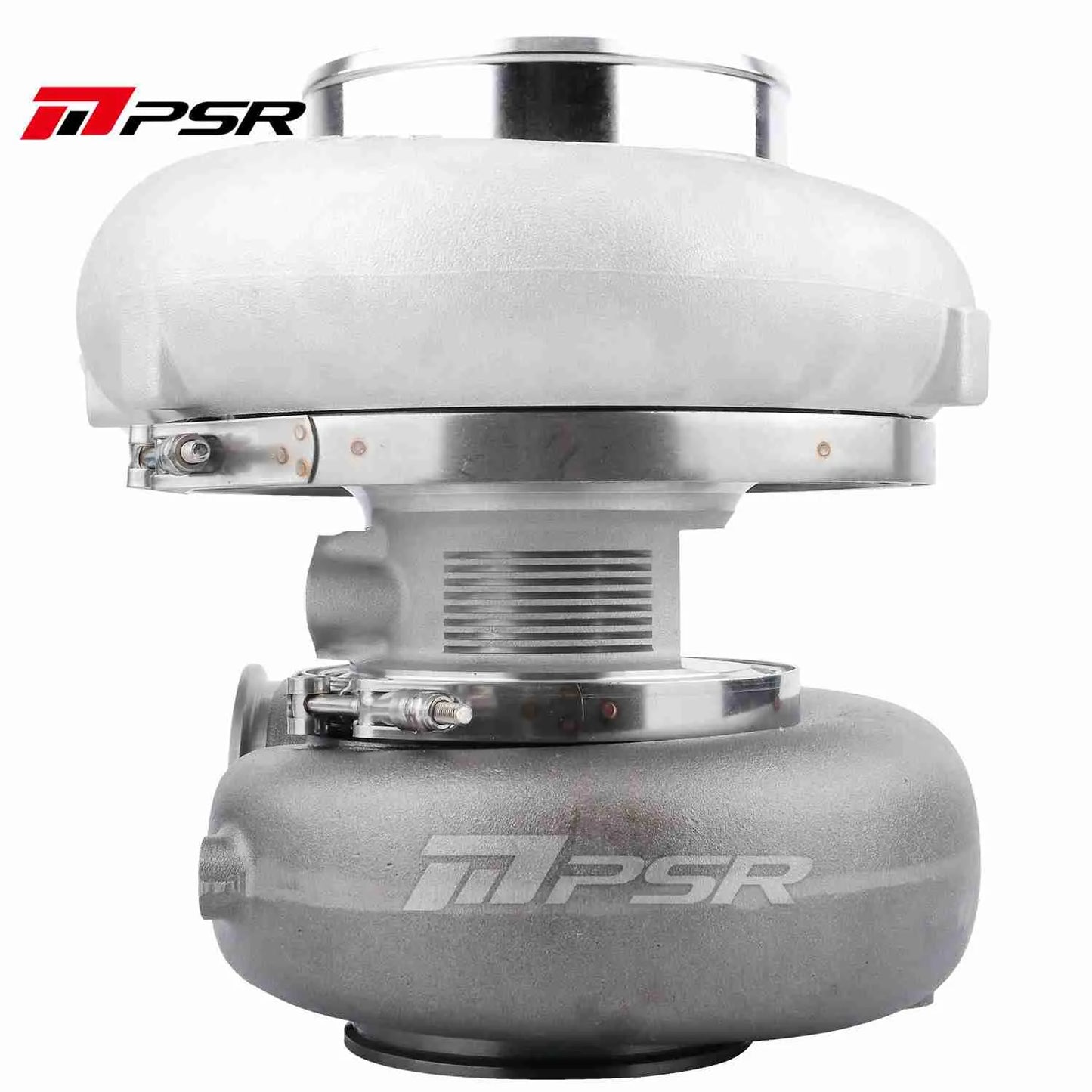

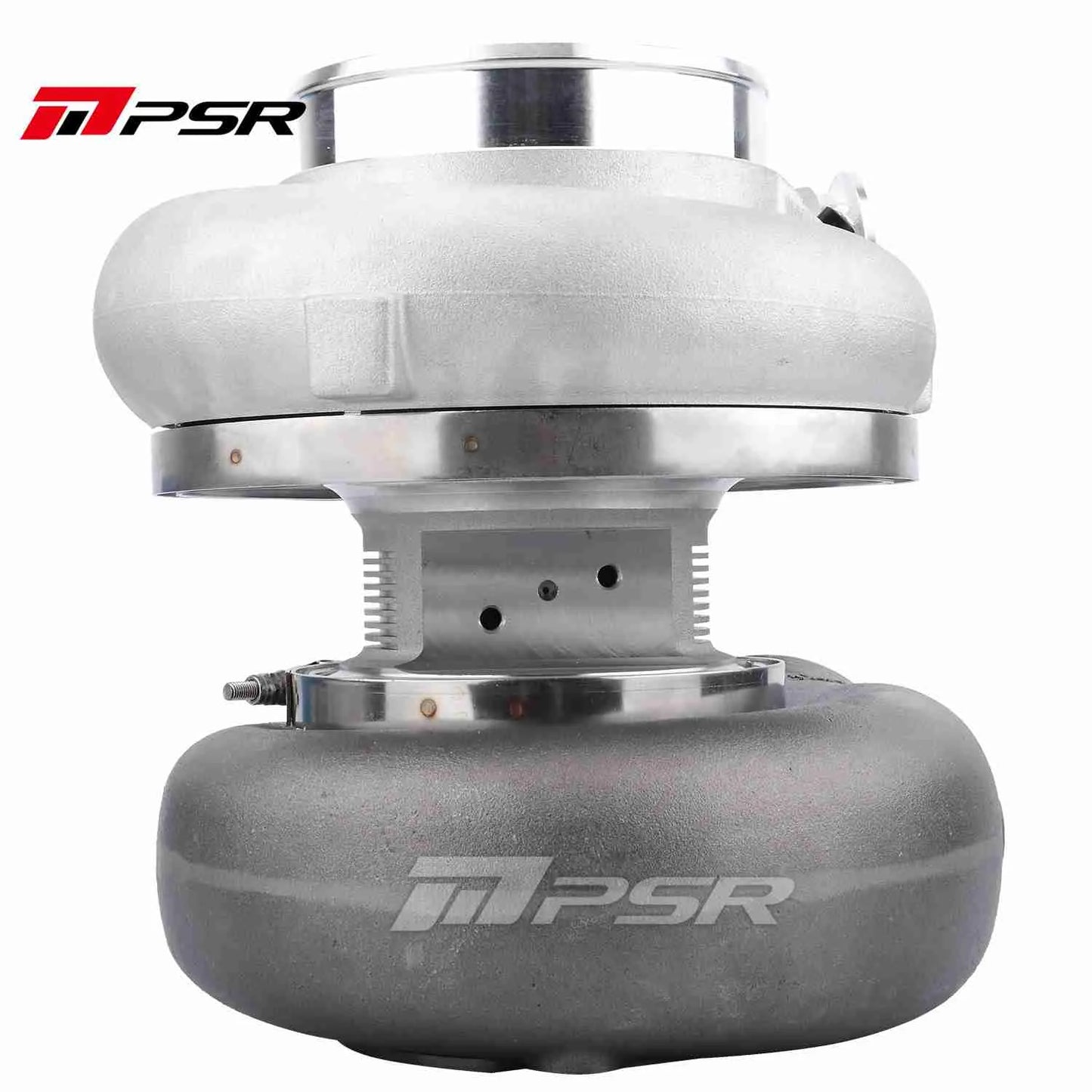

PSR PRO98 HP Rating 2550

PSR PRO98 HP Rating 2550

$5,495.83 NZD
$5,495.83 NZD
Sale Sold out
Taxes included. Shipping calculated at checkout.
  • THIS IS A SPECIAL ORDER ITEM. Once you complete your order, we will then order it from the supplier. If you are urgently needing this item contact us for an accurate ETA from our supplier before purchasing!
Compressor Housing Options
Turbine Housing Options
  • Dual ceramic ball bearing system provides optimal turbo response &
    better durability by reducing the shaft-motion

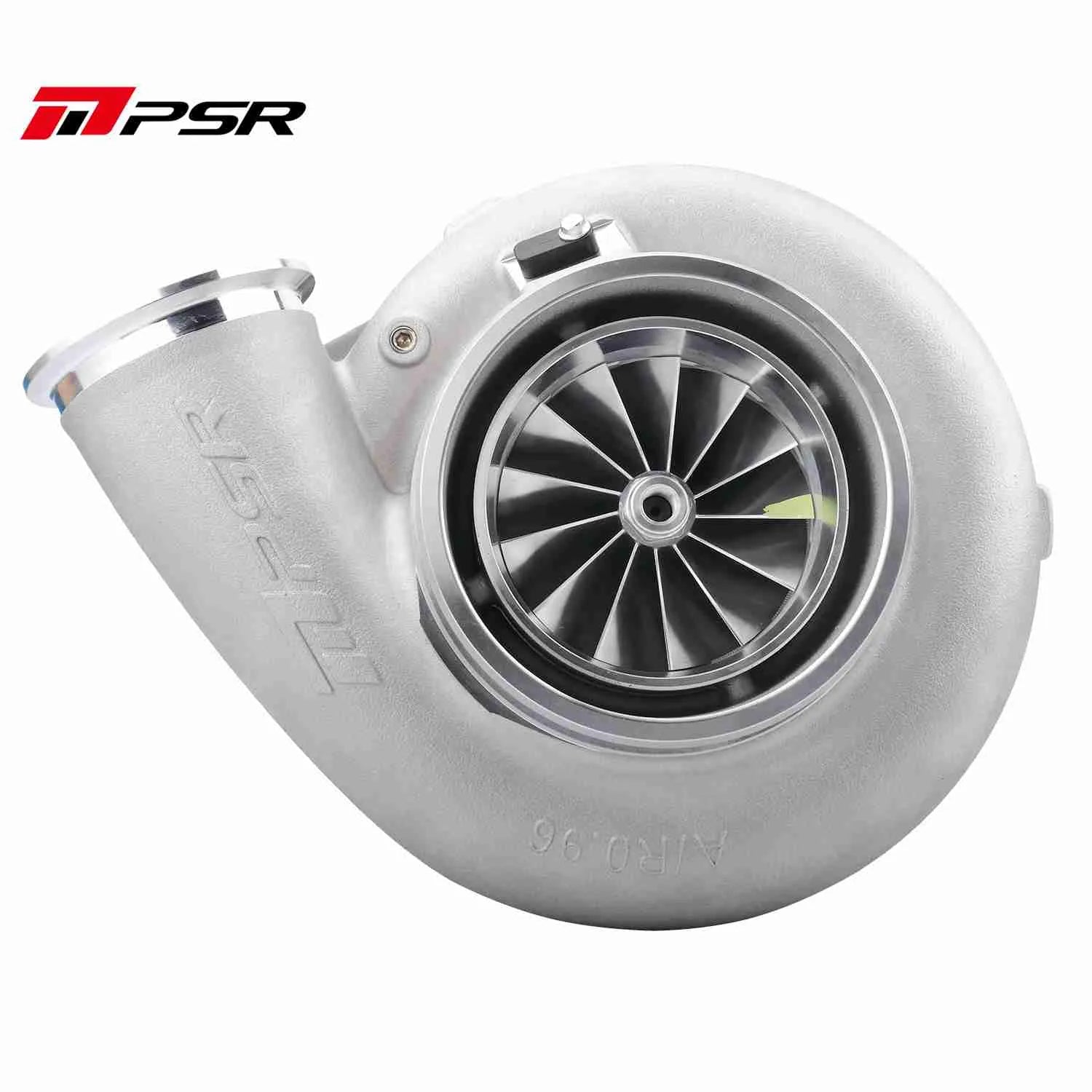

  • 13 Blade G-Aero billet compressor wheel 98mm inducer produces up to 2550 hp

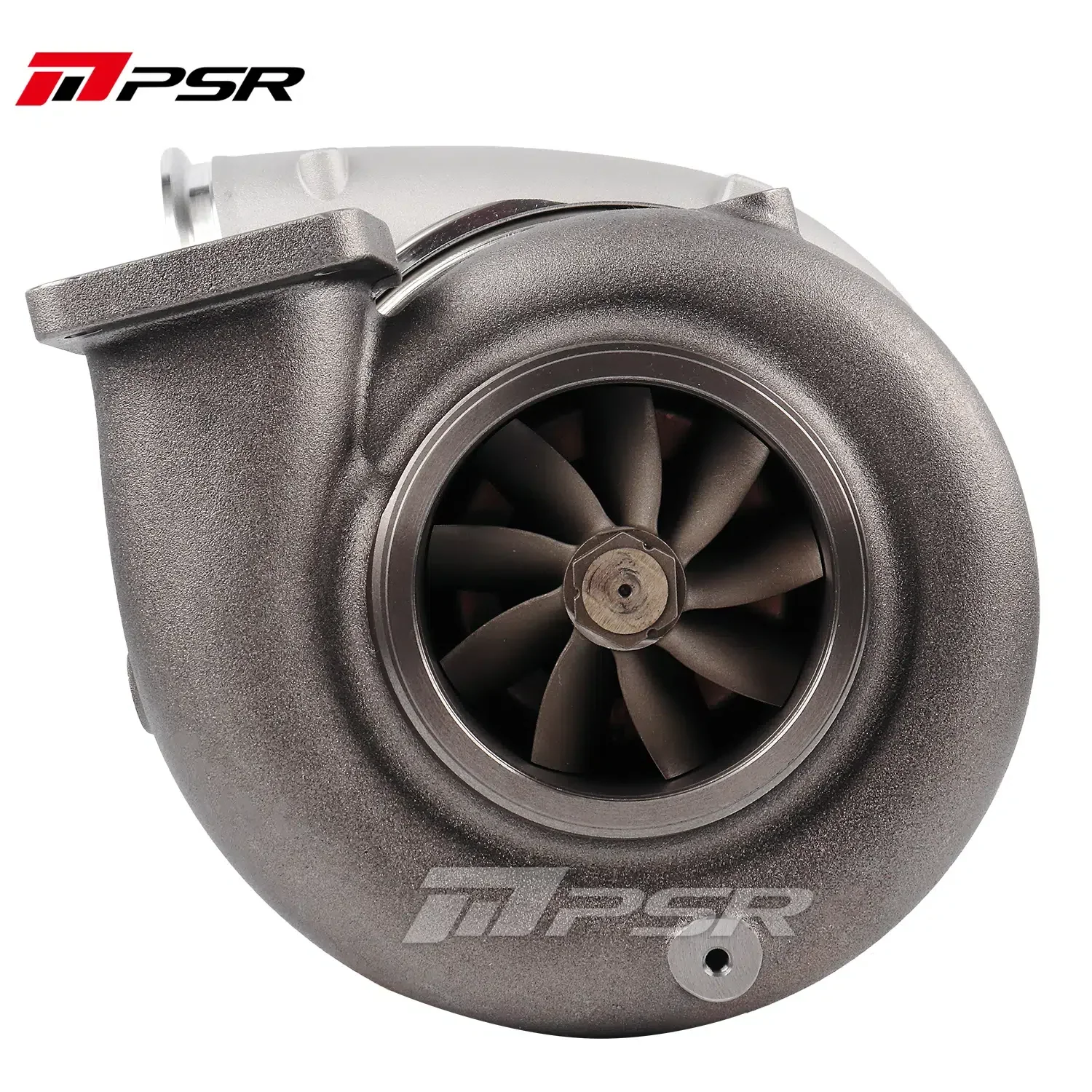

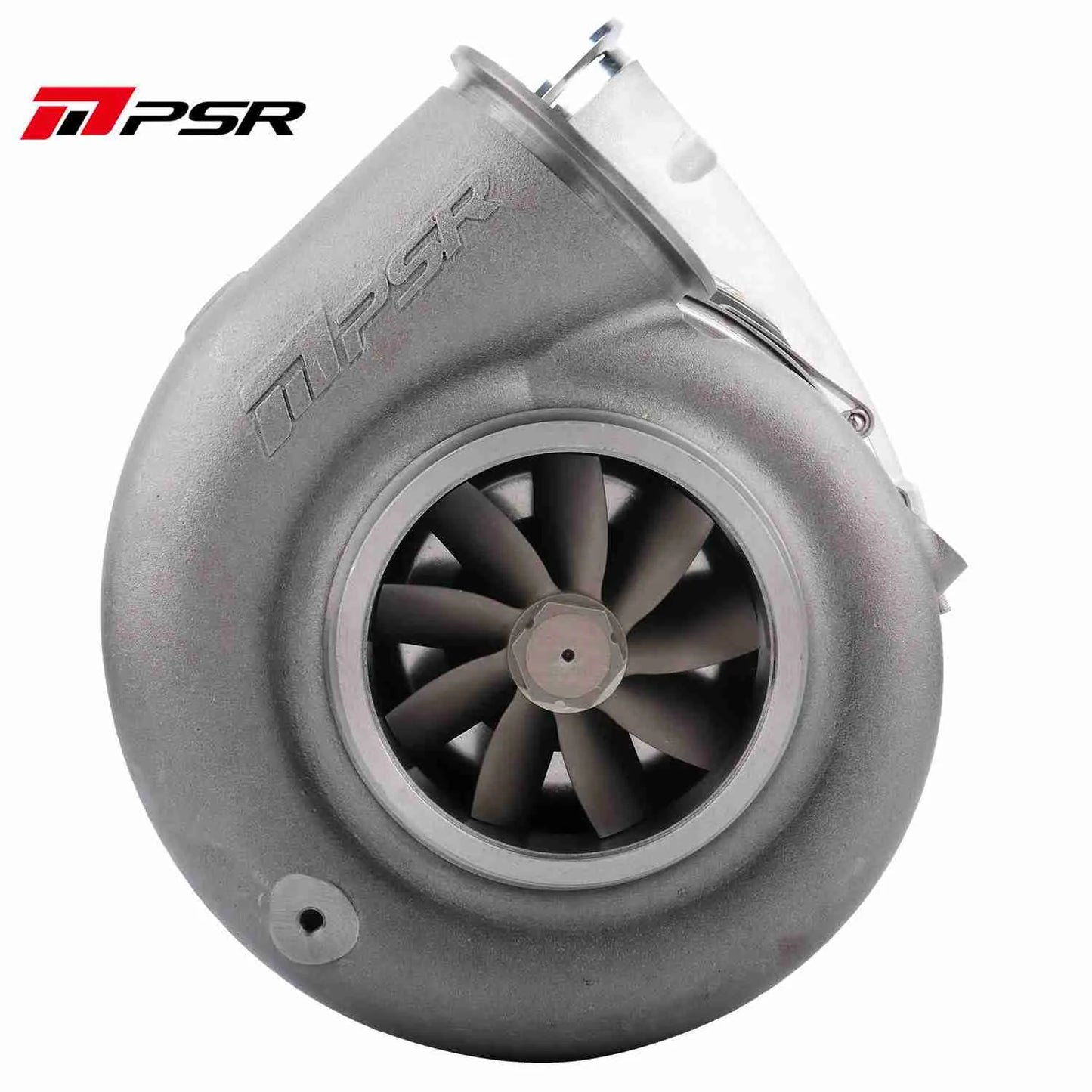

  • 9 Blade G-Aero Inconel 713c turbine wheel with more turbine flow
  • Fin cooled aluminum center housing, lighter weight
  • Anti-Surge ported-shroud compressor inlet, cover integrated with the speed sensor port
  • Installation Hardware: 4” flange kit for Comp. Outlet, T6 Gasket/3.5” flange kit for Turb. Inlet, 5” flange kit for Turb. Outlet and oil Drain Fitting kit are included by default
  • Oil Feed Fitting needs to be bought separately check the link if you need it, 🔗

Description

  • Compressor Wheel: 98.4*133.5*142.4mm
  • Turbine Wheel: 118*112mm
  • Compressor Inlet: 6” Hose
  • Compressor Outlet: 4” V-band
  • Compressor Housing A/R: 0.96
  • Turbine Inlet: 3.5” V-Band (DV Housings) or T6 Open
  • Turbine Outlet: 5” V-Band
  • Turbine Housing A/R: 1.09/1.25/1.41
  • Oil Feed: See graph below (OIL INLET) (an oil restrictor with ~1mm orifice is highly recommended)
  • Oil Drain: See graph below (OIL OUTLET)
