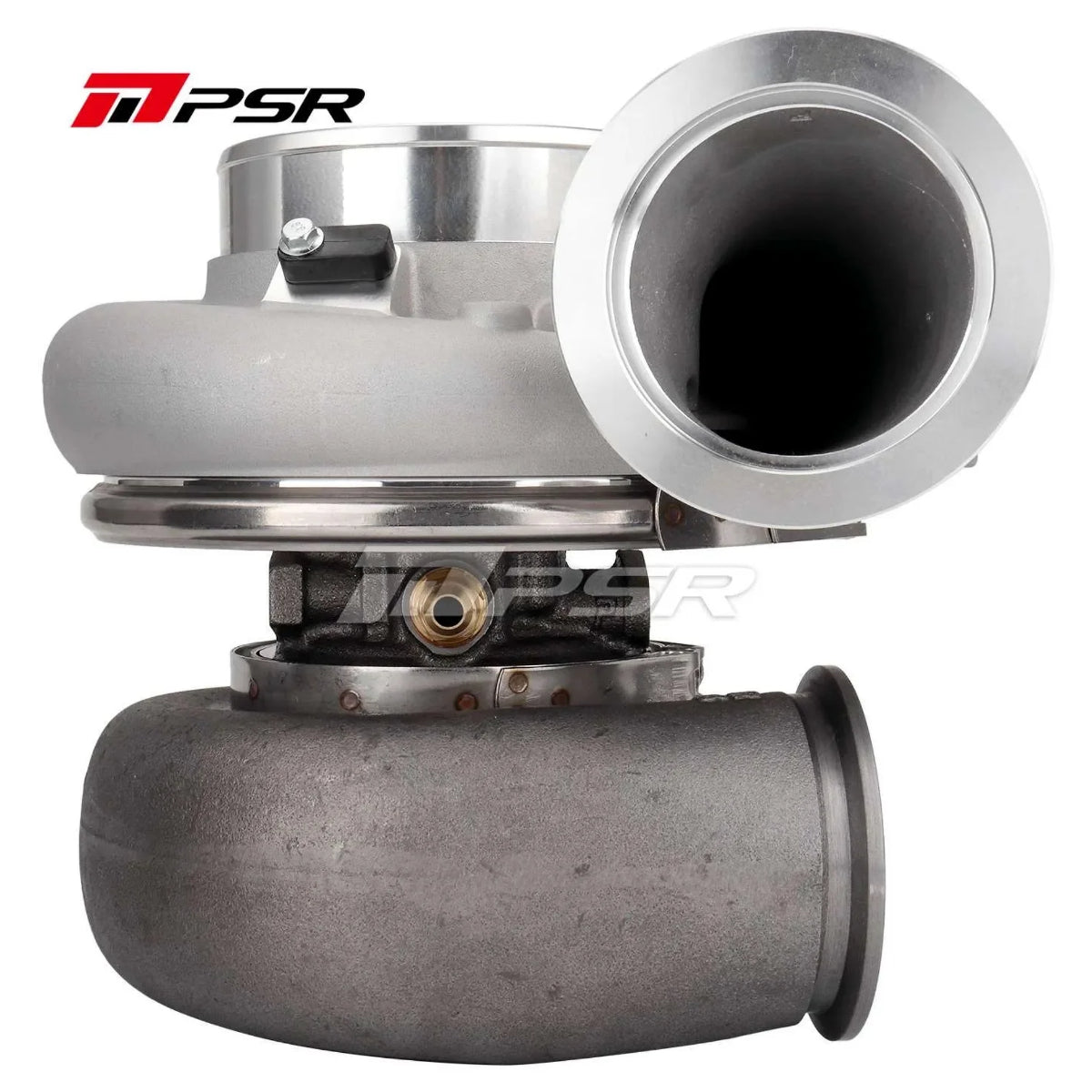

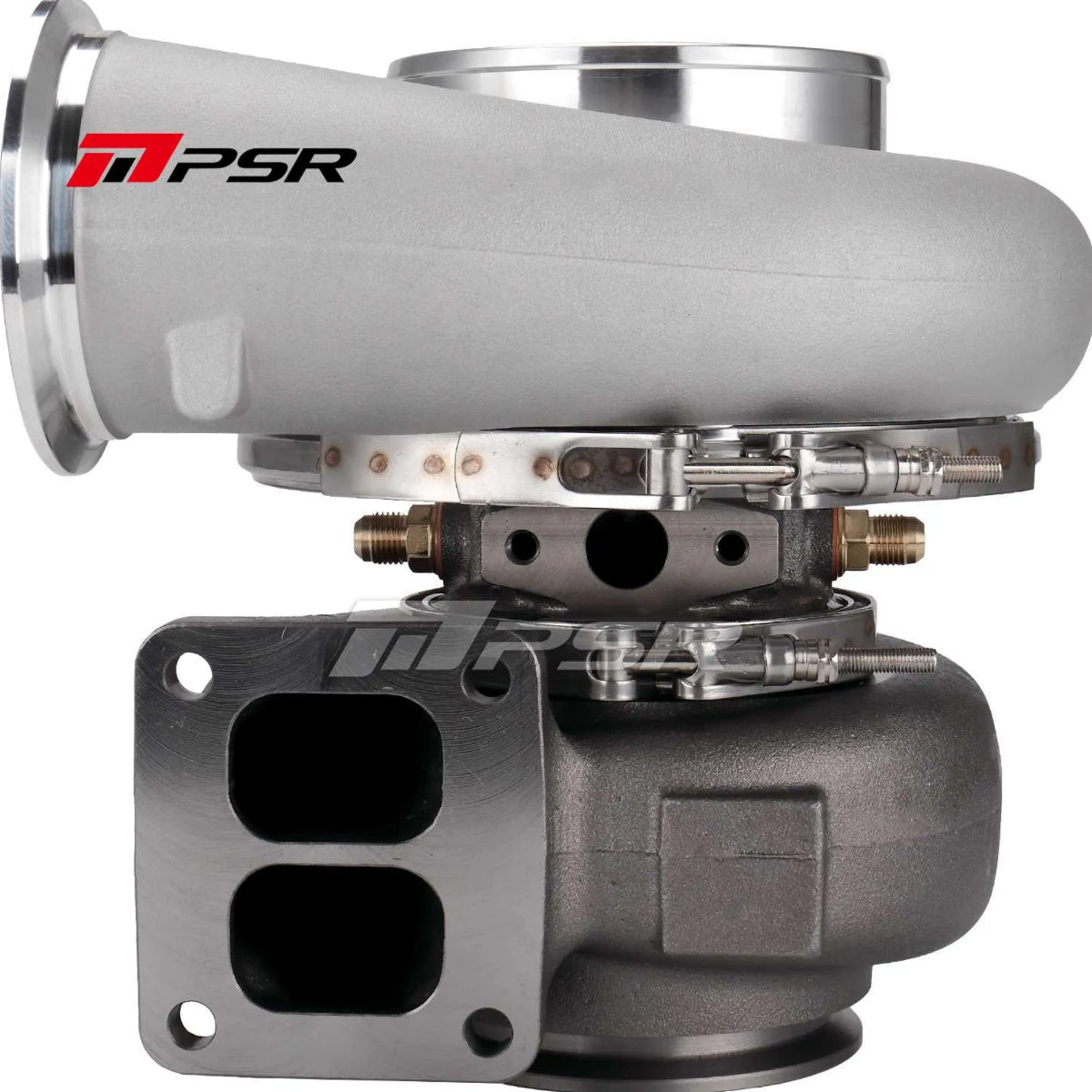

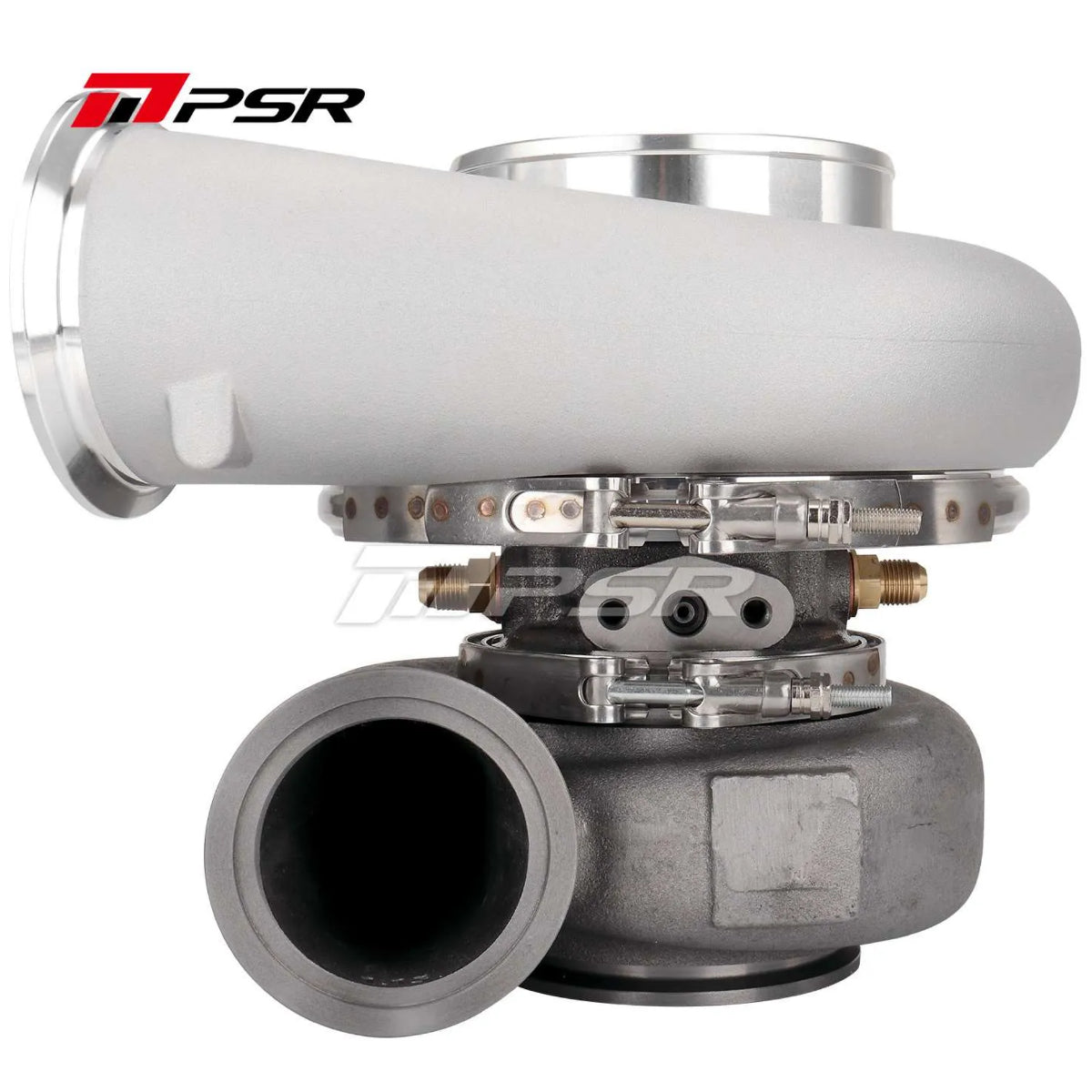

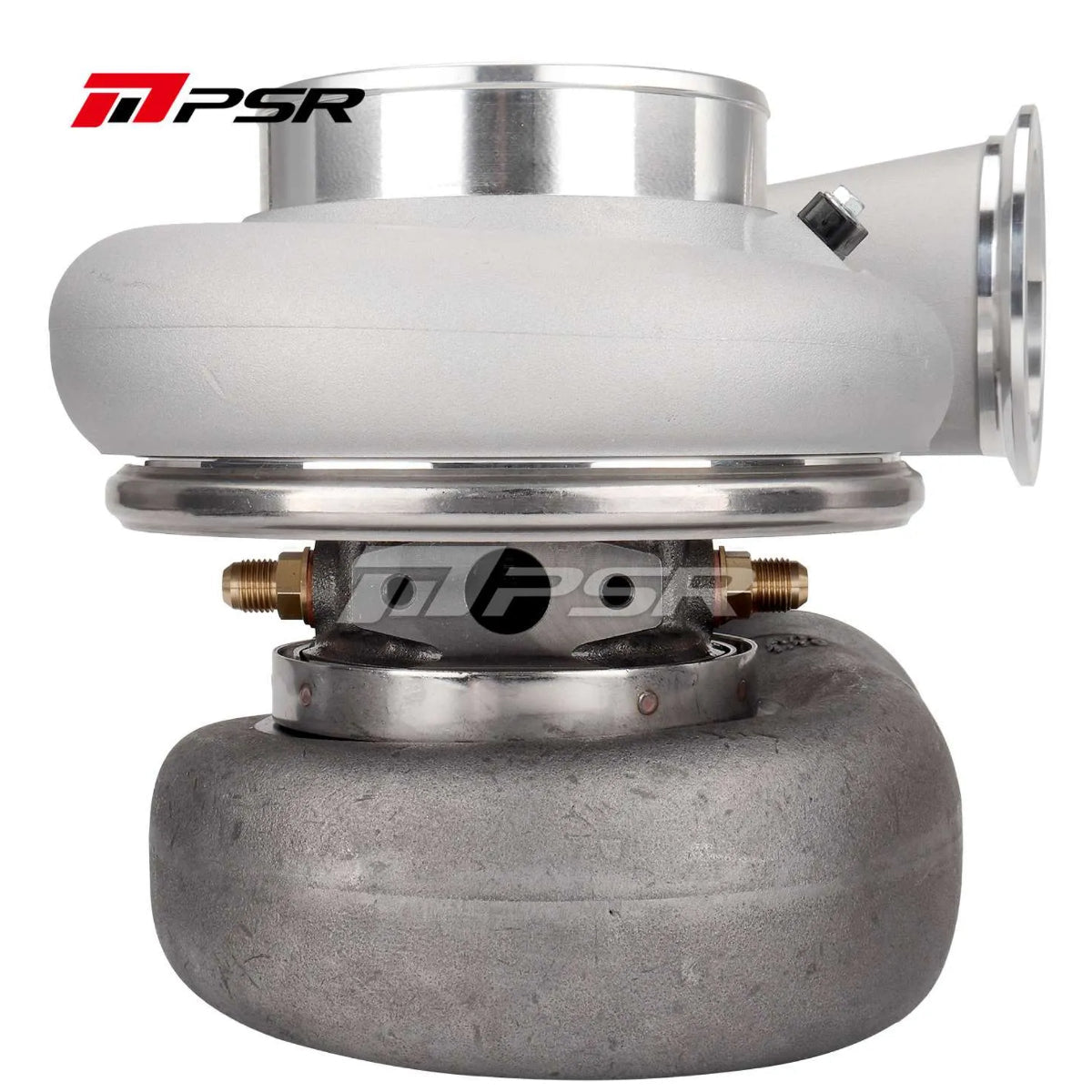

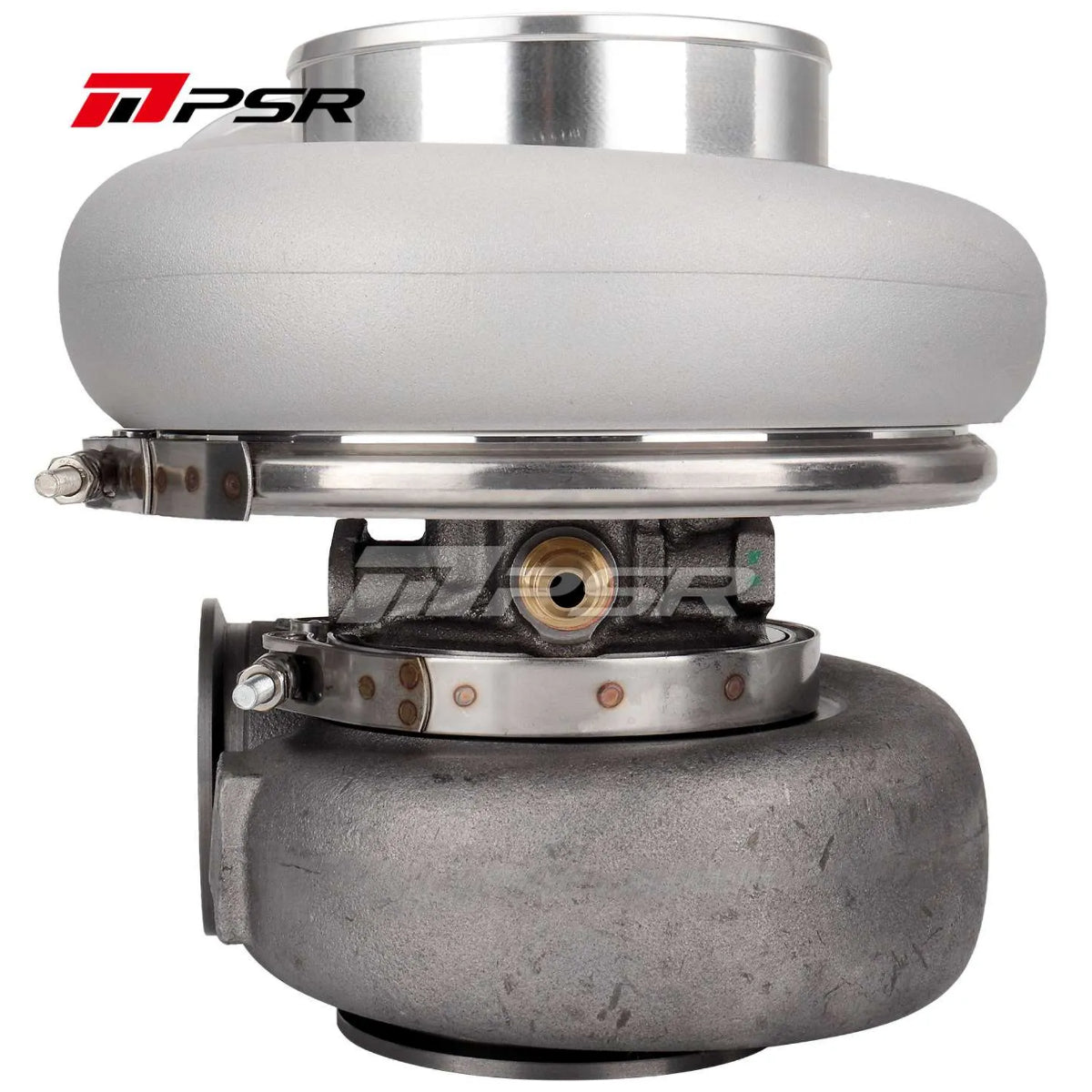

PULSAR 8582G Curved Point Mill Compressor Wheel Dual Ball Bearing Turb

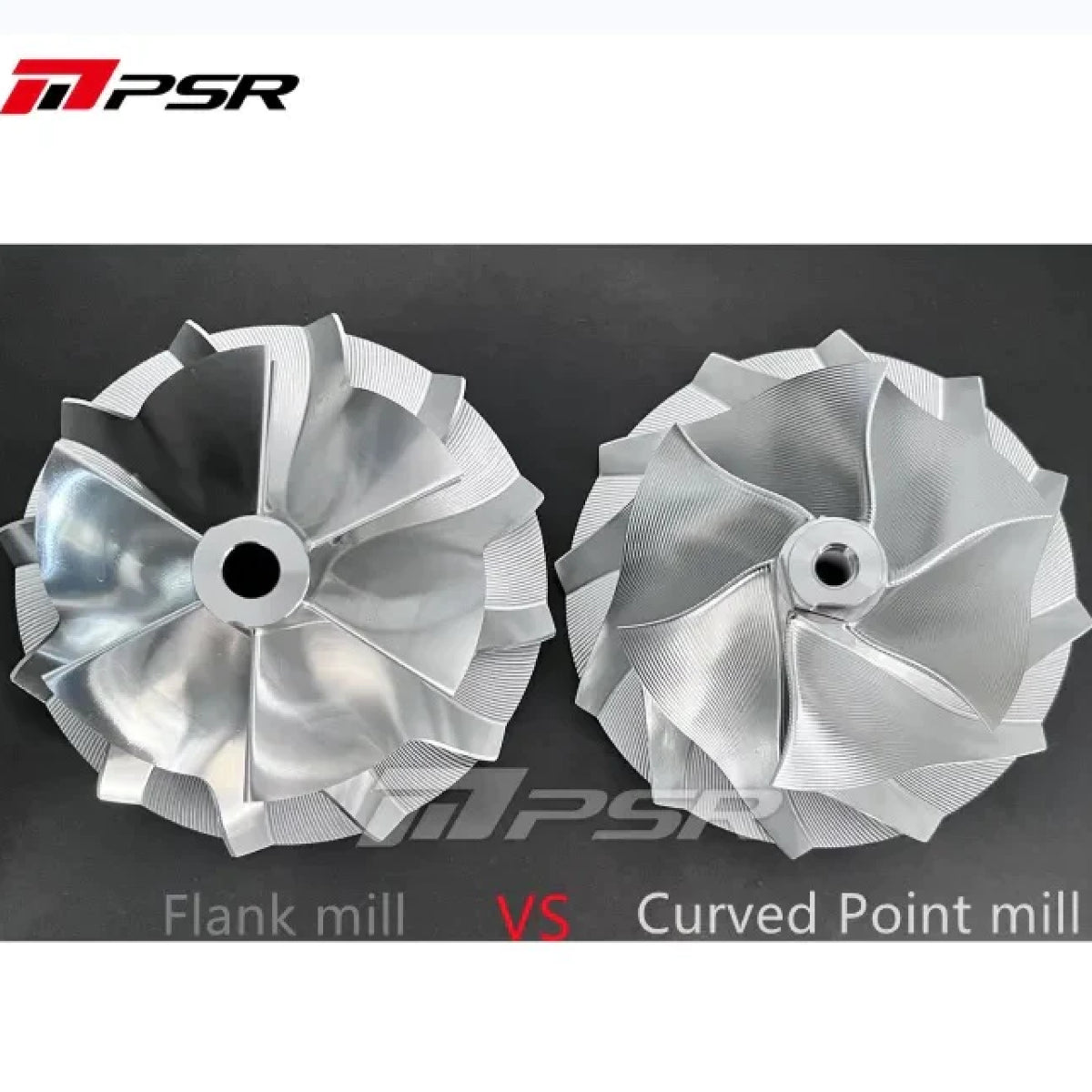

6+6 Blade, New design Curved point mill billet compressor wheel which can obtain the most mass flow through the curved vanes and allow increases in engine horsepower output
Dual ceramic ball bearing system provides optimal turbo response & better durability by reducing the shaft-motion

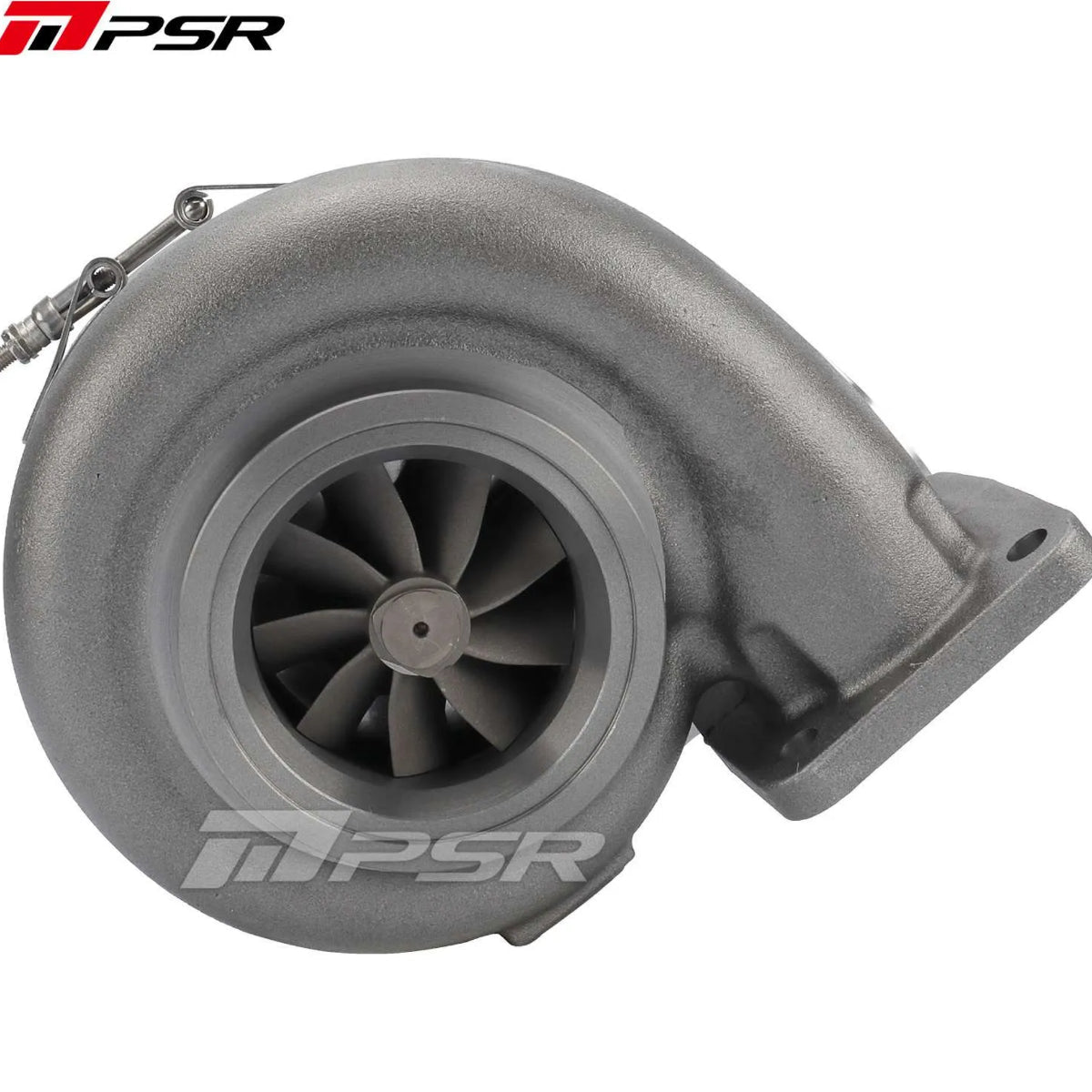

9 Blade G-Aero Inconel 713c turbine wheel
Anti-Surge ported-shroud compressor inlet, cover integrated with the speed sensor and pressure ports
Water fittings included with the super core
9 Options in Turbine Housing
Curved Point Mill Compressor Wheel: 85.15* 115*119.67mm

Turbine Wheel: 89*81.6mm
Compressor Inlet: 5″ Hose
Compressor Outlet: 3″ V-Band
Turbine Inlet: 3″ V-Band/T4 open/ T4 divided
Water Ports: -6AN
Oil Feed: Flange Required(Recommended size: -4AN Std T4 Flange Non-Restricted)
Oil Drain: -12AN(O-Ring sealed Flange Kit Incl’)
9 Options in Turbine Housing: T4(Open) 1.15 A/R; T4(Divided) 0.95A/R, 1.01 A/R, 1.15 A/R, 1.28 A/R, 1.44 A/R; Dual v-band 1.01 A/R, 1.15 A/R and 1.28 A/R
