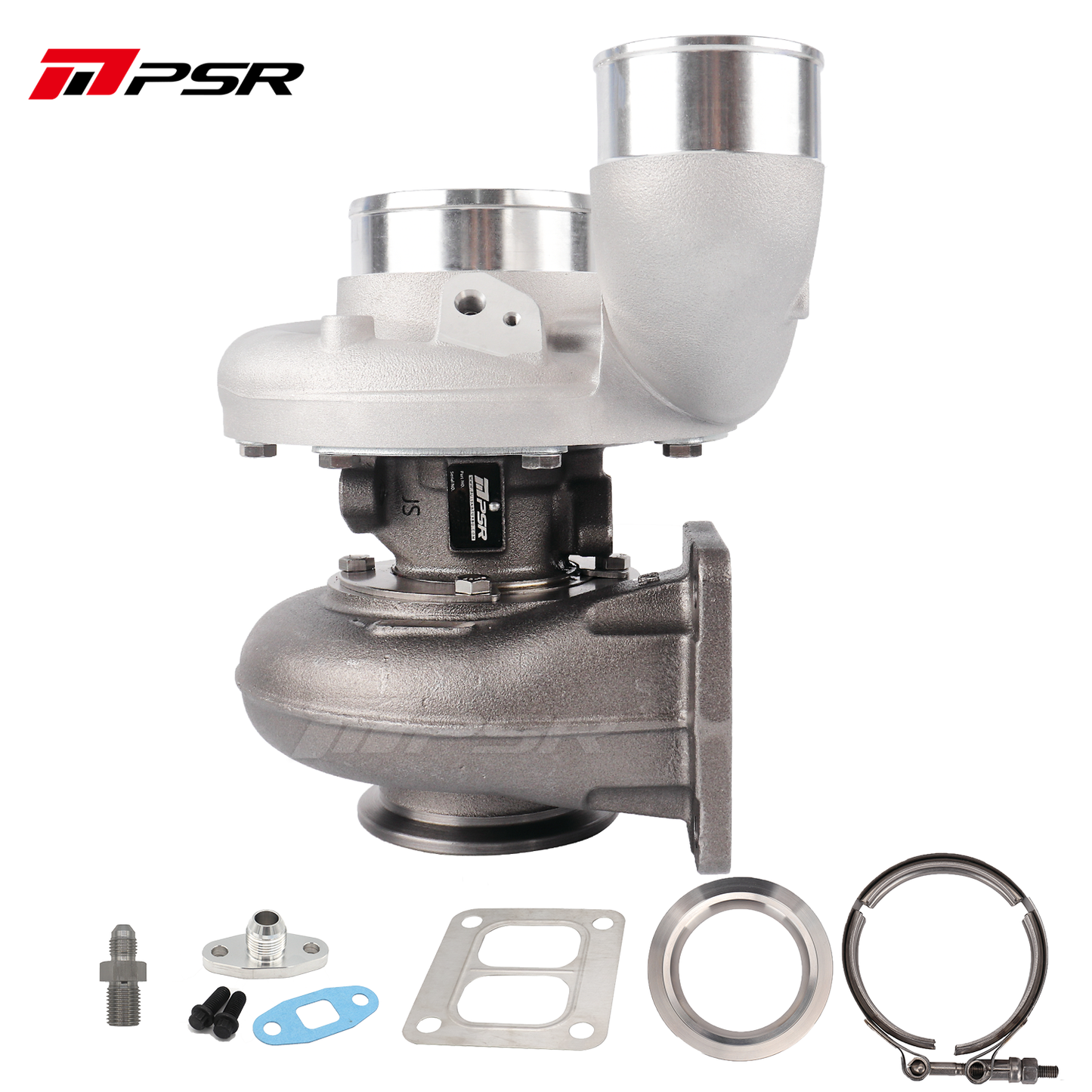

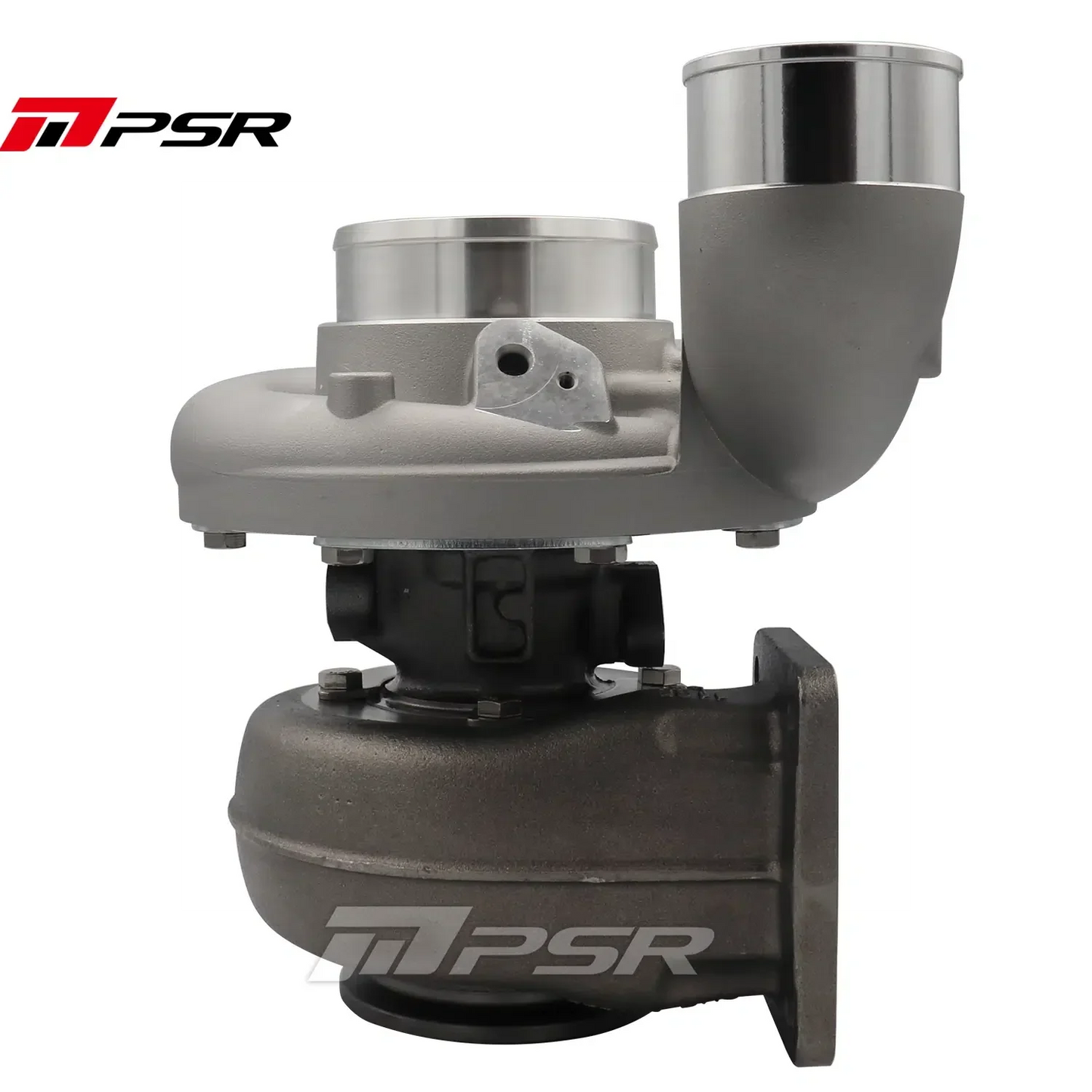

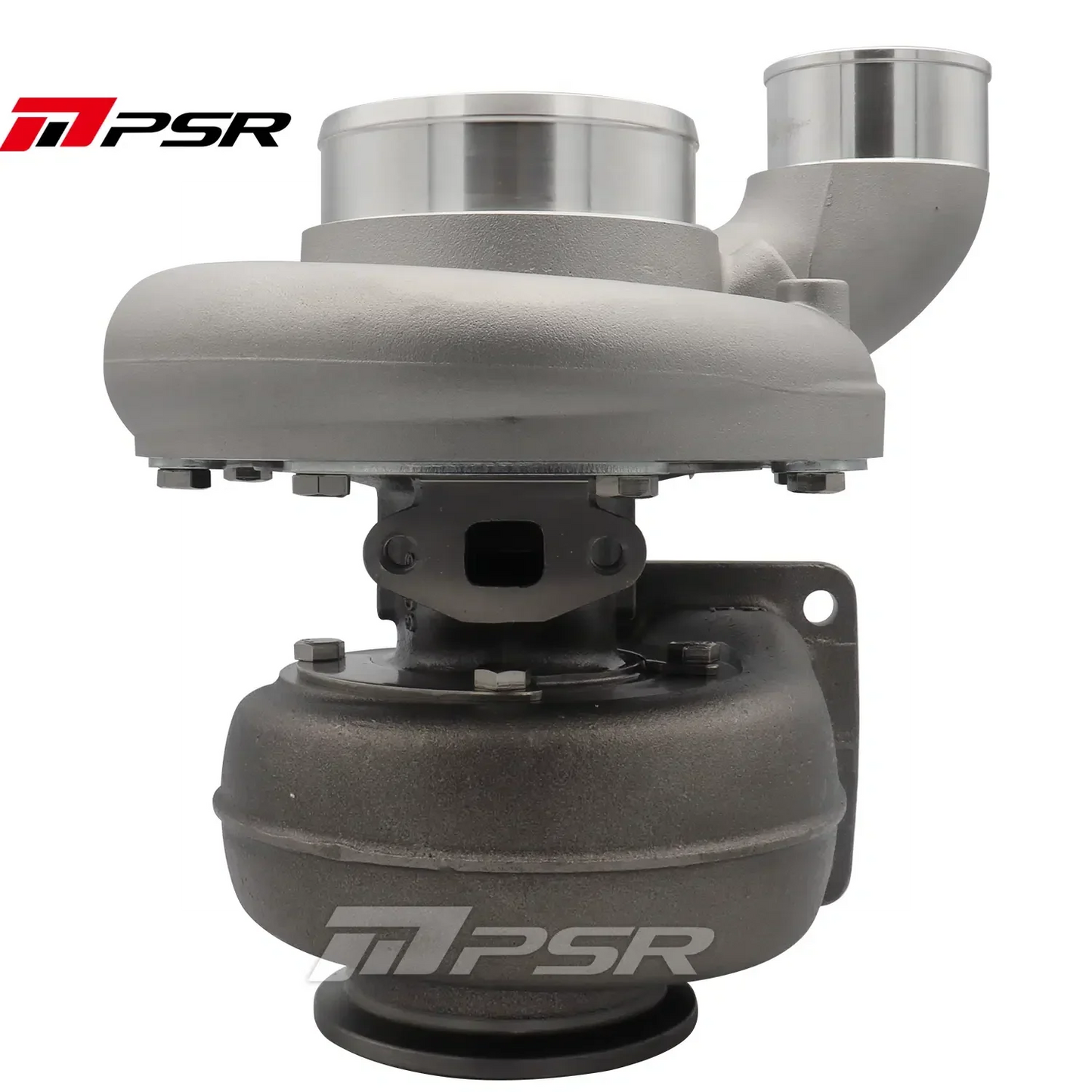

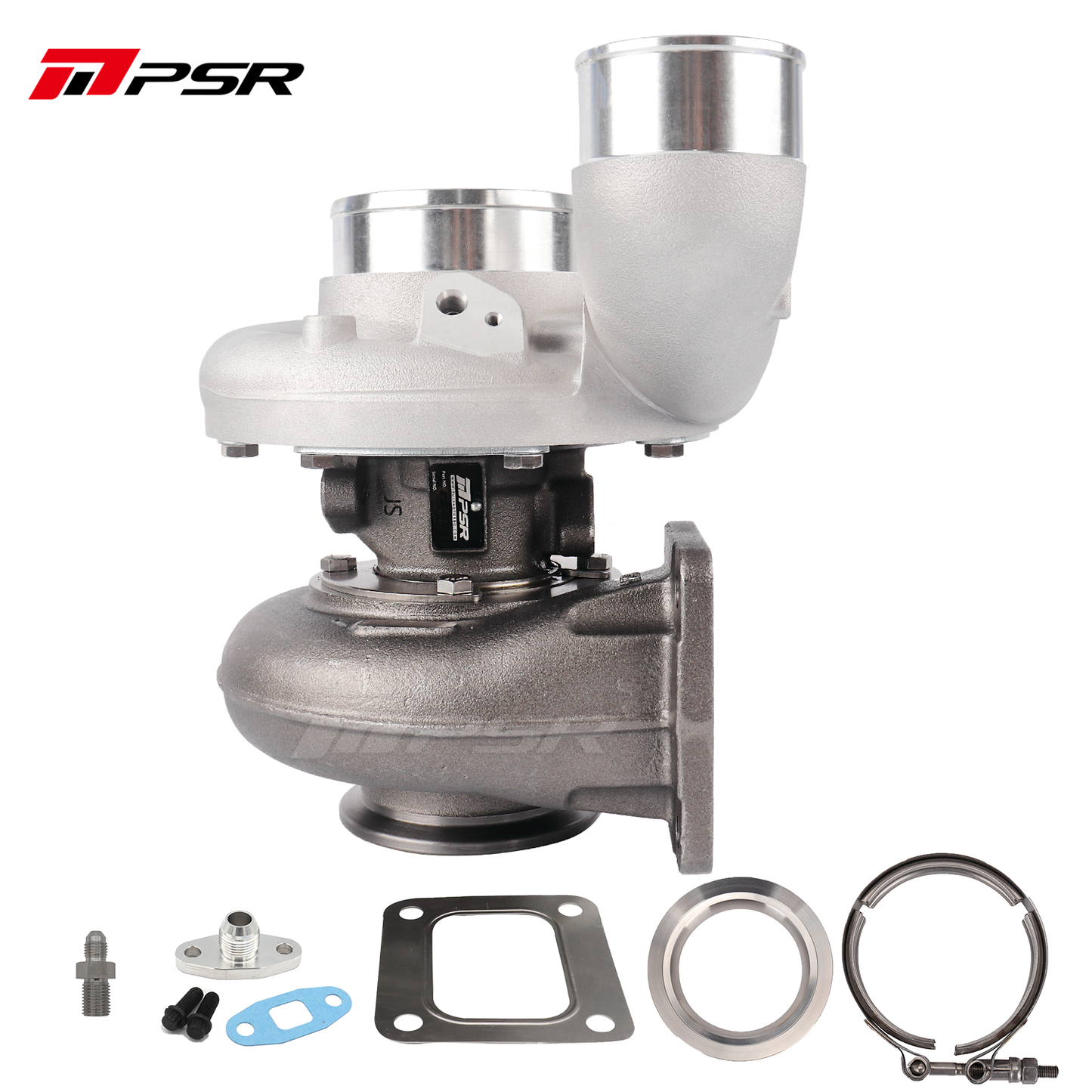

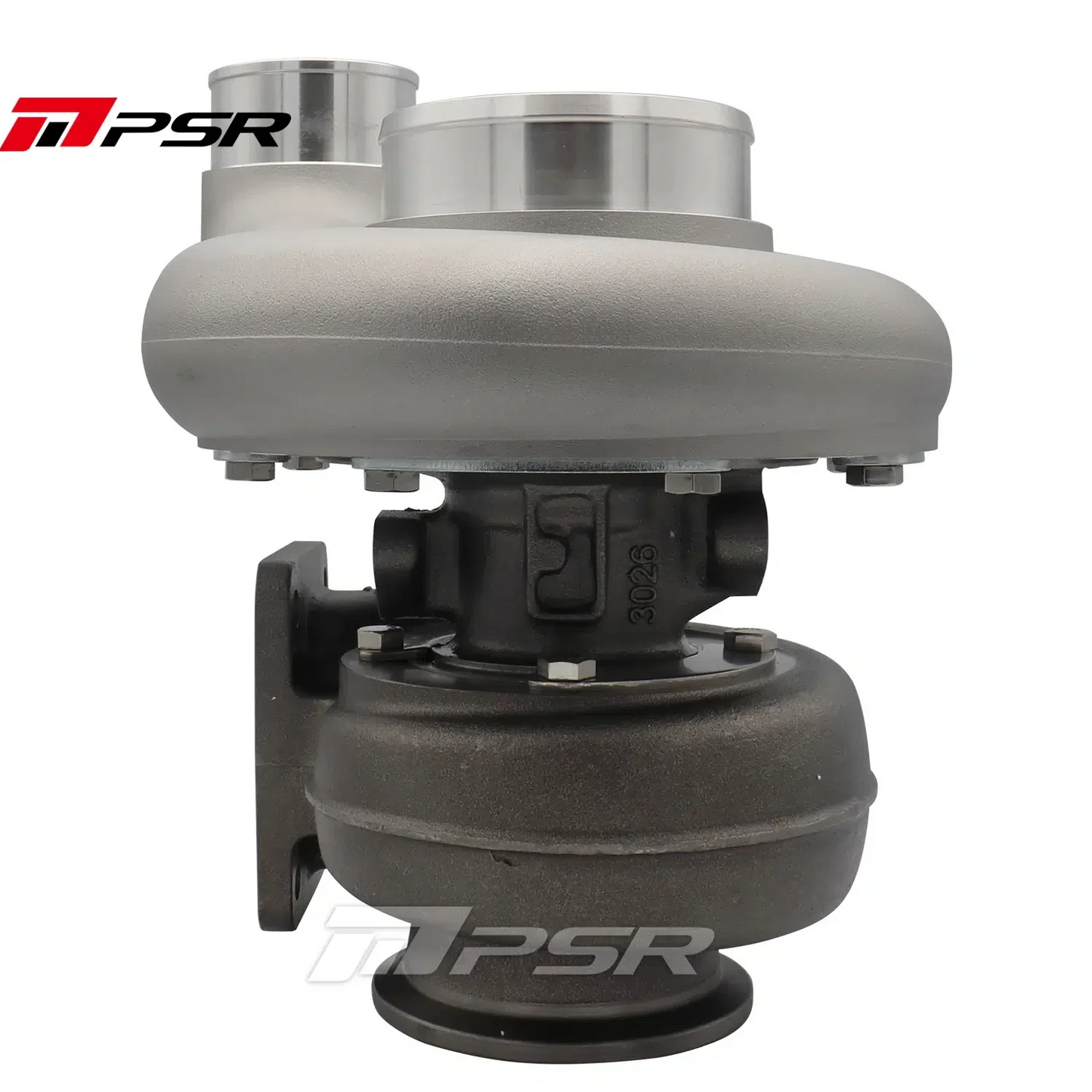

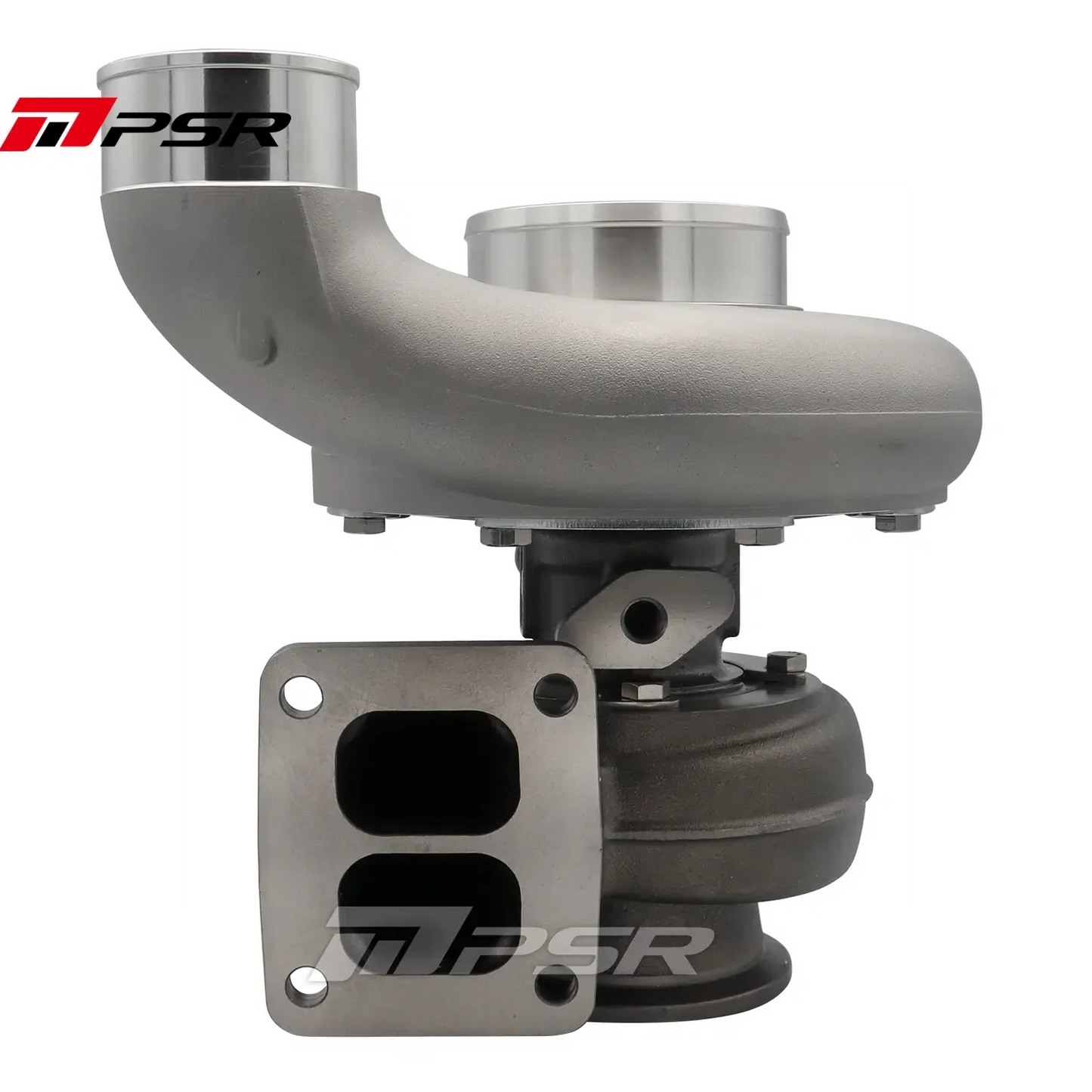

PULSAR Billet 363D 366D 369D DUAL CERAMIC BALL BEARING Turbo with 90° Elbow Outlet Compressor

PULSAR Billet 363D 366D 369D DUAL CERAMIC BALL BEARING Turbo with 90° Elbow Outlet Compressor

$1,679.26 NZD
$1,679.26 NZD
Sale Sold out
Taxes included. Shipping calculated at checkout.
  • THIS IS A SPECIAL ORDER ITEM. Once you complete your order, we will then order it from the supplier. If you are urgently needing this item contact us for an accurate ETA from our supplier before purchasing!
Compressor Wheel Options
Turbine Wheel Options
Turbine Housing Options
  • 90° Outlet Compressor Cover
  • Dual Ceramic Ball Bearing Systems
  • 3 Options in Billet Compressor Wheels with Extended Tapered Tip Technology

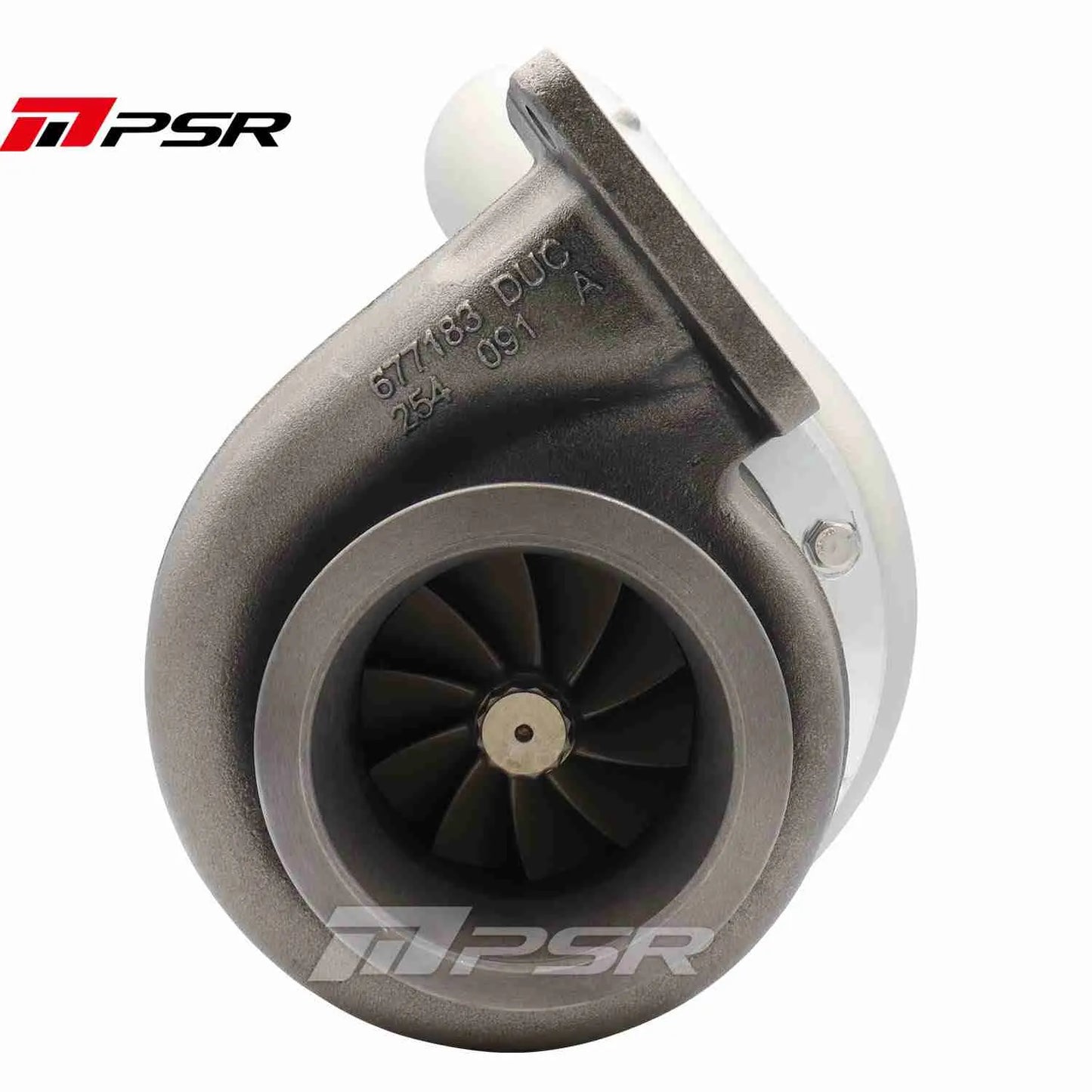

  • Inconel 713c 80*73mm Turbine Wheel
  • Compressor cover with ported-shroud inlet and integrated with the speed sensor port
  • Max Flow Rate: 100+ lb/min, rated @ 950FWHP

Description:

  • Bearing Systems: Dual Ceramic Ball Bearing
  • Compressor Wheel: 363D (63*87mm, 7+7), 366D (66*91mm, 7+7), 369D (69*94mm, 6+6)
  • Turbine Wheel: 80*73mm
  • Compressor Inlet: 4.0” Hose
  • Compressor Outlet: 90°, 2.5” Hose

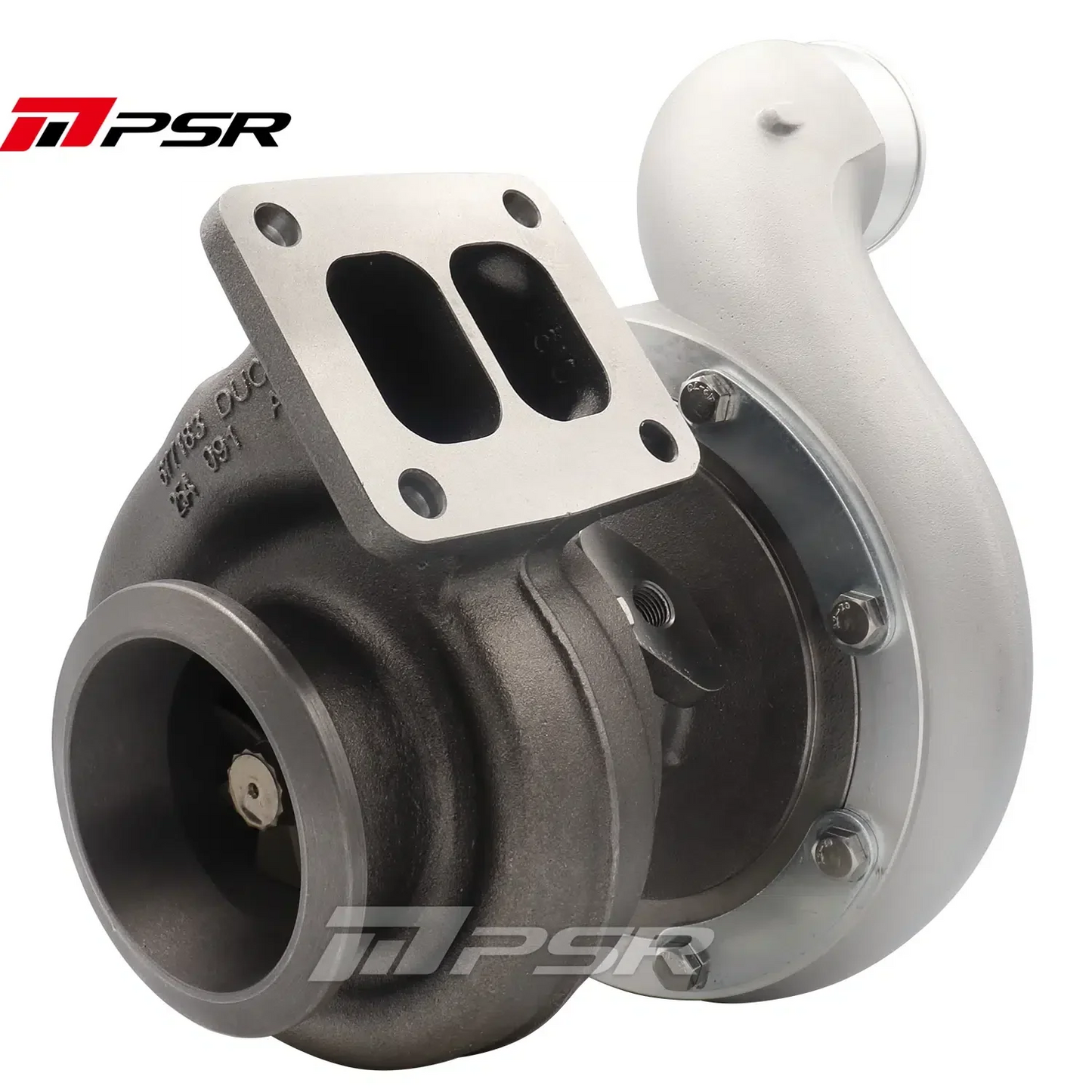

  • Turbine Inlet: T4 Divided
  • Turbine Outlet: 4.21″ Marmon
  • Oil Feed: 1/4″ NPT
  • Oil Drain: Std T4 Flange
