PULSAR GTX3071 Gen2 Compact Dual Ball Bearing Turbocharger

$1,084.00 NZD

~~$1,084.00 NZD~~ $1,084.00 NZD

Sale Sold out

Taxes included. Shipping calculated at checkout.

THIS IS A SPECIAL ORDER ITEM. Once you complete your order, we will then order it from the supplier. If you are urgently needing this item contact us for an accurate ETA from our supplier before purchasing!

Compressor Housing Standard T51R Mod

Turbine Housing Without Turbine Housing 0.63 T3 Inlet - 3.0 V-band Outlet 0.82 T3 Inlet - 3.0 V-band Outlet 1.06 T3 Inlet - 3.0 V-band Outlet 0.85 T4 Divided Inlet - 3.0 V-band Outlet 0.83 DVB - 3.0 V-band Outlet 1.06 DVB - 3.0 V-band Outlet

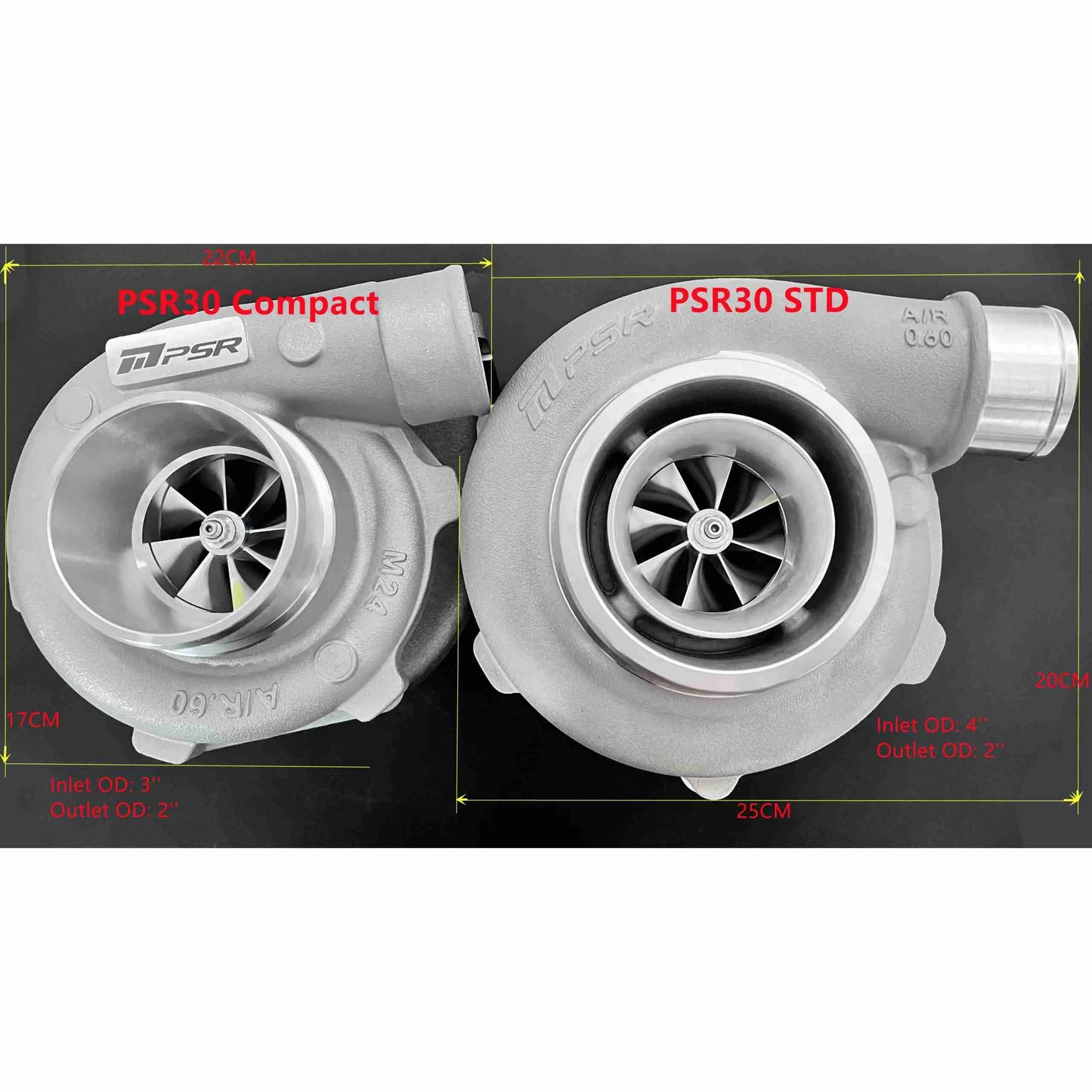

Compact compressor cover, 3” inlet, 2” outlet
Dual Ceramic Ball Bearing System
8 Blade Gen2 Billet Compressor Wheel with Extended Tapered Tip Technology
Inconel 713c 10 Blade Turbine Wheel
Multiple options for turbine housing
V-Band Flange kit(s) for the exhaust housing included
Max Air Flow rate: ~60 lb/min, rated @ 650 FWHP
Compressor Wheel: 54*71mm
Turbine Wheel: 60*55mm
Compressor Inlet: 3″ Hose
Compressor Outlet: 2″ Hose
Turbine Inlet: T3, T4, or 2.5″ V-Band
Turbine Outlet: 3″ V-Band (3.55″ OD)
Oil Feed: -4 AN connect to the Oil Restrictor
Oil Drain: Std T3 Flange
Water In/Outlet: M14*1.5

We highly recommended running water cooling for better durability.

Compact turbos are great for applications where there is less space
