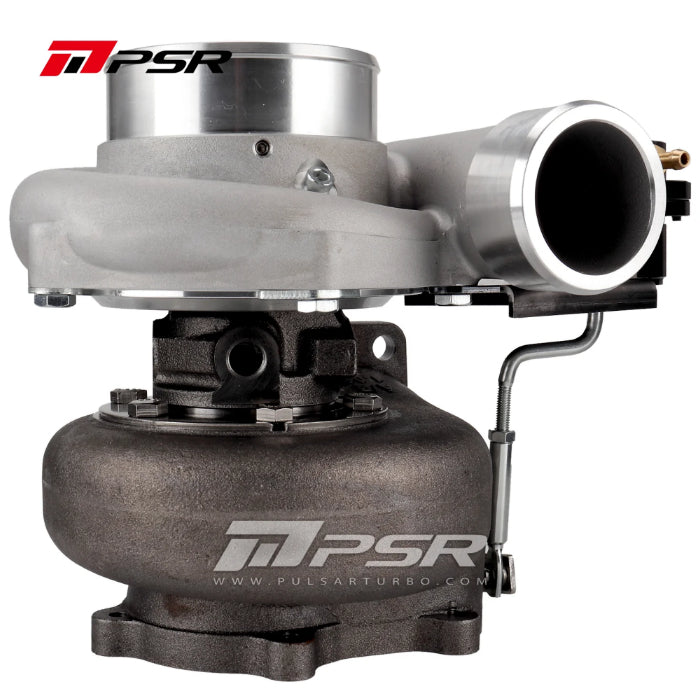

PULSAR GTX3584 Gen 3 XR6 Turbo

PULSAR GTX3584 Gen 3 XR6 Turbo

$1,717.00 NZD
$1,717.00 NZD $1,717.00 NZD
Sale Sold out
Taxes included. Shipping calculated at checkout.
  • THIS IS A SPECIAL ORDER ITEM. Once you complete your order, we will then order it from the supplier. If you are urgently needing this item contact us for an accurate ETA from our supplier before purchasing!
Compressor Housing Options
Turbine Housing Options
Actuator Pressure



  • New Aerodynamic 10 blade billet compressor wheel flow more air over the stock cast or Gen1 11 blade billet wheel
  • Max Air Flow rate: ~90 lb/min, rated @ 1000 FWHP
  • Larger Turbine Wheel for higher flowability
  • Genuine structure and rebuildable dual ceramic ball bearing system
  • Larger 0.72A/R compressor cover with Anti-Surge 4″ inlet
  • Billet actuator with black anodized coating
  • 3 Layer Stainless Steel 5 Bolt Gasket

Description

  • Compressor Wheel: 67.3*84.4mm(extended tip diameter: 87.3mm)
  • Larger Turbine Wheel for Higher Horsepower: 74*66mm
  • Compressor Inlet: 4″ Hose
  • Compressor Outlet: 2.5″ Hose
  • Turbine Inlet: T3 Open
  • Turbine Outlet: 5 Bolt
  • Turbine housing internal wastegate hole: 33mm
  • Water Ports: -6AN
  • Oil Feed: -4AN to the Oil Restrictor
  • Oil Drain: Std T3 Oil Drain Flange
  • Actuator working pressure: 15psi/10psi/5psi

Application:

Replacement for factory XR6 PT3582 PT3576 Turbos.

  • 2002- BA FALCON XR6
  • 2004- BF FALCON XR6
  • 2008- FPV F6/TYPHOON/TORNADO
  • 2006- TERRITORY
  • 2008- FG FALCON XR6
  • 2008- FG FALCON G6E
