Sensor Adaptor Sandwich Plate
Sensor Adaptor Sandwich Plate
- THIS IS A SPECIAL ORDER ITEM. Once you complete your order, we will then order it from the supplier. If you are urgently needing this item contact us for an accurate ETA from our supplier before purchasing!
Couldn't load pickup availability

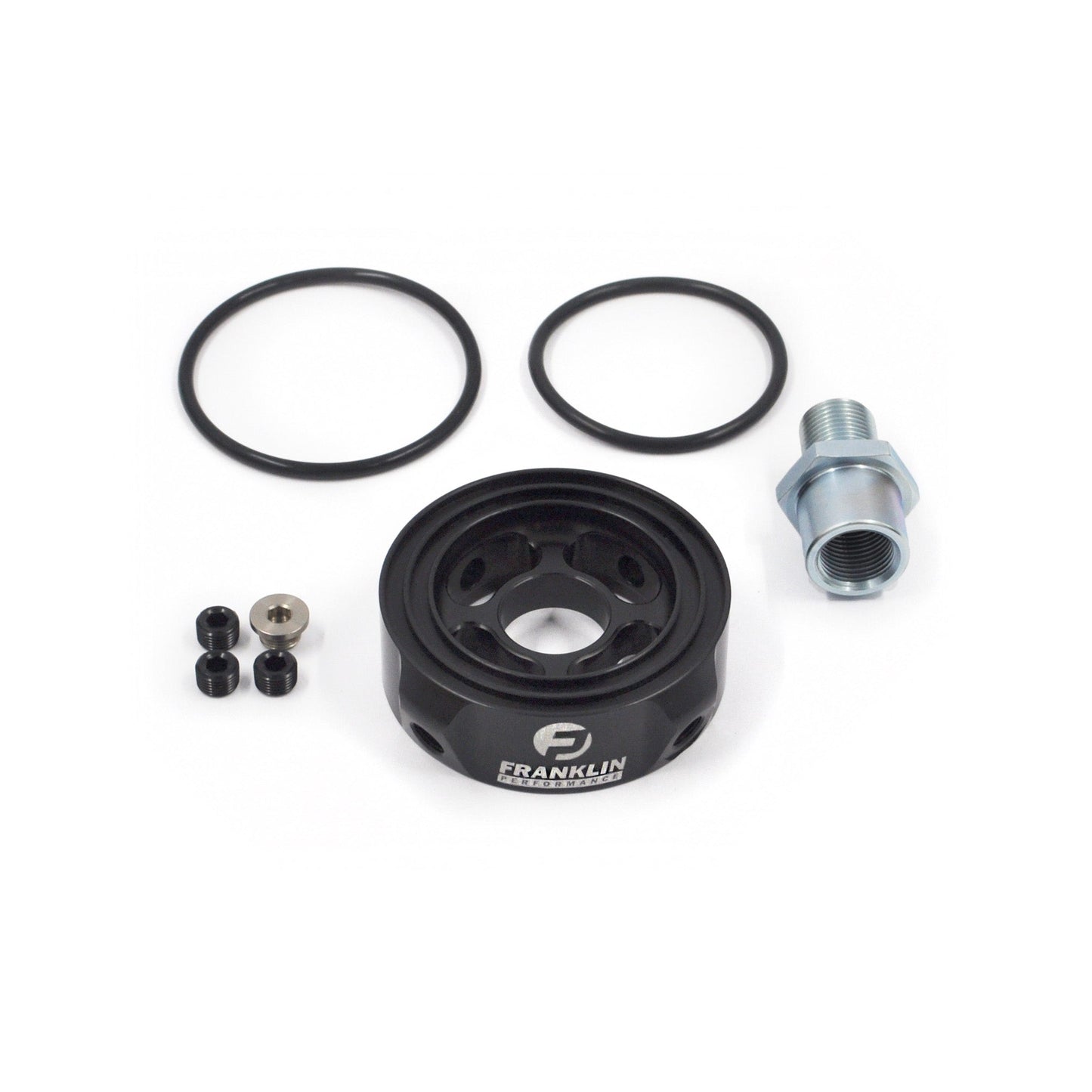

Sandwich plate adaptor for installing oil pressure or temperature sensorsB between the oil filter and the engine on most Japanese vehicles.
This is very high quality product that we have designed and manufacture at our factory in Napier, New Zealand. The productB has a unique feature that the sensor ports are angled away from the engine, giving more clearance to install larger sensors.
Three 1/8"NPT ports and one M10x1.0 port are provided for temperature or pressure sensors.
The sandwich plate is supplied a choice of different threaded adaptors to suit your application. The adaptors are:B 3/4" UNF, 13/16"-16 UNF, M20x1.5 and M18x1.5. Please choose the adaptor you require from the menu.
The main body is made from billet high-grade 6061 aluminium, then anodised black for great looks and corrosion resistance. The adaptors are made from medium tensile 1045 steel and then zinc plated.
The sensor adaptor sandwich plate has two o-rings on the block side to fit a wider range of vehicles. The o-ring dimensions are:
- Inner o-ring: 58mm inside x 66mm outer diameter.
- Outer o-ring: 69mmB inside x 77mm outer diameter.
