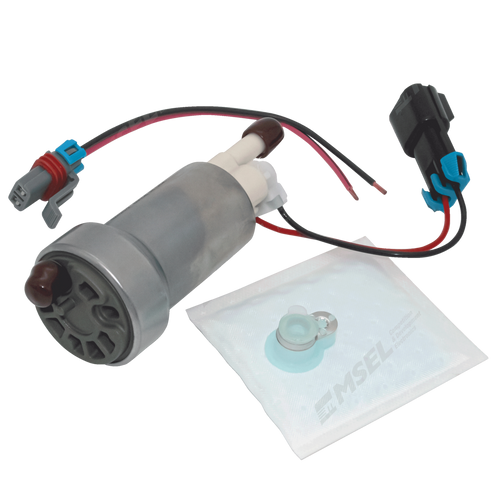

TI Automotive (Walbro) 535lph High Pressure E85 Intank Fuel Pump

Turbine design E85 suitable high performance fuel pump from TI Automotive (was Walbro)

• high pressure model - F90000295
• same basic fuel pump as F90000285 but with no check valve. If running two of these pumps we recommend either the FPTI285K or running external check valves
• dual channel turbine design, for high performance and high temperature applications
• designed for engines with more than 600hp, suitable for 900hp+ at 60psi in a naturally aspirated petrol applicatiom
• 535lph at 40psi fuel pressure with 13.5V
• electrical lead connector and pre-screen filter included

Flow rates and horsepower ratings supplied by TI Automotive

Please use the part number when comparing TI Automotive fuel pumps as there is confusion in the market place over exact flow rates.

Professional installation recommended.

Accessories (sold separately)

• Fuel Pump Adapter - 3/8" to -6AN click here.
• Through Tank Sealed Electrical Connector click here.
• High Amp Flanged M6 Bulkhead Stud click here.
