TI Automotive (Walbro) Brushless Fuel Pump Kit

TI Automotive (Walbro) Brushless Fuel Pump Kit

Regular price $1,314.28 NZD
Regular price $1,314.28 NZD Sale price $1,314.28 NZD
Sale Sold out
Taxes included. Shipping calculated at checkout.
  • THIS IS A SPECIAL ORDER ITEM. Once you complete your order, we will then order it from the supplier. If you are urgently needing this item contact us for an accurate ETA from our supplier before purchasing!

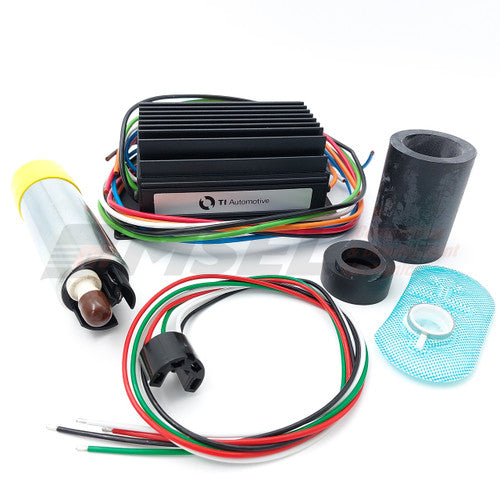

TI Automotive (Walbro) BKS1001 Brushless Intank Fuel Pump Kit

Brushless technology with variable speed control pumps up to 550lph (at 40psi).

  • rated for use with petrol and E85
  • for between 650 and 1000hp applications
  • suitable for both naturally aspirated and forced induction applications
  • reduced system current draw
  • reduced noise compared with traditional pumps
  • maximum system pressure 7.72bar (112psi)
  • 39mm diameter
  • includes variable speed controller (pump and controller not available seperately)



Operating Modes - Speed Controller Wire Pump Duty Cycle
Wired to Ground 45%
1 to 4 Hz 0% (pump off)
5 to 9 Hz 45%
10 to 95Hz 45 to 100%
96 to 100Hz 100% (full speed)
Disconnected 100% (full speed)

Two speed control can easily be setup by putting the speed control wire to ground to flow 70% less fuel (from full speed).  Connect the speed control wire to a PWM output to have full variable speed control (from 45% to 100% duty cycle).

TI Automotive brushless fuel pump duty cycle flow rates



TI Automotive Walbro brushless intank fuel pump kit

Petrol flow rate at 100% duty cycle.
