Weld-On Filler Neck & Cap

Weld-On Filler Neck & Cap

$60.00 NZD
$60.00 NZD
Sale Sold out
Taxes included. Shipping calculated at checkout.
  • THIS IS A SPECIAL ORDER ITEM. Once you complete your order, we will then order it from the supplier. If you are urgently needing this item contact us for an accurate ETA from our supplier before purchasing!
Size
Material
Cap Colour

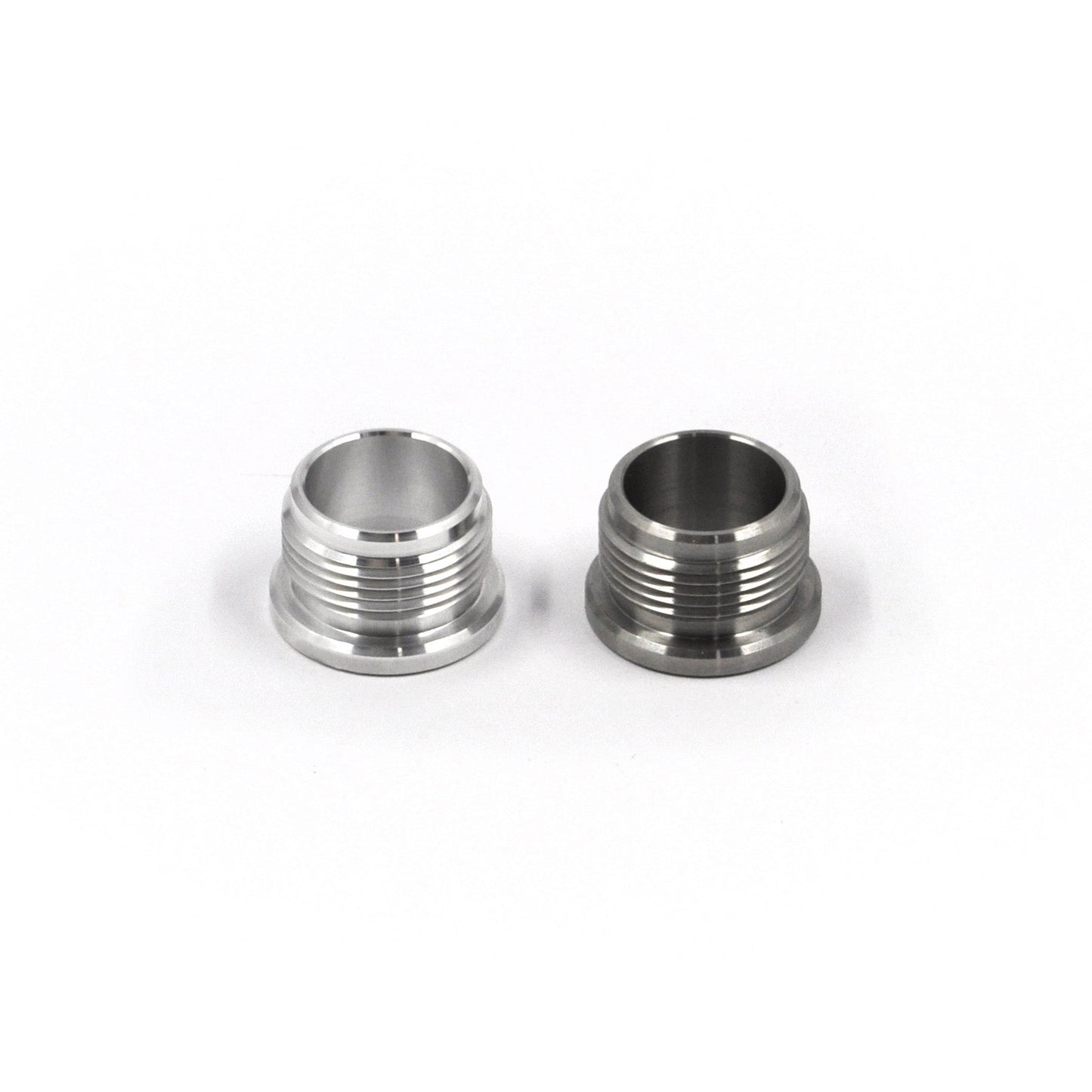

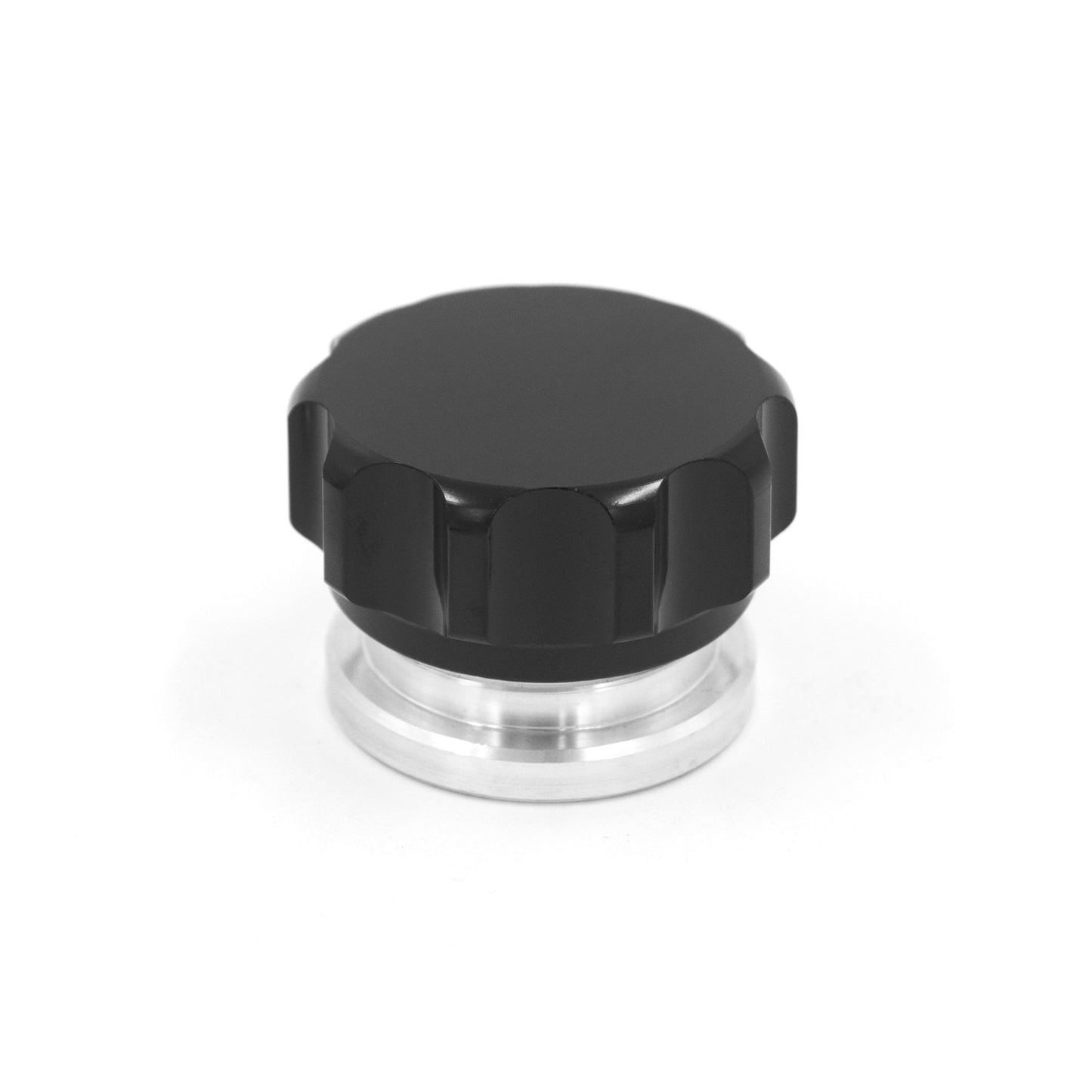

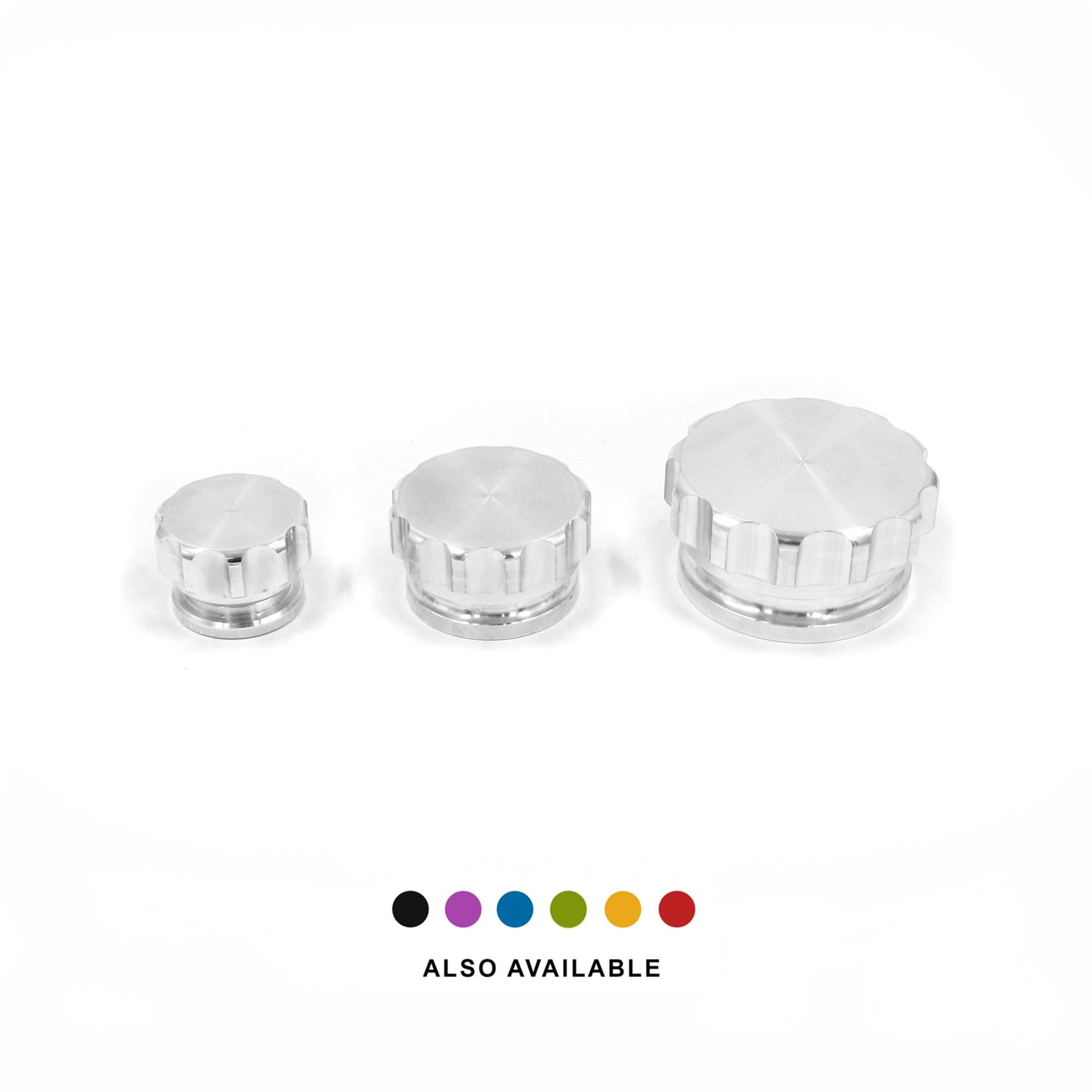

The Weld-On Filler Neck & Cap is available in 3 different sizes and with the option of a stainless steel or aluminium neck.

1" Size

  • Through hole size: 1" (25.4mm)
  • Cap diameter: 44mm
  • Overall height: 29mm
  • Neck weld-on diameter: 34.5mm
  • Captive o-ring in cap.

1.5" Size

  • Through hole size: 1.5" (38.1mm)
  • Cap diameter: 57mm
  • Overall height: 31mm
  • Neck weld-on diameter: 49.5mm
  • Captive sealing o-ring in cap.

2" Size

  • Through hole size: 2" (50.8mm)
  • Cap diameter: 76mm
  • Overall height: 38mm
  • Neck weld-on diameter: 66.5mm
  • Captive sealing o-ring in cap.

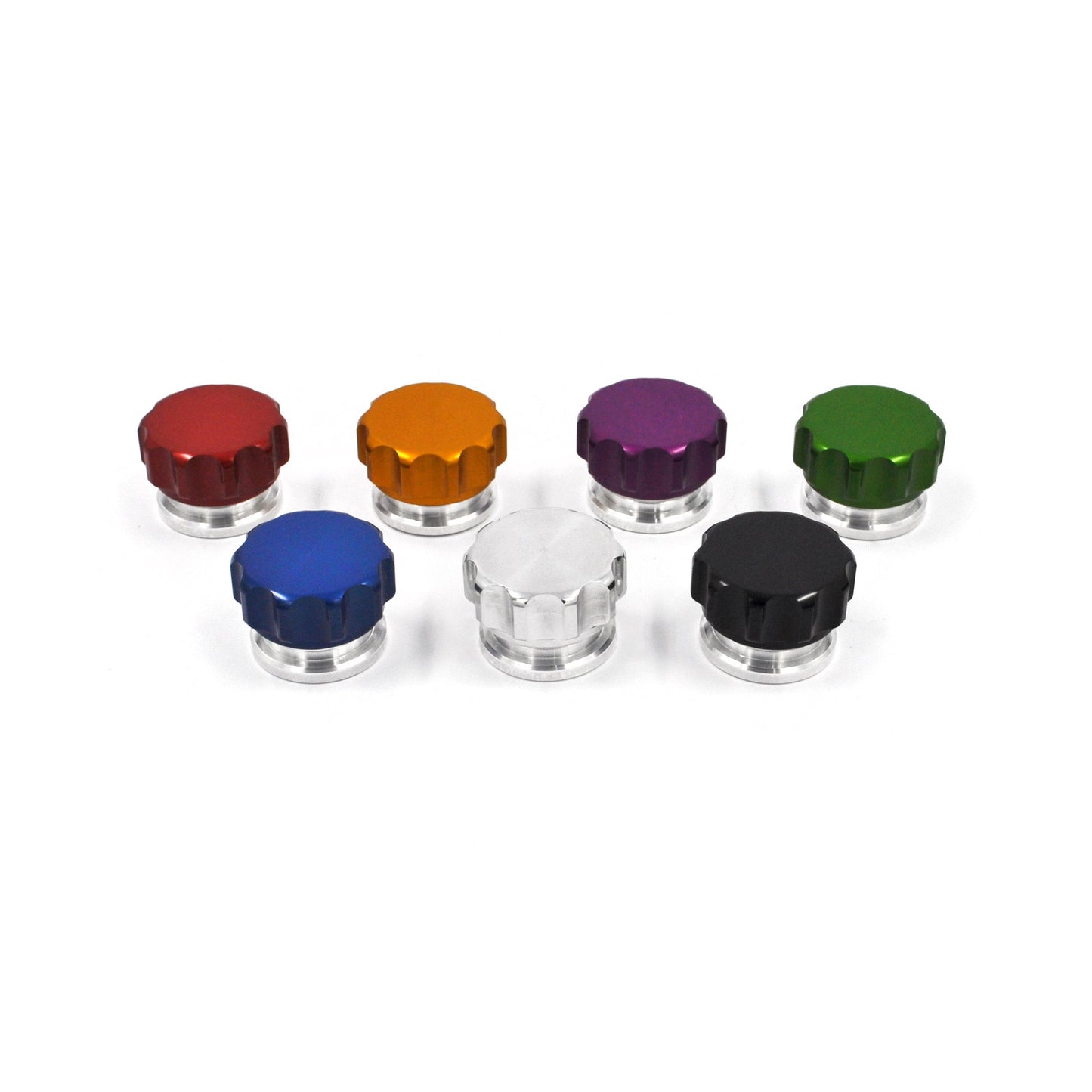

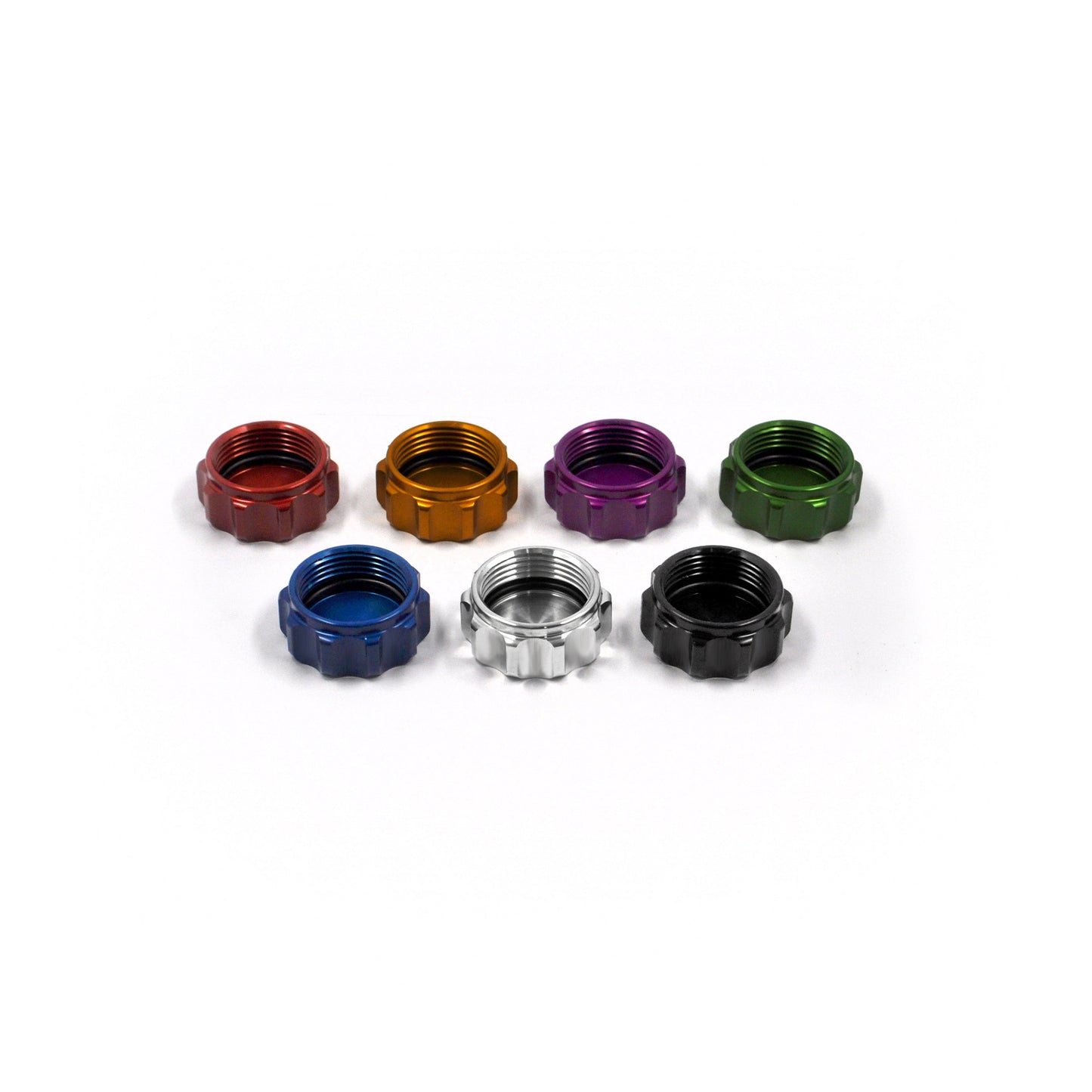

The cap is available in natural aluminium or 6 anodised colours.
